Oki B4500 - Page 142

43502101TH Rev.1 142 /
Oki Data CONFIDENTIAL

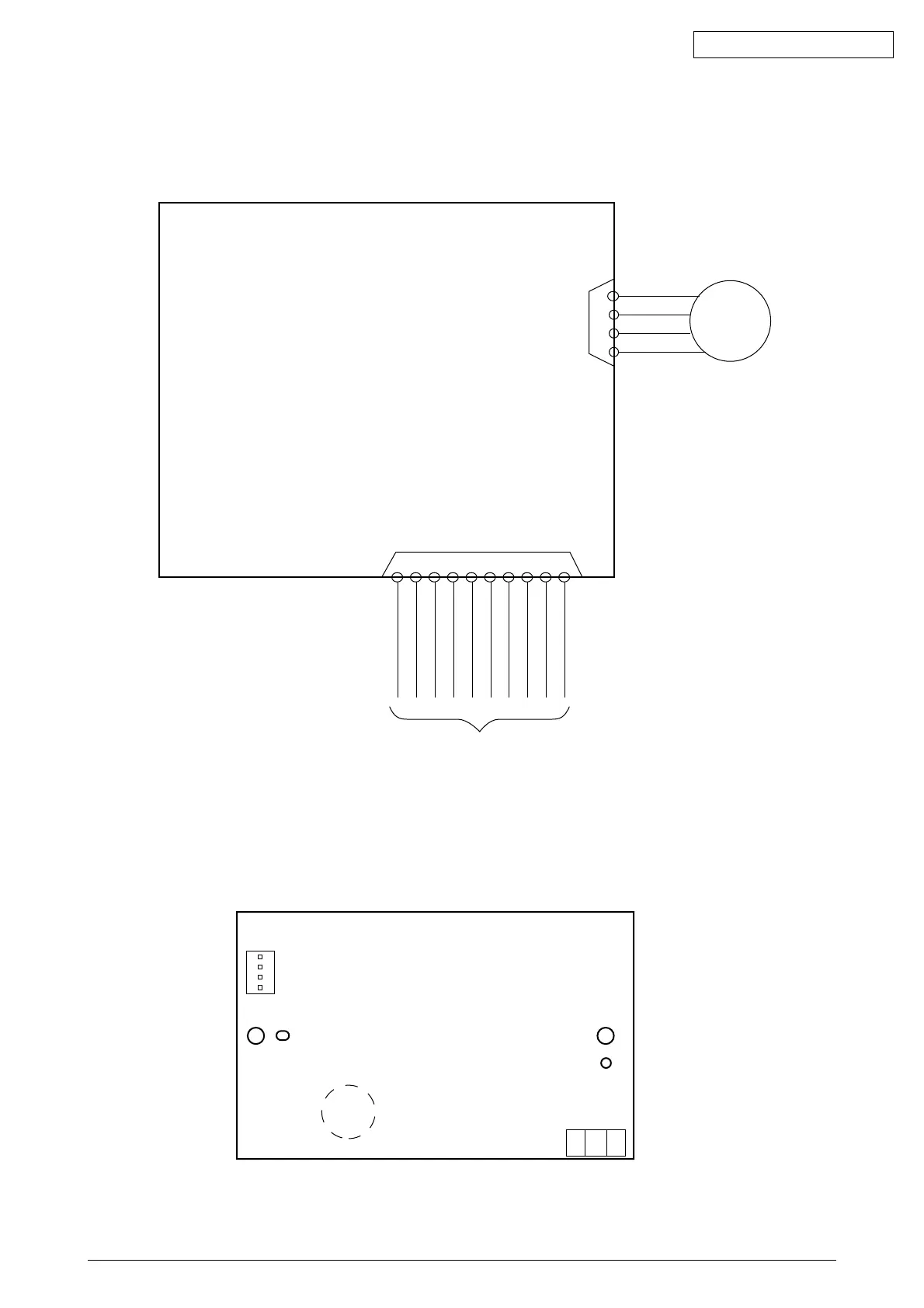

5. CONNECTION DIAGRAM
5.1 Interconnection Diagram
OLEV - 11-PCB
CN3
M
Pulse motor
CN2
To the Printer or High Capacity
Second Paper Feeder
2 M-T3
1 M-T4
4 M-T1
3 M-T2
OPTPSIN-N OPTSCLK-N OPTSD-P OPTSDR-N OVP + 30V OVL + 5V-P FG FG
1 2 3 4 5 6 7 8 9
10
5.2 PCB Layout
OLEV-11-PCB
CN3
CN2
SEN2
