Troubleshooting > 61

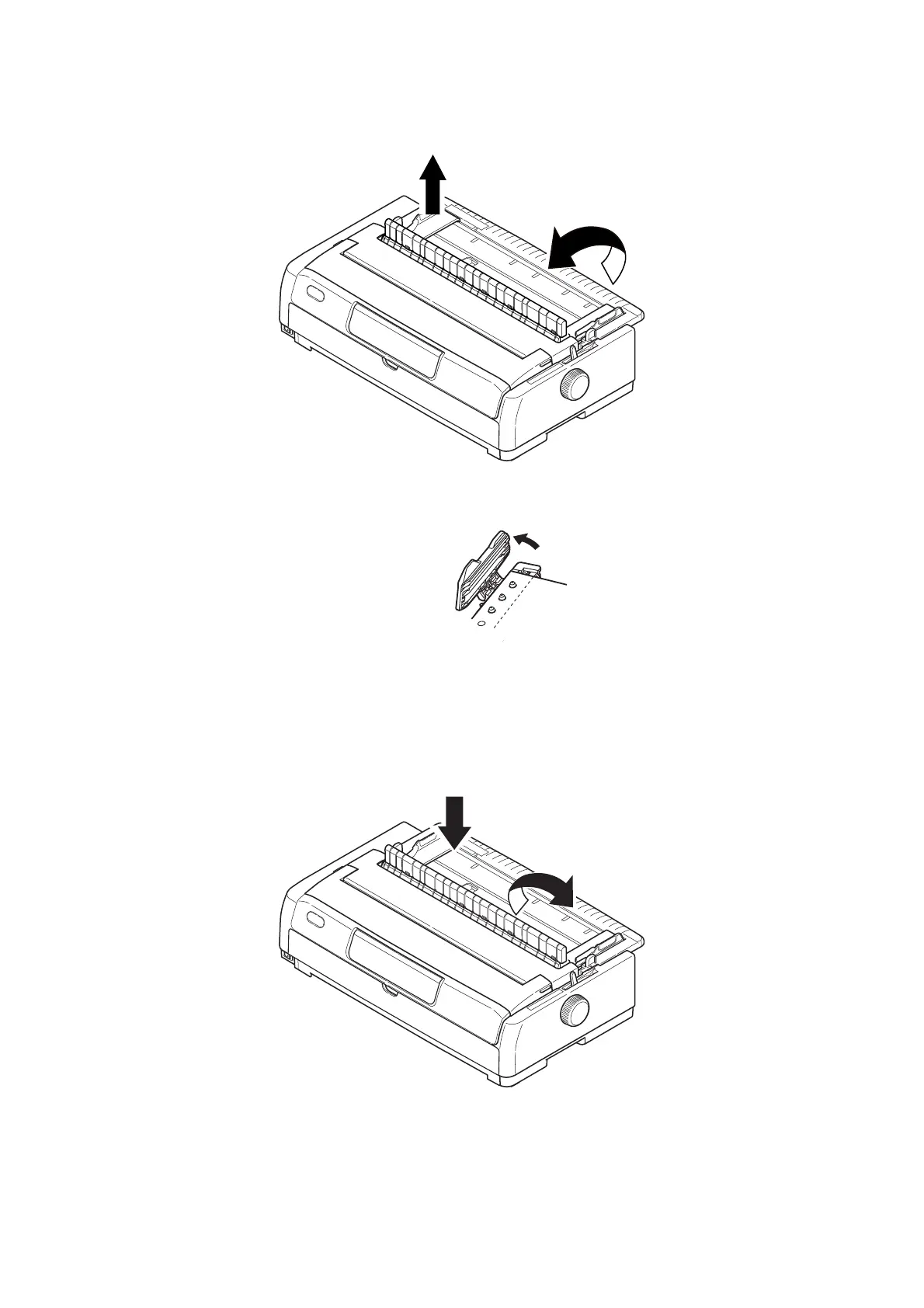

4. Remove the top Paper Tray by holding the tray by the tabs on both sides and pulling
it up from the printer.
5. Raise each Pin Tractor cover and remove the continuous forms from the Pin Tractors.
6. Rotate the platen knob and remove the forms from the front of the printer.
7. If a form fragment remains inside the printer, place two or three forms in a stack on
the Pin Tractors and turn the platen knob to push the fragment out of the printer.
8. When the paper jams are cleared, lower the top Paper Tray and slide it towards the
front of the printer until the marks align.
9. Close the Top Cover.
To Next Page
