Installing Options > 74

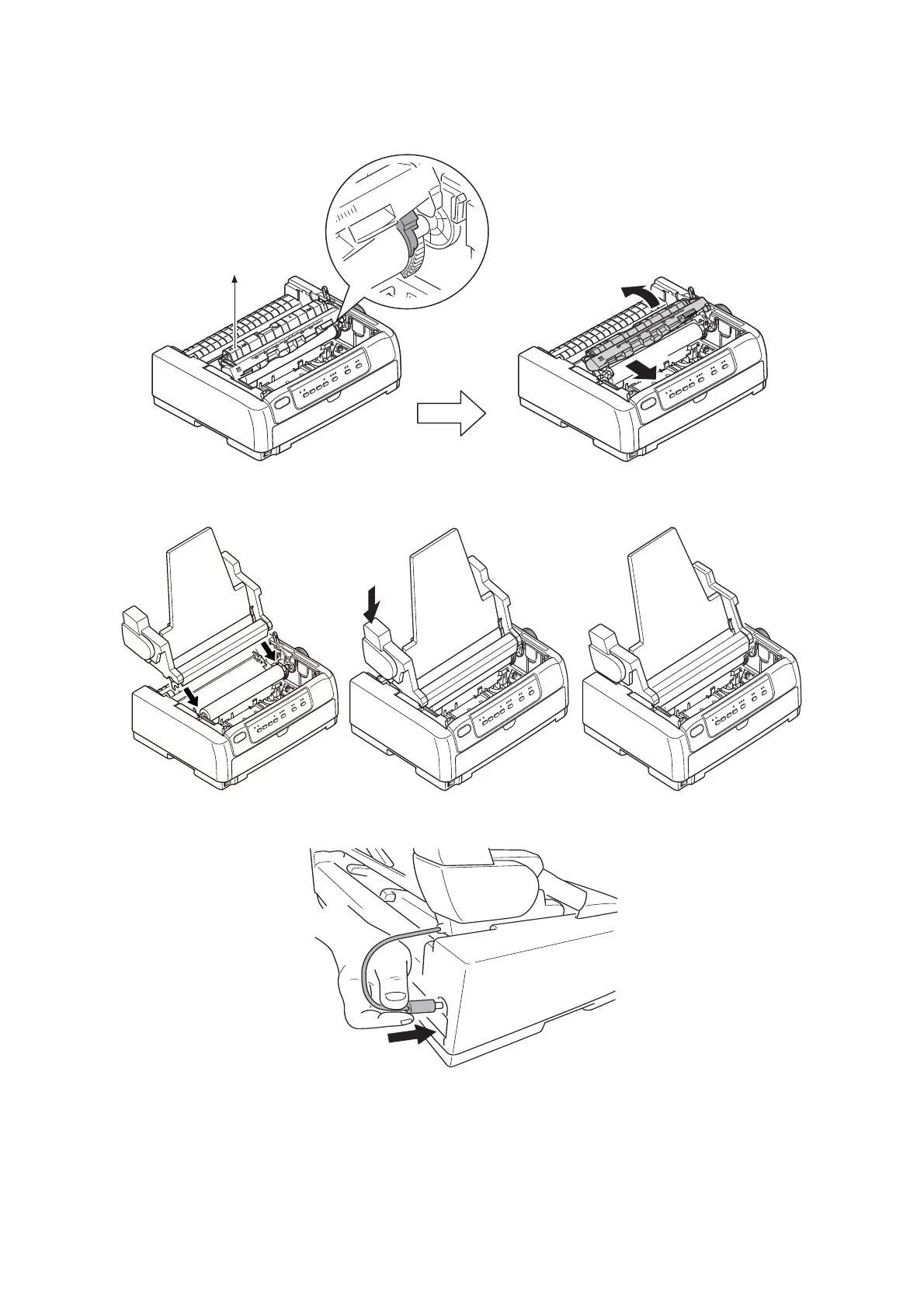

5. Remove the Pull-up Guide assembly (1) by disengaging the latches (2) on both
sides, pulling it forwards (3) and then pulling it up (4).
6. Guide the edge of Cut-sheet feeder on both sides onto the platen and then press
down to lock it in place.
7. Plug in the CSF connector into the CSF port in the rear of printer.
To Next Page
