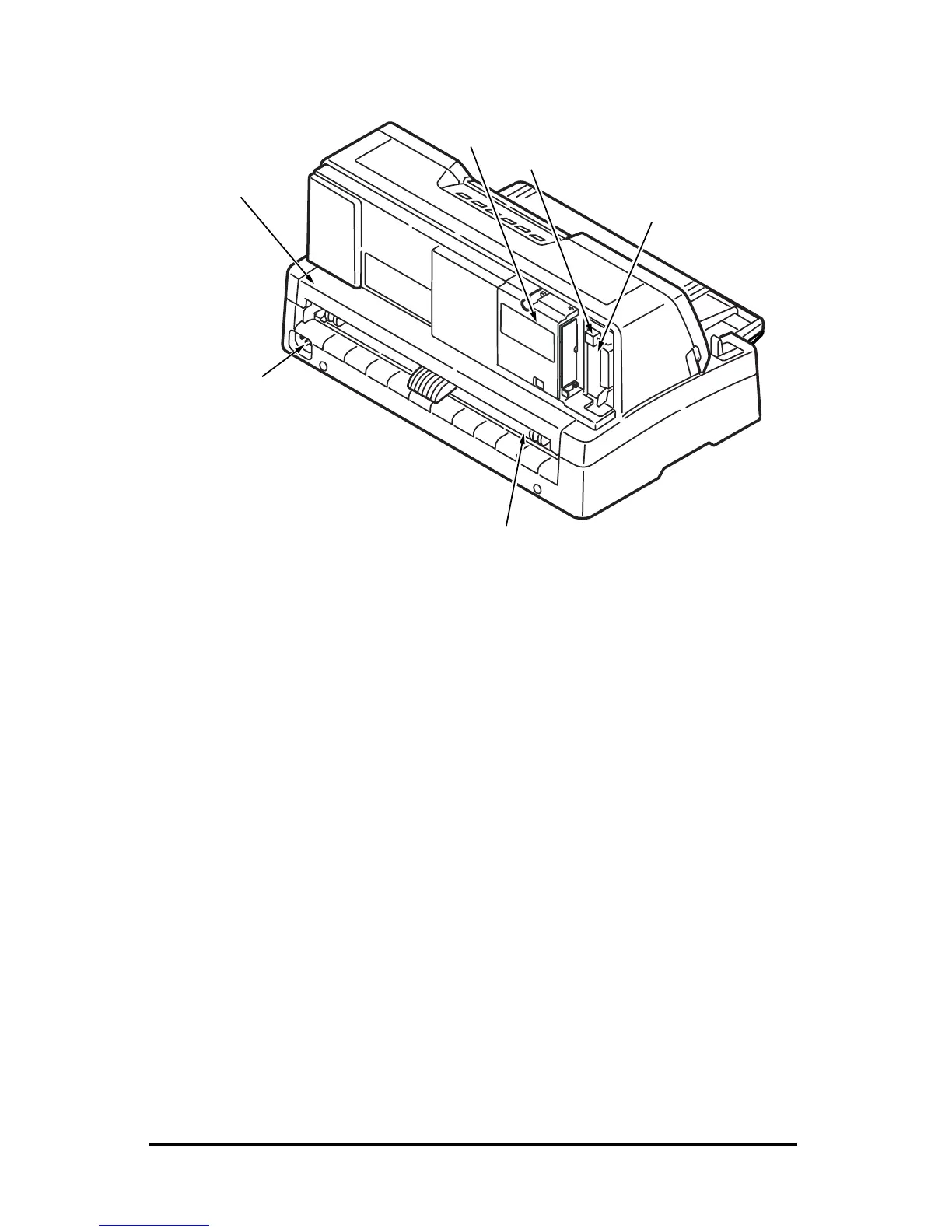

Rear view
1. Optional connector position: connect to optional
accessory serial interface card or 100BASE-TX/10BASE-T
network card.
2. USB connector: connect to USB interface cable.
3. Parallel connector: connect to parallel interface connector.
4. Pin Tractor: to load and feed continuous forms.
5. Power connector: connect to printer power cable.
6. Rear Cover: open and close for access, for example when
loading continuous forms. (To remove completely, see
“Appendix A: Removing the Rear Cover” on page 67.)
1
2
3
4
5
6
