- 103 -
Replacing Consumables and Maintenance Units
4
4. Maintenance

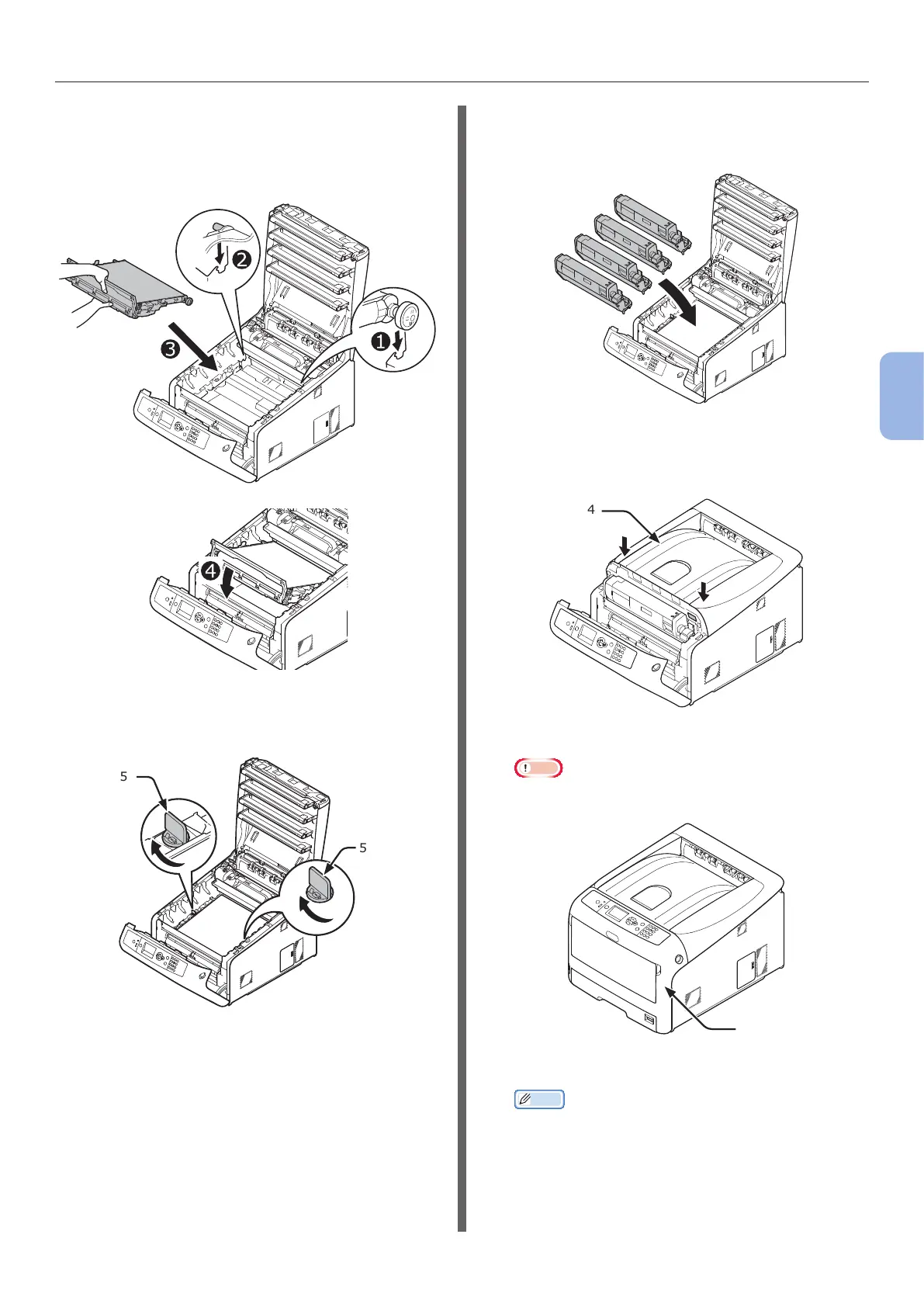

9 Hold the handle of a new belt unit with
one hand and support lower part with
other hand. Place the belt unit into the
printer.
10 Turn the blue locks (5) on each side of
the belt unit in direction of the arrow.
5
5
11 Return all the four image drums to the
printer.
12 Close the output tray (4) by pushing the
both sides of the cover rmly.
4
13 Close the front cover (2).
Note
● The front cover cannot be closed if the output tray is
not closed securely.
2
14 Please recycle belt unit.
Memo
● If you must dispose of a belt unit, put it in a
plastic bag or similar container and dispose of it in
accordance with your municipality’s ordinances or
guidelines.
