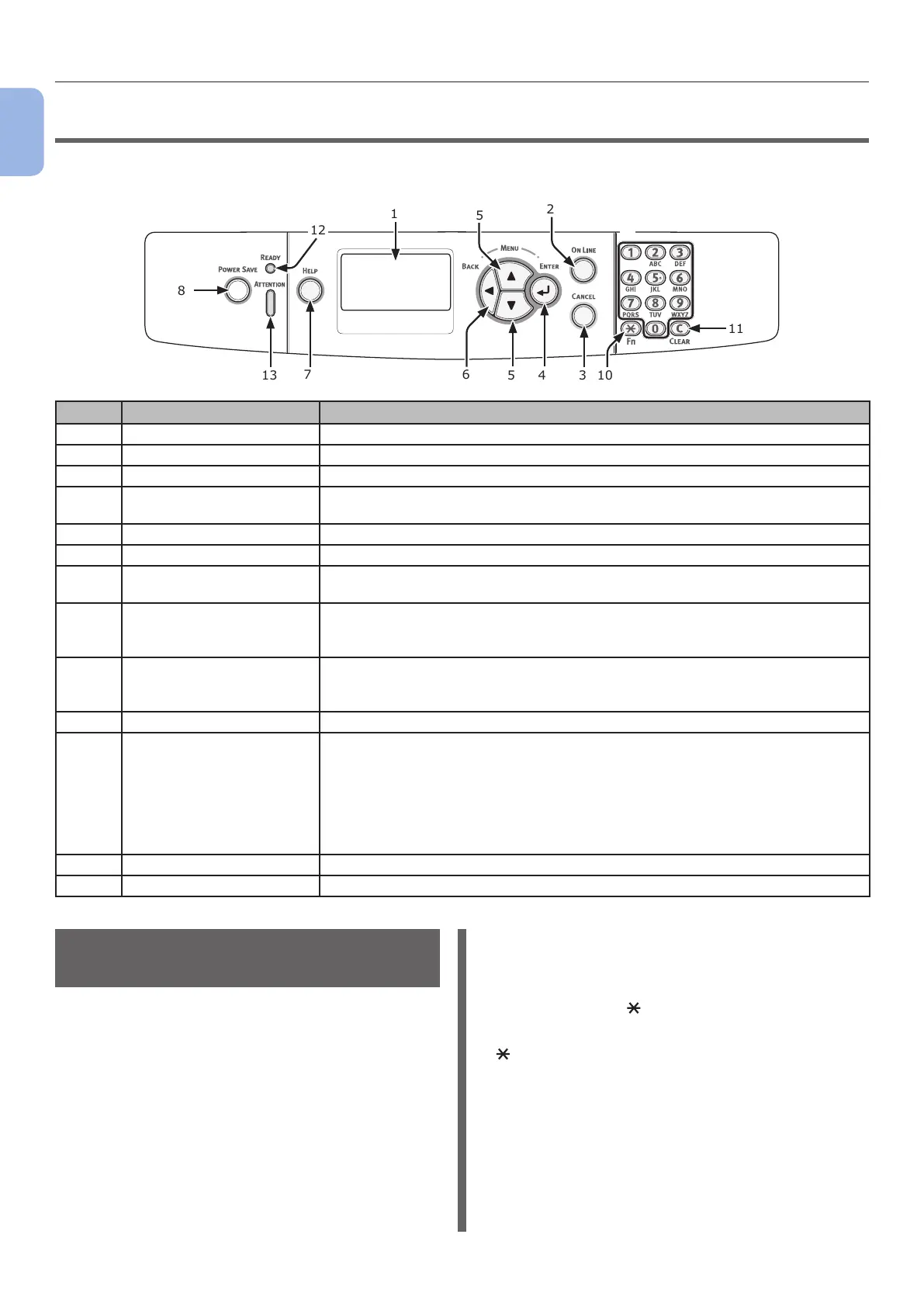

Operator Panel
1
1. Setup
●● Operator Panel
This section explains the names and functions of components on the operator panel and how to enter
text.
1
3
4
5
5
6
7
8
12
13
10
11
9
2
No. Name Function
1 Display screen Displays operating instructions and the status of the printer.
2 <ON LINE> button Switches between on line and off line modes.
3 <CANCEL> button Cancels the current print immediately.
4 <ENTER> button ● Displays the menu screen.
● Conrms the highlighted item.
5 <SCROLL> button Selects the menu or scrolls the screen.
6 <BACK> button Returns to the previous screen.
7 <HELP> button Displays the help screen. To close, press the <HELP> button, <BACK>
button, or <CANCEL> button.
8 <POWER SAVE> button ● Enters or exits the power saving mode.
● Exits the deep sleep mode.
Lights up green in the power save mode and blinks green in the deep sleep mode.
9 Numeric Keypad ● Enters numbers.
● Enters alphabetical characters and symbols.
A password can be entered only with numeric keypad.
10 <Fn> key Displays the equipment setting menu screen with a shortcut function.
11 <CLEAR> key Executes the following actions according to the entered items when pressed
or held down.
● Minimizes a setting value.
● Enters zero for a setting value.
● Deletes a character.
● Cancels a selected item.
Returns to the previous settings. Not available when entering an IP address.
12 <READY> indicator Lights up green in on line mode and turns off in off line mode.
13 <ATTENTION> indicator Lights up or blinks orange when an error occurs in the device.
How to Use the Numeric
Keypad
Use to enter numbers and characters.
Each time a numeric key is pressed, entered
numbers or characters are changed cyclically in
the following order:
<1>: 1
<2>: 2
→ a → b → c → A → B → C → 2
<3>: 3
→ d → e → f → D → E → F → 3
<4>: 4
→ g → h → i → G → H → I → 4
<5>: 5
→ j → k → l → J → K → L → 5
<6>: 6
→ m → n → o → M → N → O → 6
<7>: 7
→ p → q → r → s → P → Q → R → S → 7
<8>: 8
→ t → u → v → T → U → V → 8
<9>: 9
→ w → x → y → z → W → X → Y → Z → 9
<0>: 0
The functions of <
> and <C> keys are the
followings:
<
>: Function key (Available only when the
standby screen is displayed.)
<C>: Deletes a character when entering a
password.
To enter “abc” for example,
press <2>
→ <2> → <ENTER> button → <2>
→ <2> → <2> → <ENTER> button → <2> →
<2> → <2> → <2> → <ENTER> button.
