- 99 -
Replacing Consumables and Maintenance Units
4
4. Maintenance
● There is one toner cartridge for each color on the image
drum.

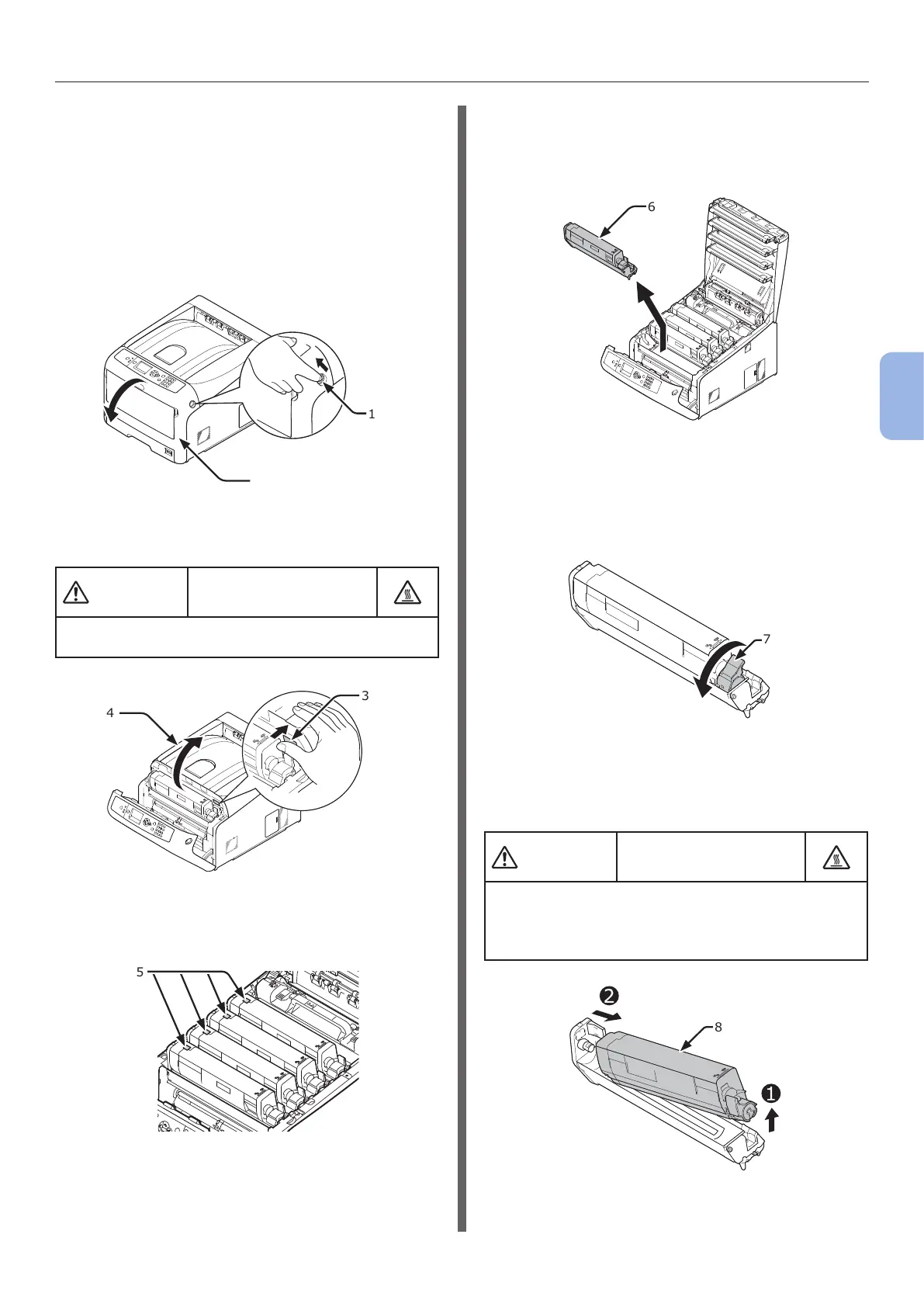

1 Prepare a new image drum.
2 Insert your nger into the recess on
the right side of the printer and pull the
front cover open lever (1) to open the
front cover (2) forward.
1
2
3 Press the output tray open button (3)
and open the output tray (4).
CAUTION
Possible to get
burned.
● The fuser unit is extremely hot. Do not touch
it.
3
4
4 Identify an empty toner cartridge by its
label color (5).
5
5 Remove the image drum (6) from the
printer in the direction of the arrow and
place the image drum on a at surface.
6
6 Turn the right blue lever (7) of the toner
cartridge forward while pressing the top
of the toner cartridge to unlock.
7
7 Lift the toner cartridge (8) from the
right side, and remove it from the image
drum.
Possible to get
burned.
● Do not throw a used image drum and toner
cartridge in the re. They may explode, and
the toner inside may y off and cause getting
burned.
8
To Next Page
