Use 2 fixing screws 4x25 mm for fixing the case support.

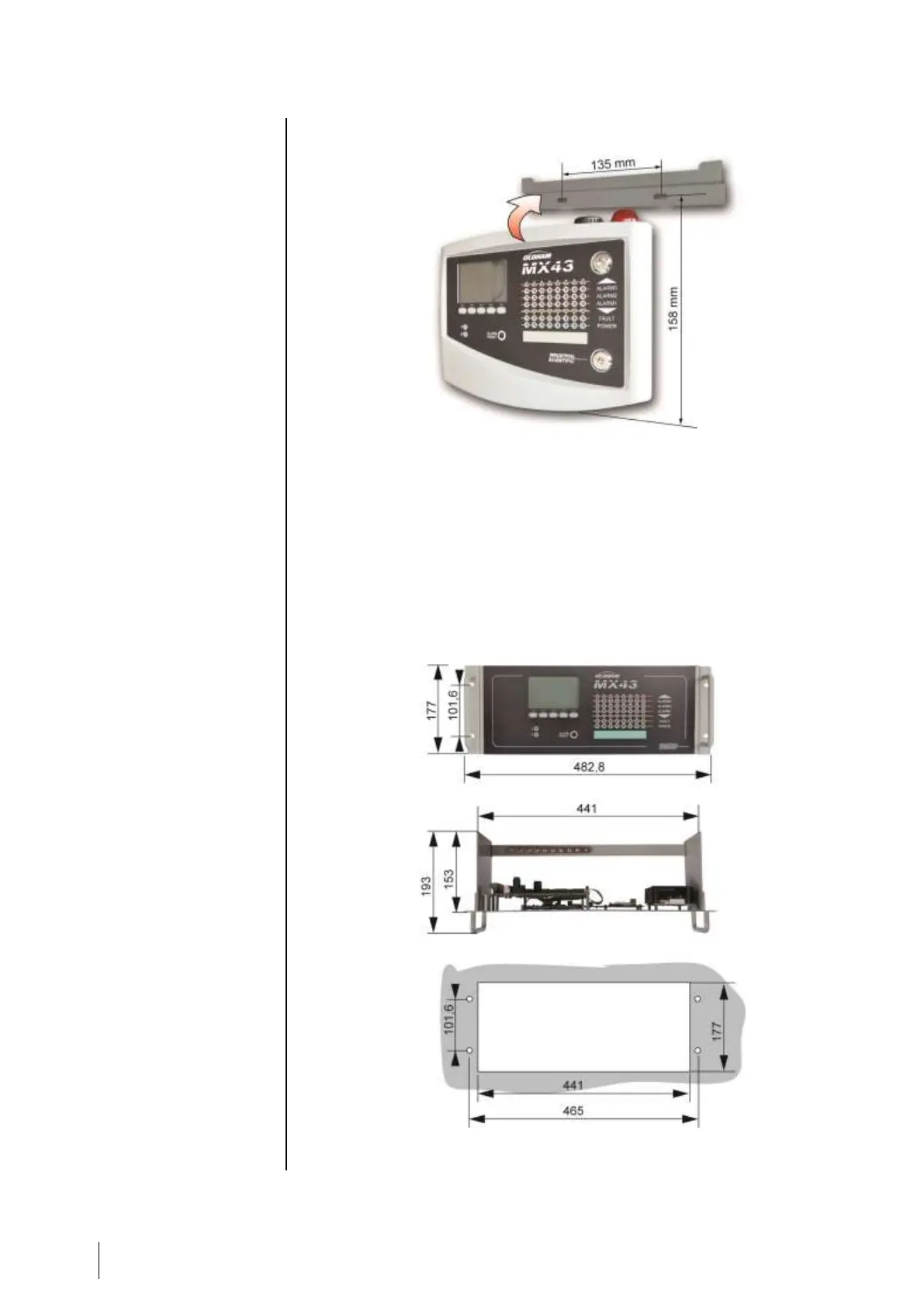

Figure 5: Fixing of the wall- mounted version MX 43 with a support plate.
Setting-up of a 19” Rack – 4 U
Access to the unit must be ensured in order to facilitate adjustments and
monitoring, and likewise in the back in order to allow easy access to the
different connectors at the rear.
This rack is built into a bay or a standard 19” cabinet. You should leave ½ U
(22 mm) of space above and below the rack so as to assure the proper
ventilation of the MX 43.
Figure 6: Size of the rack-mounted version.
