2 General Introduction
5
The MX 43 Controller
Versions
The MX 43 controller is available in 3 versions:
Wall-mounted version 4 lines.
Wall-mounted version 8 lines.
Rack-mounted version 8 lines.

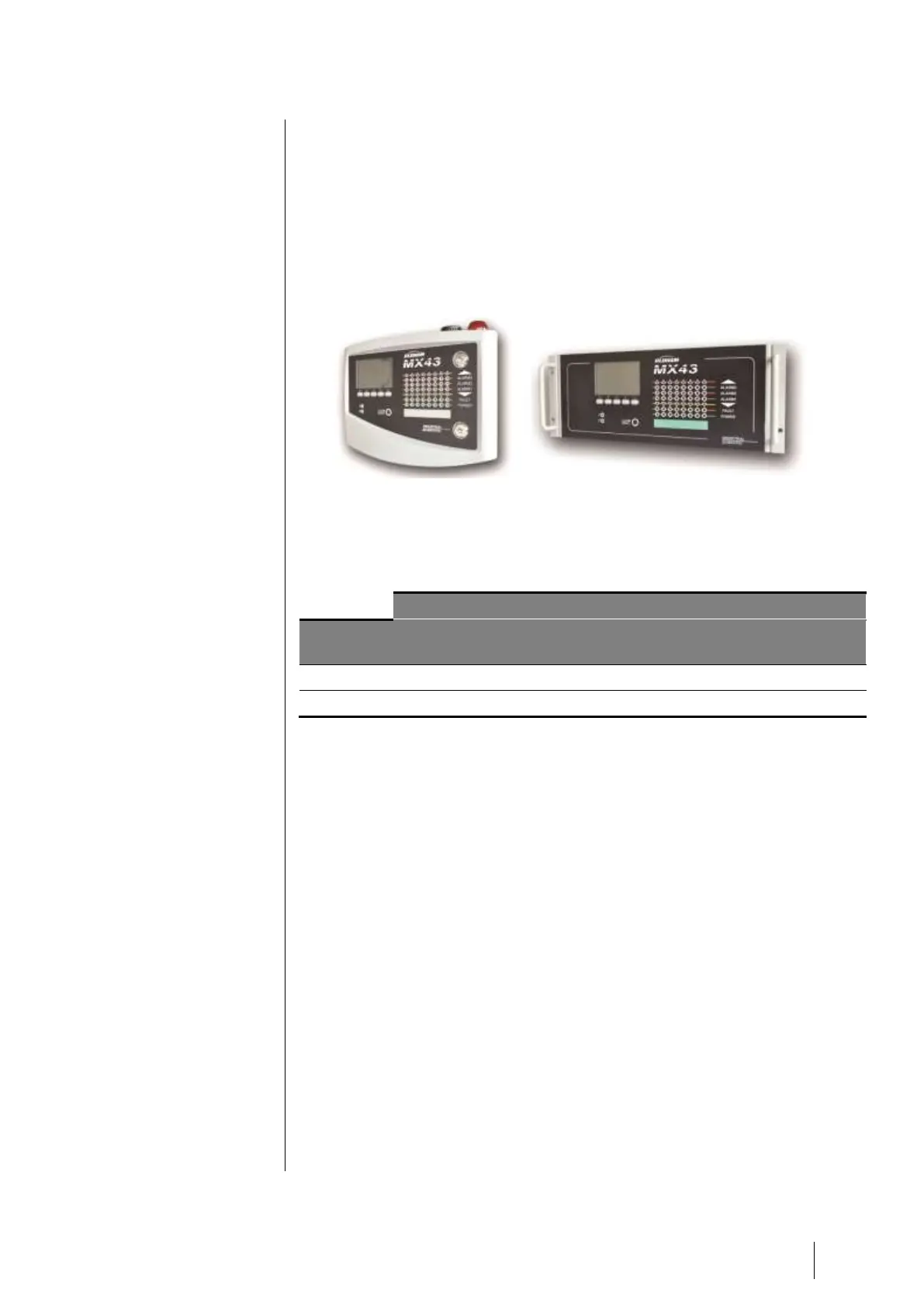

Figure 3: Wall-mounted version MX 43 (left illustration) or rack- mounted version (right
illustration).
The following table details the different configurations that are possible,
depending on the type of unit. On each line, it is possible to connect a 4-20mA
analog detector or one, or several, digitally addressable modules.
Maximum number of
Versions
Modules (1)
Detectors
External
relays
Logic inputs
Analog
ouputs
4 lines
16
16
8
16
16
8 lines
32
32
24
32
32
(1) Gas detectors, 4 or 8-analog output modules, and 16-logic input modules.
Table 1: Summary of the maximum capacity as per the controller type.
The COM 43 Application
This is intended for setting the MX 43 parameters from a Windows
®
-operated
PC. The operation and use of this application is covered in a special training
course.
