Chapter 5 │Digital Modules
This chapter presents the digital modules that may be installed on the MX 43
lines.
The details of module connection are given on page 33.
Digital modules are configured via the COM 43 application.
Addressable Digital Modules
These modules are connected on each of the available 4 or 8 lines of the MX
43, up to a limit of 32 modules on a version of 8-lines or 16 modules on a 4-
line version. The following table regroups the available modules:

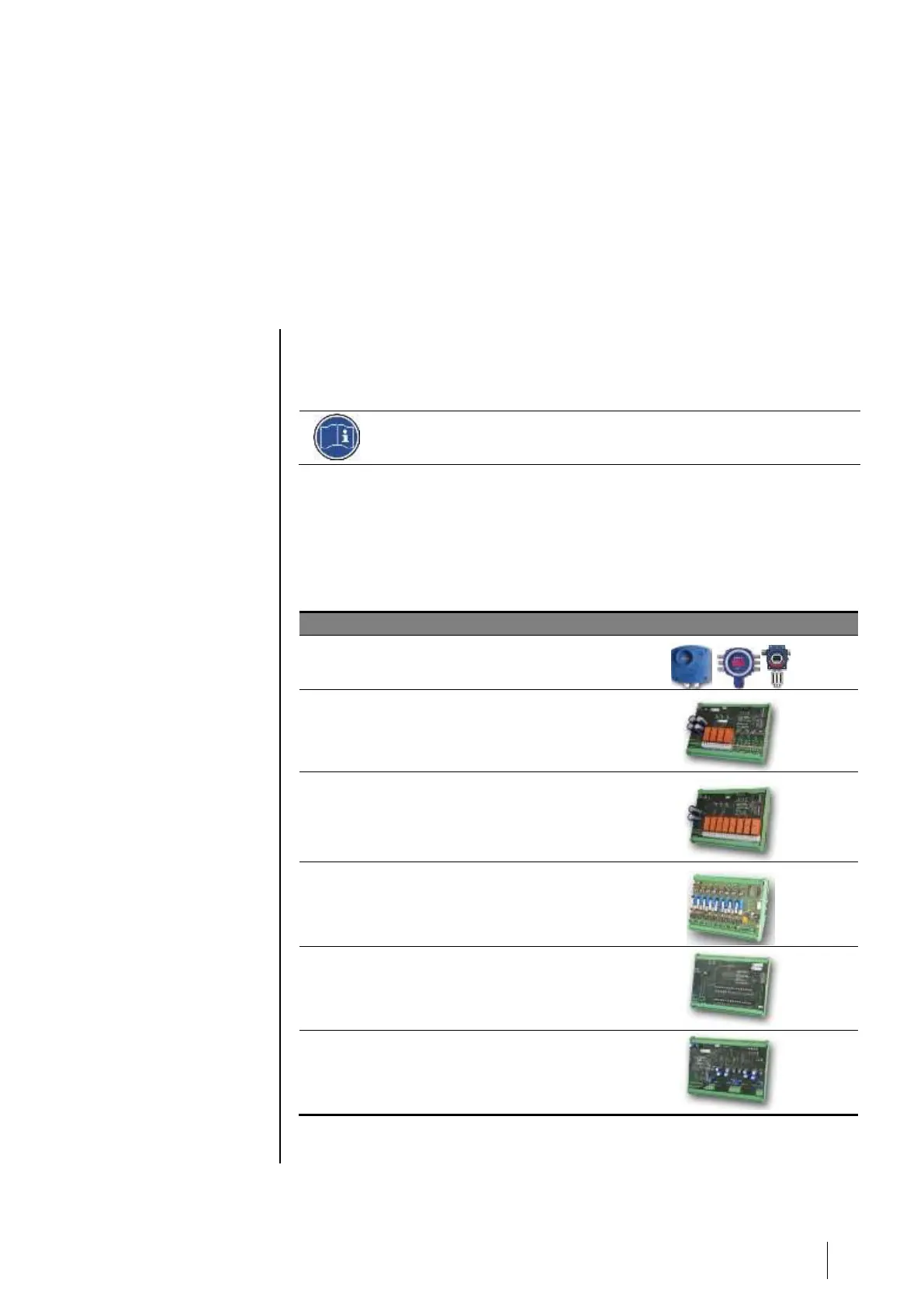

Type of module
Illustration
Page
Digital gas detector (OLCT 10N, OLCT 80, iTrans 2).
-
Output module, 4 relays with 2 additional logic inputs
26
Output module, 8 relays with 2 additional logic inputs
26
Module with 8 analog inputs
29
Module with 16 logic inputs
28
Module with 4 analog 4-20mA outputs and 2 additional logic
inputs
30
Table 4: Addressable digital modules.
