Chapter 3 │Mechanical Installation
This chapter details the mechanical installation of MX 43 and the digital
modules.
MX 43 Controller
Location
The MX 43 shall be installed in premises without explosive atmospheres,
away from direct exposure to sunlight, and protected from humidity, dust, and
temperature variations. It shall preferably be located in a monitored
environment (guardhouse, control room, or instrument room, for example).
Attachment of the wall enclosure
Access to the controller must be ensured in the front in order to facilitate
adjustments, monitoring, and cabling. A space of 400 mm is necessary in front
of the MX 43 for opening the door.
(*) rear fixing legs included.

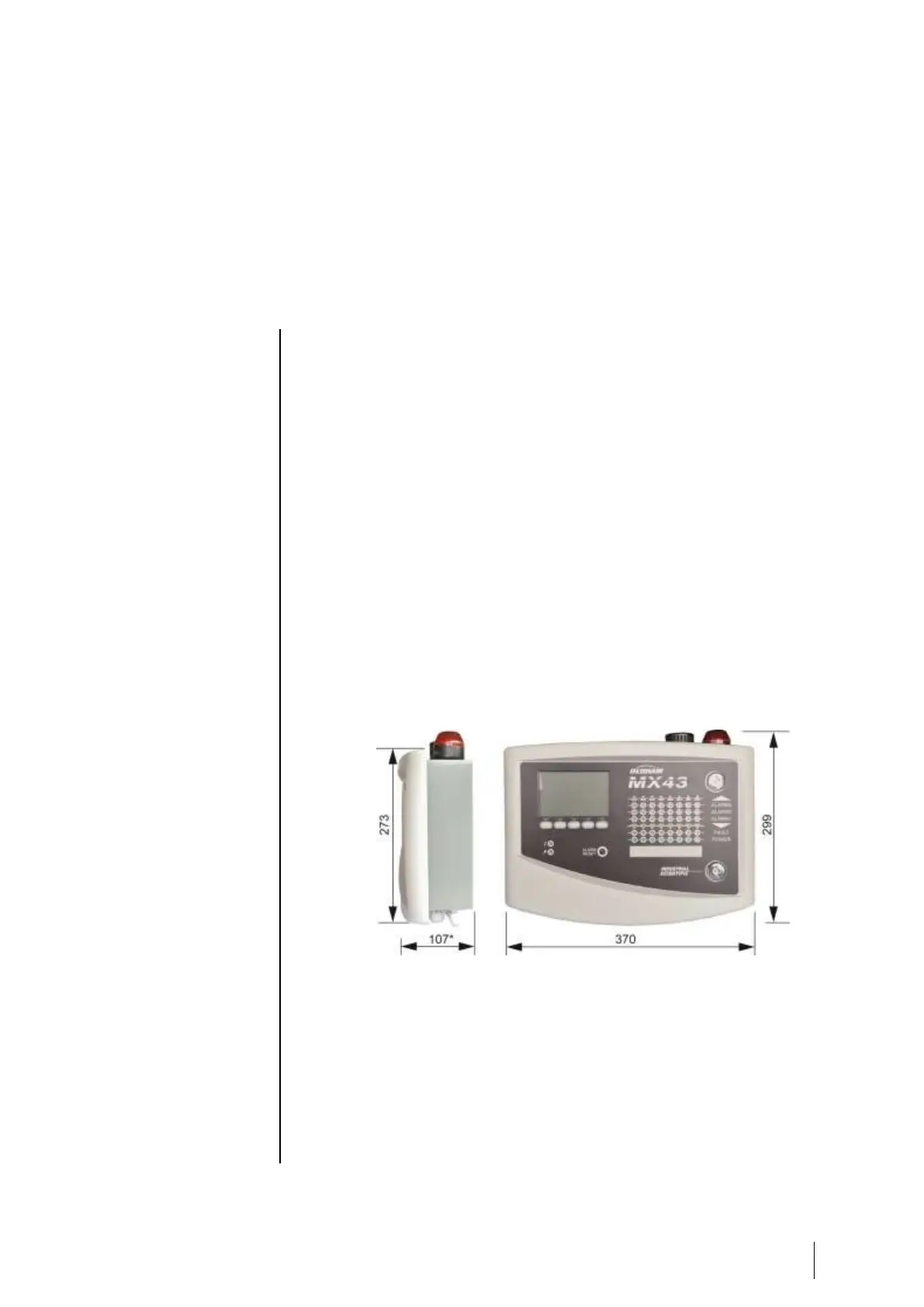

Figure 4: Size of the wall-mounted version.
