MX 43
User Manual
Configuration
Configured via the COM 43 application.
16-Logic Input Module
Function
This digital module allows the
monitoring of 1 to 16 logic inputs by the
MX 43.
In the 8-line version, the controller can
manage a maximum of 32 logic inputs
distributed, for example, either on 32
logic input modules with one input
declared per module, or on 2 modules
with 16 logic inputs each.
In the 4-line version, the controller can
manage a maximum of 16 logic inputs.

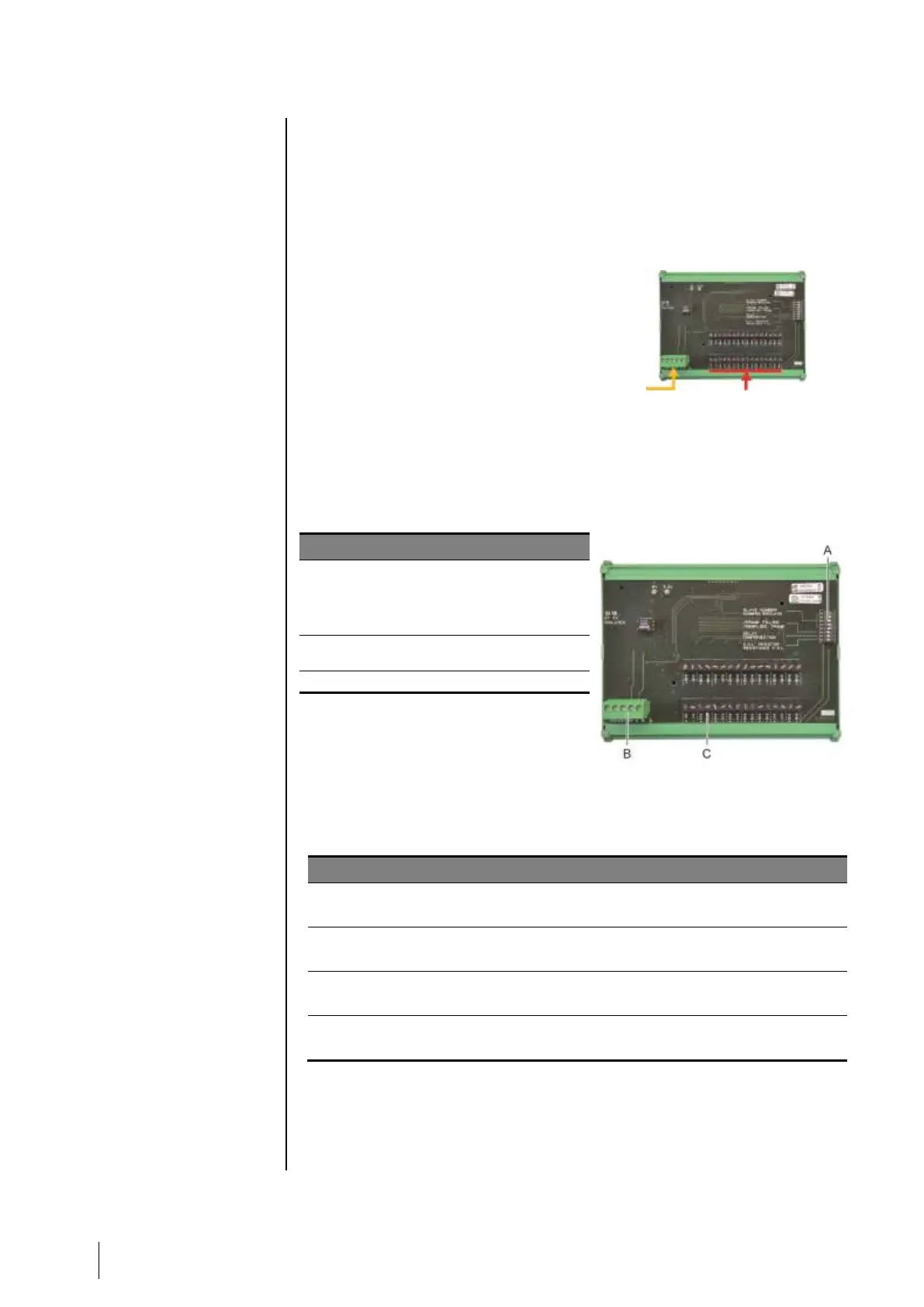

Figure 21: Module with 16 logic inputs.
Introduction
Ref.
Description
A.
Module configuration switches (digital
address, delay, and end of line
resistor).
B.
Power supply and digital network
connector.
C.
Logic inputs 1 to 16.
Figure 22: Module of 16 logic inputs.
A – Module configuration switches
These switches are set according to the following table:
Term
Symbol
Slave number
Numéro esclave
See details in the paragraph Module Address on page 24.
Frame filling
Remplissage de trame
Factory settings. Do not modify.
Delay
Temporisation
Factory settings. Do not modify.
E.O.L Resistor
Résistance F.D.L.
See details in paragraph End of line Resistor, on page 25.
Table 7: Configuration switches of the Logic input module.
16 logic inputs
Digital line
4 wires
