MX 43
User Manual
Display in normal mode
Measurement Display

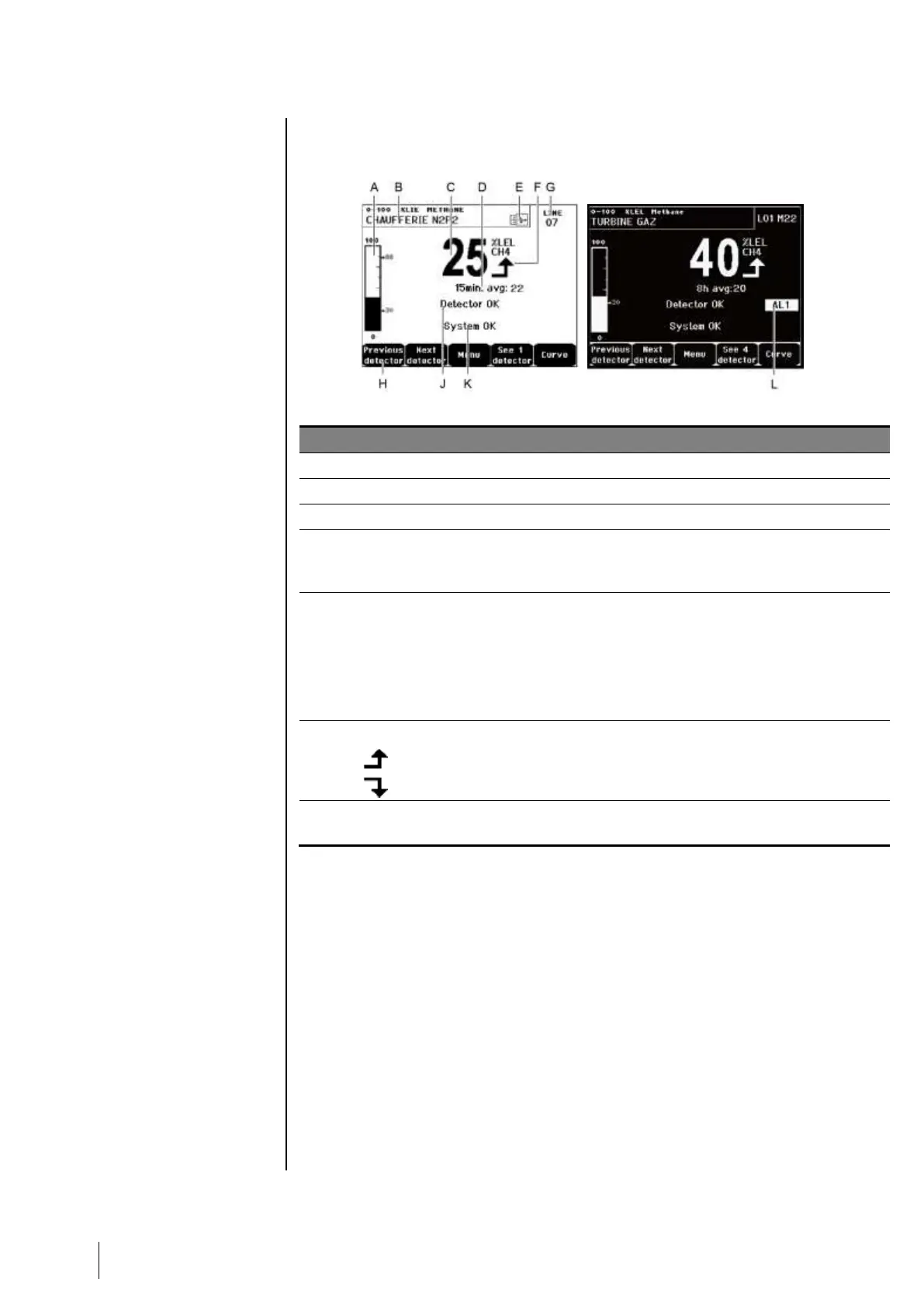

Figure 44: Example of the measurement display in normal mode and in inverse video.
Ref.
Significance
A.
Barograph with an indication of alarm limits.
B.
Measurement range, gas detected, and detector language.
C.
Value of the current measurement with the unit and gas detected.
D.
Value of the average measurement if this function has been activated via
the COM 43 application and depending on the display settings (see
Display Settings, on page 44).
E.
USB Key symbol; see paragraph 6. USB key on page 52:
■ Absent when the USB key is absent, and/or data recording has not
started (menu 6. USB Key > 1. Configuration > Data Logging: OFF).
■ Solid when the USB key is present and data recording has started
(menu 6. USB Key > 1. Configuration > Data Logging: ON).
■ Flashing when the key is absent and Data Logging option is set to ON.
F.
Indicator of measurement trend
Ascending tendency
Descending tendency
G.
Address of digital detector on a digital line or channel number for a analog
detector
