Oldham MX 43 User Manual

8 – Main Part Numbers
43
H.
Function keys.
■ Previous detector: Display of measurements of previous detector;
scanning of all the detectors on all the lines.
■ Next detector: Display of measurements of next detector; scanning of
all the detectors on all the lines.
■ Menu: Display of main menu See paragraph "Main menu" on page 43.
■ See 4 Detectors: Display of a group of 4 detectors (detector tag,
barograph with indication of alarms, value of current measurement with
unit and gas detected). Use the Page down or Page up keys to display
all of the next 4 detectors; passage to the next zone is automatic.
■ See 8 Detectors: Display of a group of 8 detectors (detector tag, value
of current measurement with unit and gas detected). Other buttons
similar to the selection. See 4 detectors.
■ See 16 Detectors: Display of a group of 16 detectors (detector tag,
value of current measurement with unit and gas detected). Other buttons
similar to the selection. See 4 detectors.
■ See 1 detector: Display in normal mode (Figure 44).
■ Curve: Display of the measurement curves of the last 4 hours (Figure
45). The  and  keys allow cursor displacement through the time
scale. The vertical dotted line displays the concentration and time stamp
of the point being considered. Escape: return to display of values.
J.
Information on the detector status.
K.
Information on the MX 43 status.
L.
Zone of indication of activated alarms with blinking threshold display. The
screen changes to inverse video (Figure 44, screen on the right).

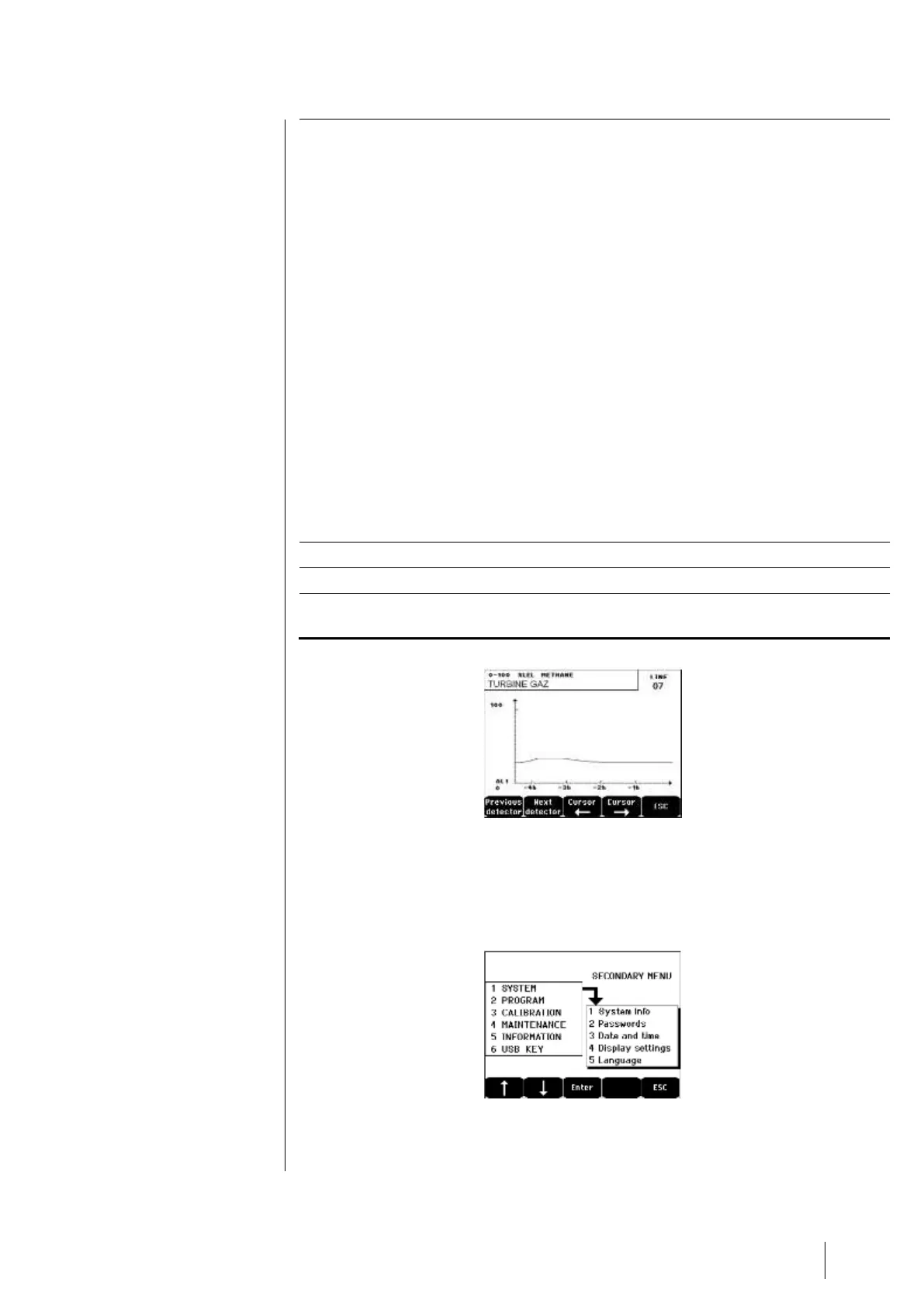

Figure 45: Example of a curve display screen.
Main Menu
This displays all the management menus of MX 43.
Figure 46: Main menu.
