6 – Wiring and Electrical Connections
39
8-Analog Input Module

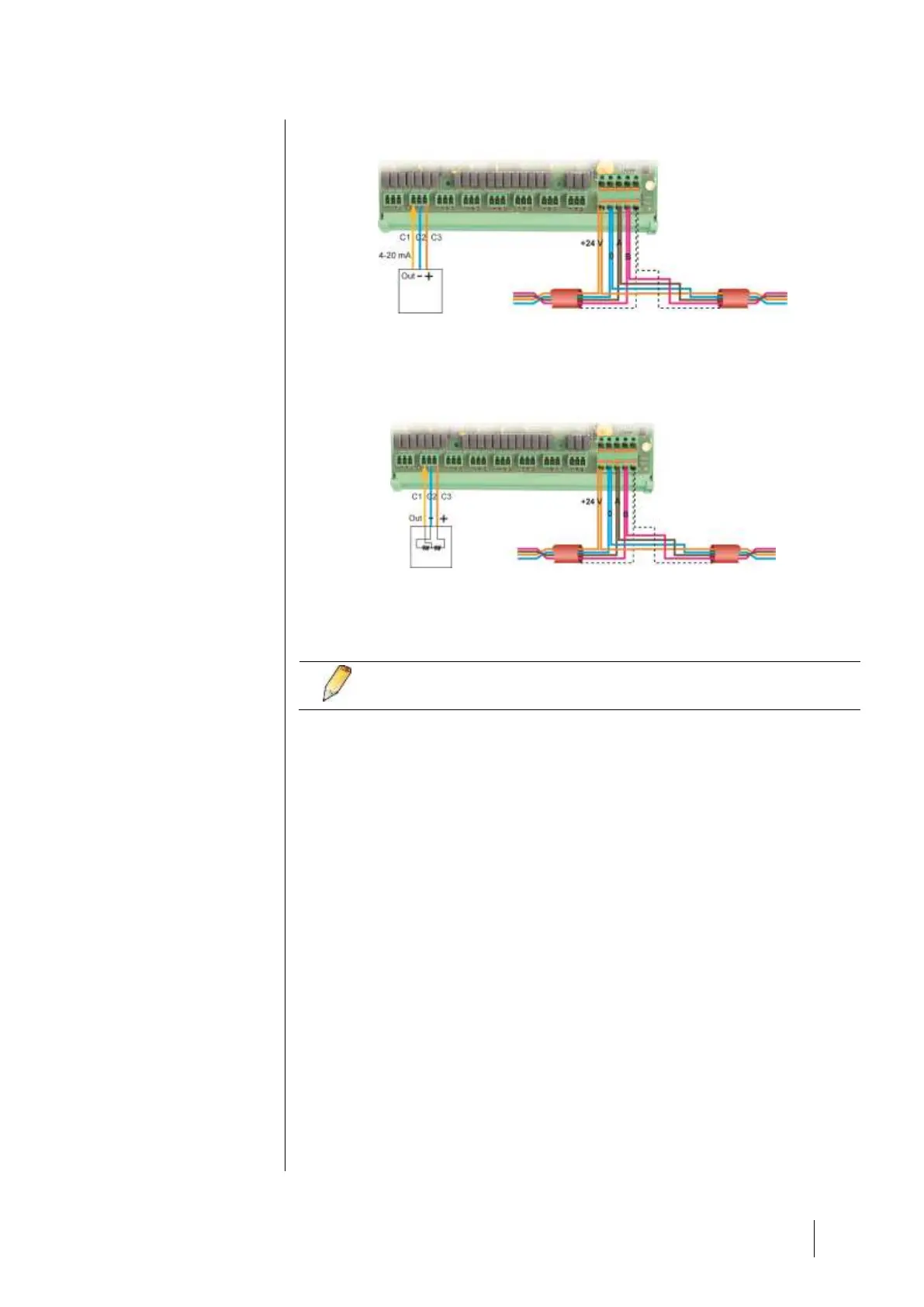

Figure 40: Connections of 8-analog input modules for 1 4-20mA detector with 3 wires
(explosive gas, toxicity detection).
Figure 41: 8-analog input module connections for an explosive gas detection detector of
the Wheatstone Bridge CEX 300 or OLC type.
If this module is the last of the line, do not forget to set the jumper
marked EOL Resistor to Closed position.
To next module
To MX 43
or previous module
Wheatstone bridge type
detector
To next module
To MX 43
or previous module
