Instrument Panel Cluster

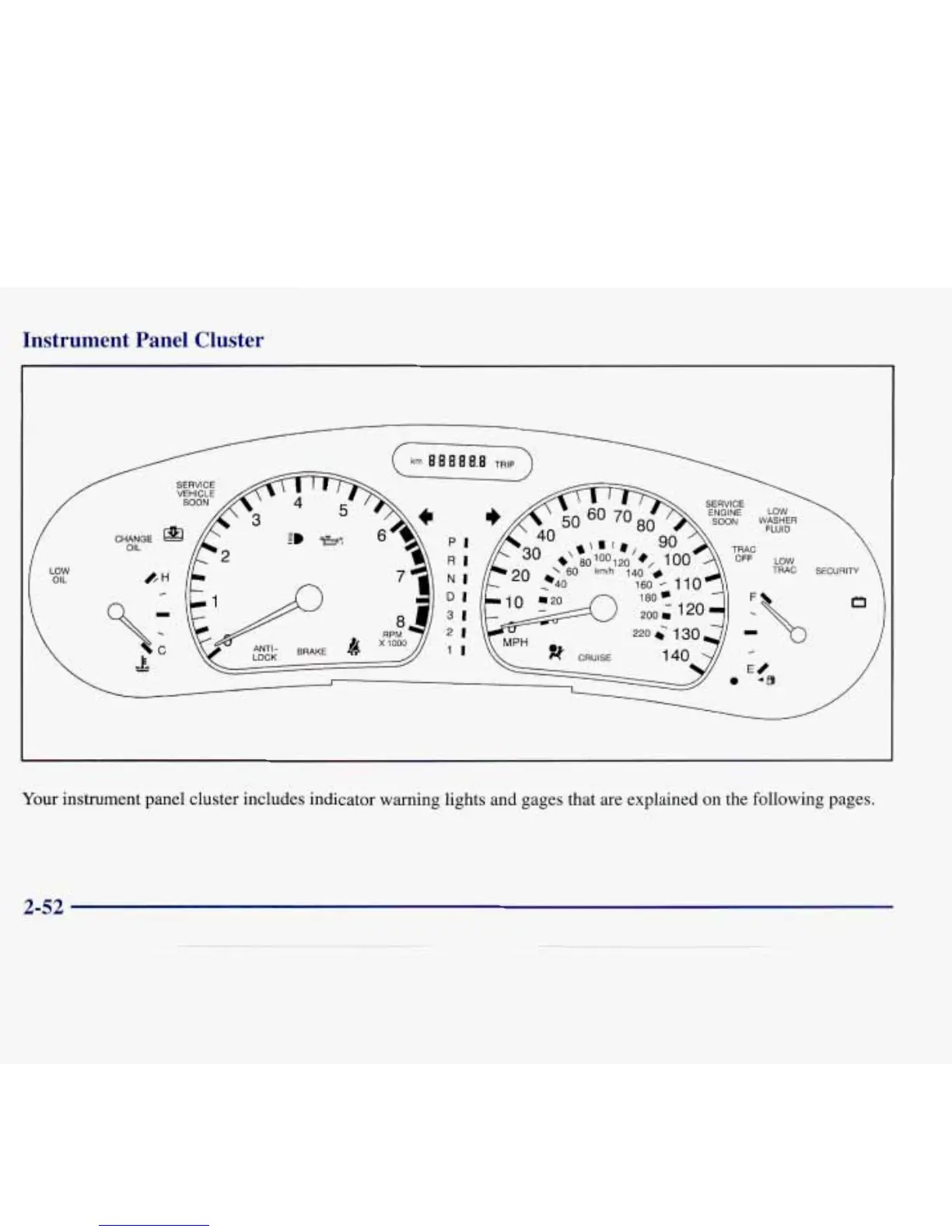

Your instrument panel cluster includes indicator warning lights and gages that are explained on the following pages.
