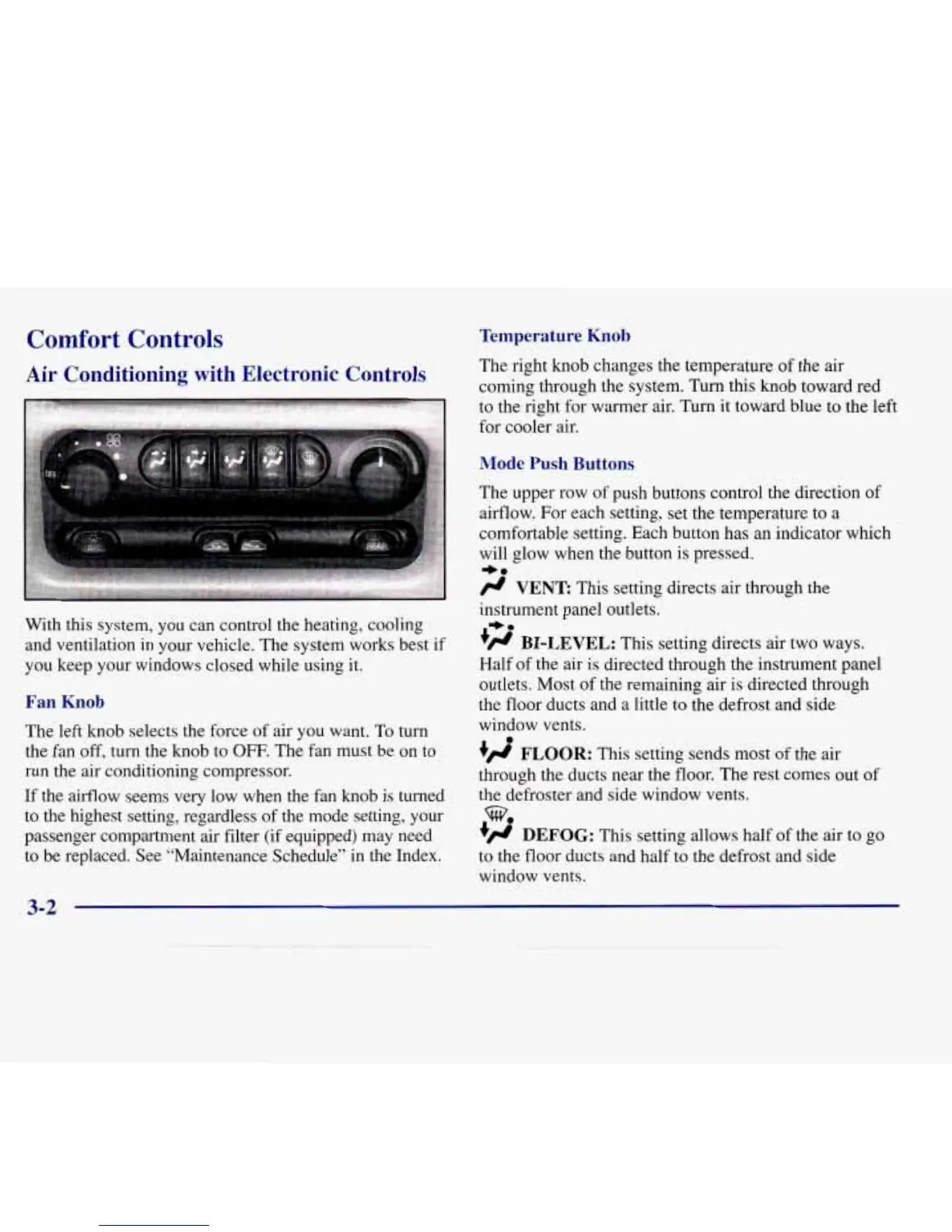

Comfort
Cor:
A
-01s
Temperature Knob
Air Conditioning with Electronic Controls
With this system, you can control the heating, cooling
and ventilation in your vehicle. The system works best if
you keep your windows closed while using it.
Fan Knob
The left knob selects the force of air you want. To
turn
the fan off, turn the knob to
OFF.
The fan must be on to
run the air conditioning compressor.
If the airflow seems very low when the fan knob is turned
to the highest setting, regardless of the mode setting, your
passenger compartment air filter (if equipped) may need
to
be replaced. See “Maintenance Schedule”
in
the Index.
The right knob changes the temperature
of
the air
coming through the system. Turn this knob toward red
to
the
right for warmer air. Turn it toward blue to the left
for cooler air.
Mode
Push
Buttons
The upper row of push buttons control the direction of
airflow. For each setting, set the temperature to a
comfortable setting. Each button has an indicator which
will glow when the button is pressed.
-bo
/J
VENT:
This setting directs air through
the
instrument panel outlets.
+’
BI-LEVEL:
This setting directs air two ways.
Half of the air is directed through the instrument panel
outlets. Most
of
the remaining air
is
directed through
the floor ducts and a little
to
the defrost and side
window vents.
+’
FLOOR:
This setting sends most of the air
through the ducts near the floor. The rest comes out
of
the defroster and side window vents.
+@
DEFOG:
This setting allows half of the air to go
to the floor ducts and half to the defrost and side
window vents.
+e
e
we
3-2
