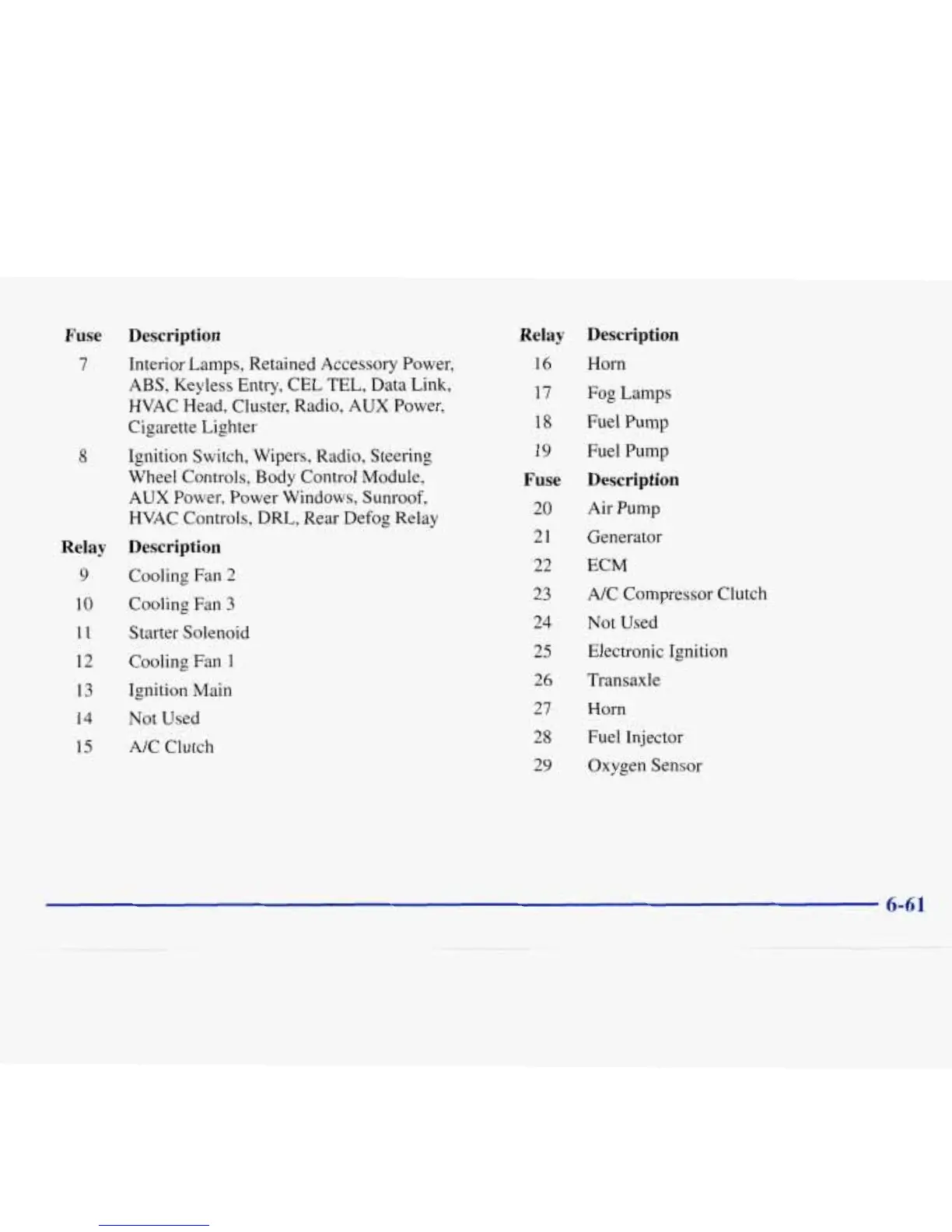

Fuse Description
7
Interior Lamps, Retained Accessory Power,
ABS, Keyless Entry, CEL TEL, Data Link,
HVAC Head, Cluster, Radio, AUX Power,
Cigarette Lighter
8
Ignition Switch, Wipers, Radio, Steering
Wheel Controls, Body Control Module,
AUX Power, Power Windows, Sunroof,
HVAC Controls, DRL, Rear Defog Relay
Relay Description
9
Cooling Fan
2
10
Cooling
Fan
3
11
Starter Solenoid
12
Cooling Fan
1
13
Ignition Main
14
Not
Used
15
A/C Clutch
Relay
16
17
18
19
Fuse
20
21
22
23
24
25
26
27
28
29
Description
Horn
Fog Lamps
Fuel Pump
Fuel
Pump
Description
Air Pump
Generator
ECM
A/C Compressor Clutch
Not
Used
Electronic Ignition
Transaxle
Horn
Fuel Injector
Oxygen Sensor
To Next Page
