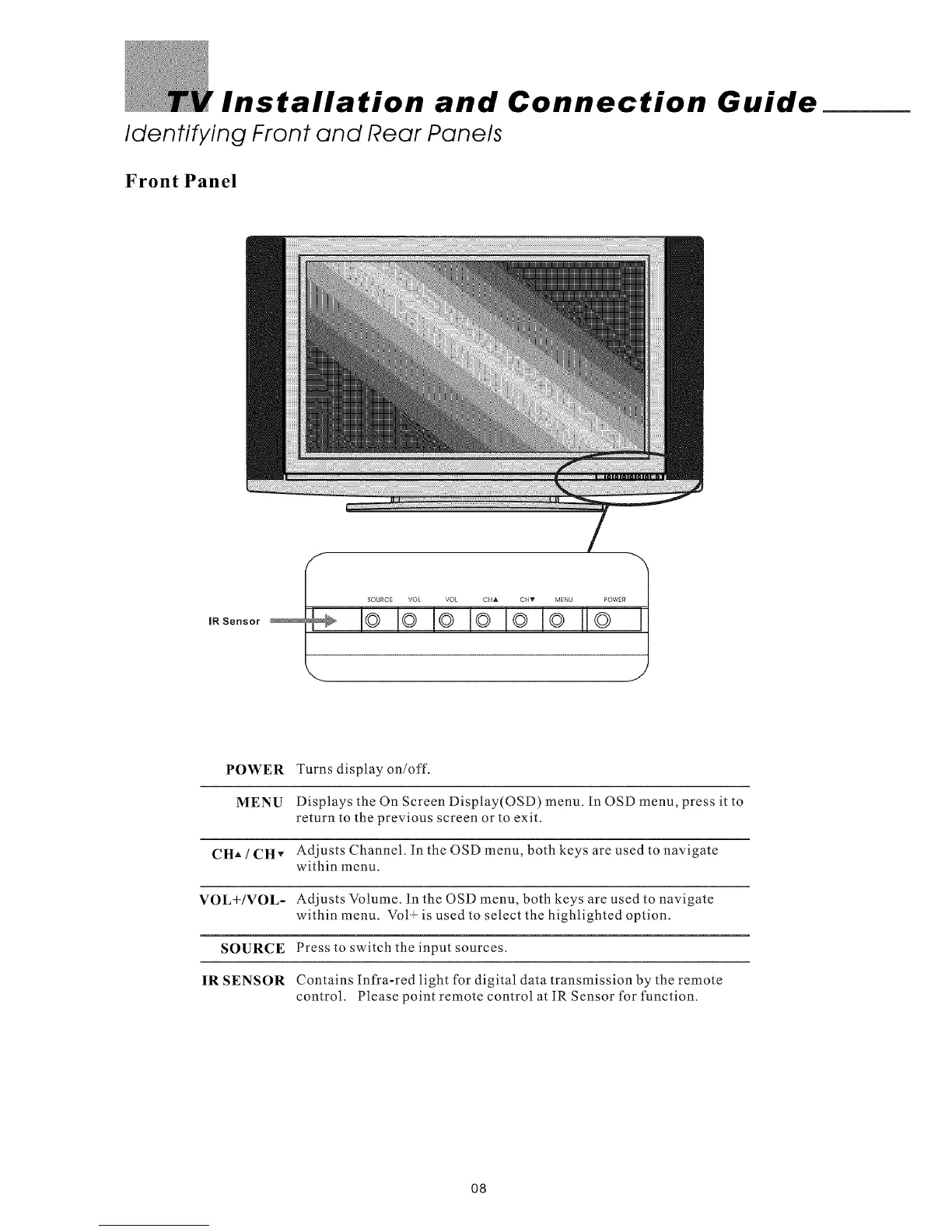

Installation and Connection Guide
Identifying Front and Rear Panels
Front Panel
POWER
MENU
CHA / CHv
VOL+/VOL-
SOURCE
IR SENSOR
Turns display on/off.
Displays the On Screen Display(OSD) menu. in OSD menu, press it to
return to the previous screen or to exit.
Adjusts Channel. In the OSD menu, both keys are used to navigate
within menu.
Adjusts Volume. in the OSD menu, both keys are used to navigate
within menu. Vol _ is used to select the highlighted option.
Press to switch the input sources.
Contains Infra-red light for digital data transmission by the remote
control. Please point remote control at IR Sensor for function.
O8
