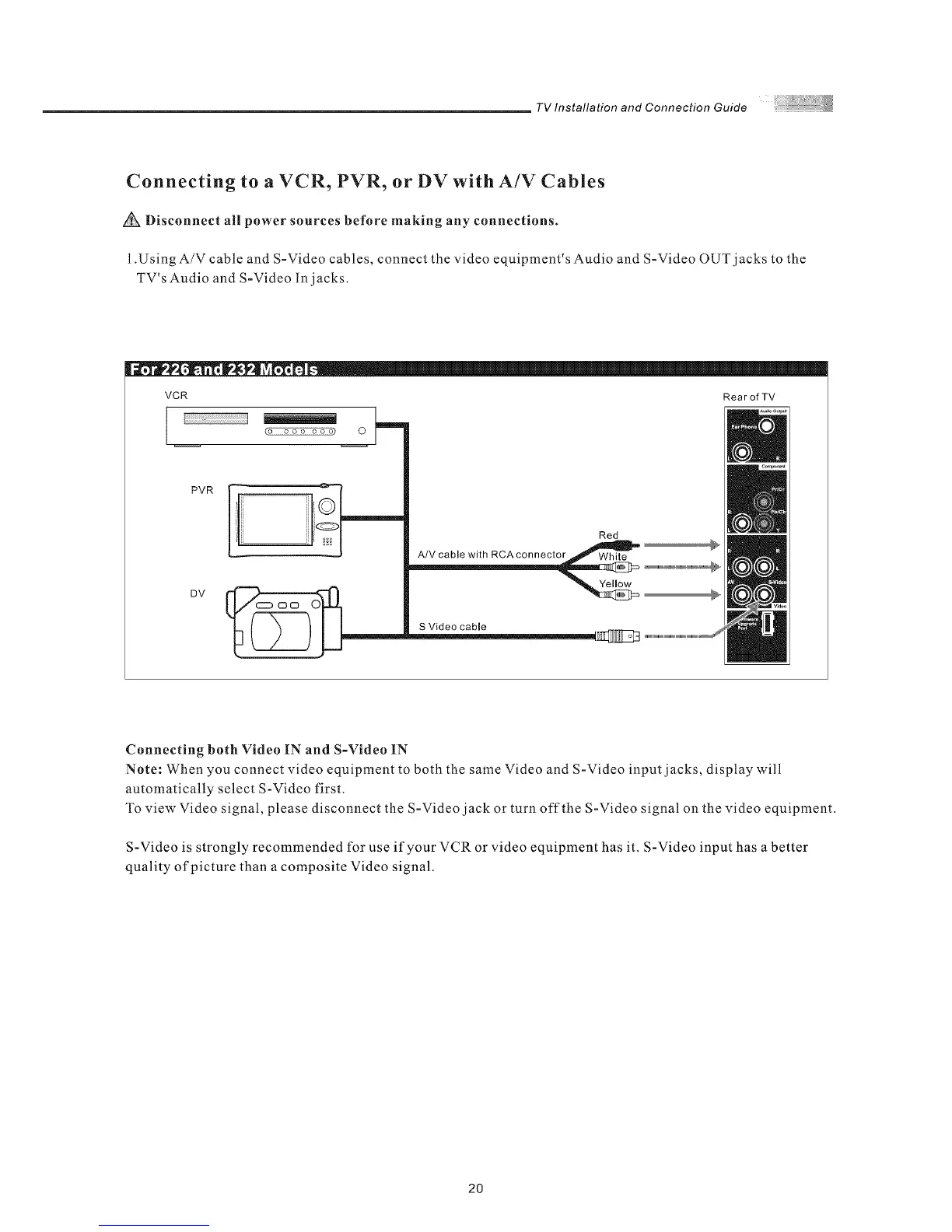

TV Installation and Connection Guide
Connecting to a VCR, PVR, or DV with A/V Cables
Disconnect all power sources before making any connections.
i .Using A/V cable and S-Video cables, connect the video equipment's Audio and S-Video OUT jacks to the
TV's Audio and S-Video In jacks.
VCR Rea r of TV
(o ooo ooo) O
PVR
DV
iiii iiiiQI
Red
A/V cable with RCAconnector _
Connecting both Video IN and S-Video IN
Note: When you connect video equipment to both the same Video and S-Video input jacks, display will
automatically select S-Video first.
To view Video signal, please disconnect the S-Video jack or turn off the S-Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video equipment has it. S-Video input has a better
quality of picture than a composite Video signal.
