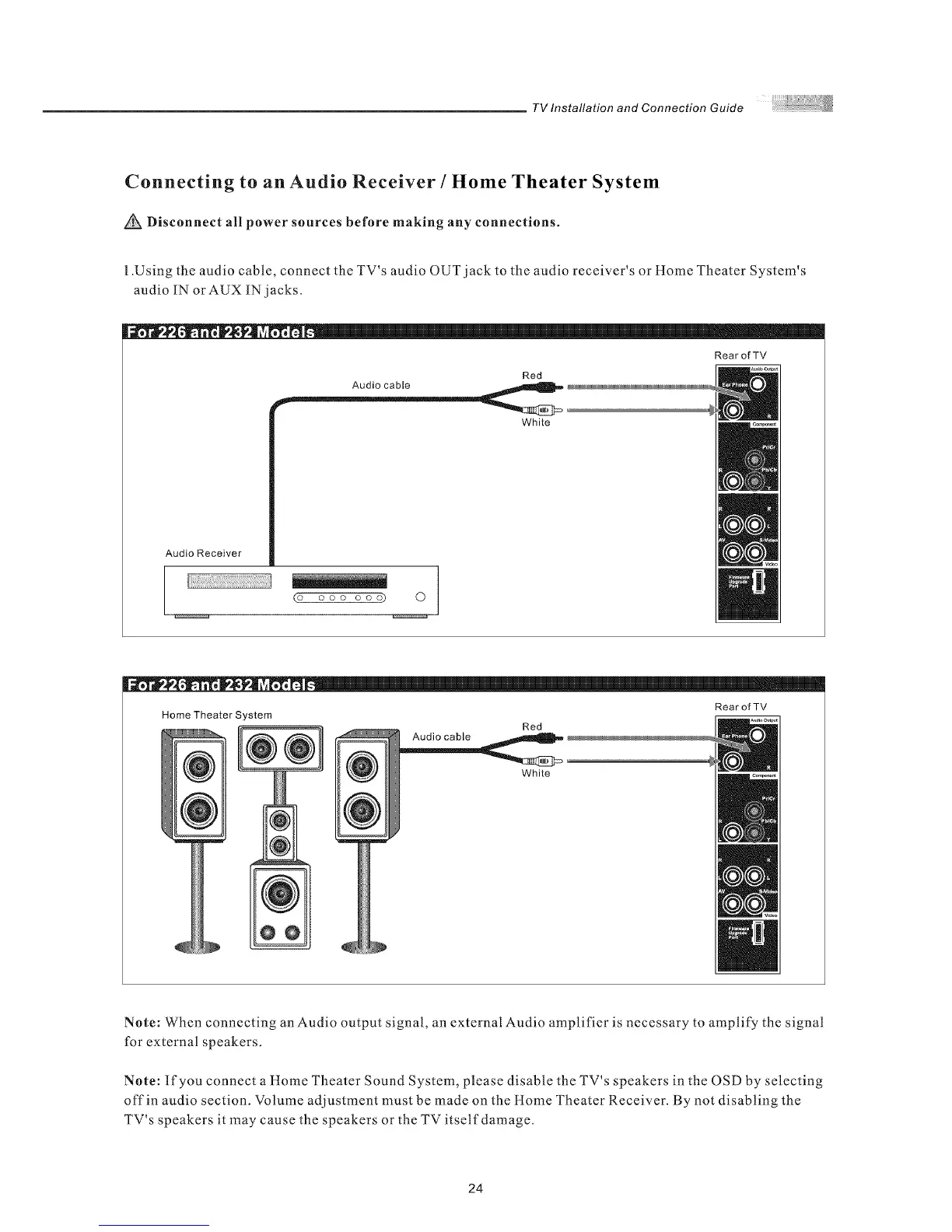

TV Installation and Connection Guide
Connecting to an Audio Receiver / Home Theater System
Disconnect all power sources before making any connections.
l .Using the audio cable, connect the TV's audio OUT jack to the audio receiver's or Home Theater System's
audio IN or AUX IN jacks.
Audio Receiver
(o ooo ooo) 0
White
Home Theater System
@
Audio cable
Red
White
RearofTV
Note: When connecting an Audio output signal, an external Audio amplifier is necessary to amplify the signal
for external speakers.
Note: If you connect a Home Theater Sound System, please disable the TV's speakers in the OSD by selecting
offin audio section. Volume adjustment must be made on the Home Theater Receiver. By not disabling the
TV's speakers it may cause the speakers or the TV itself damage.
