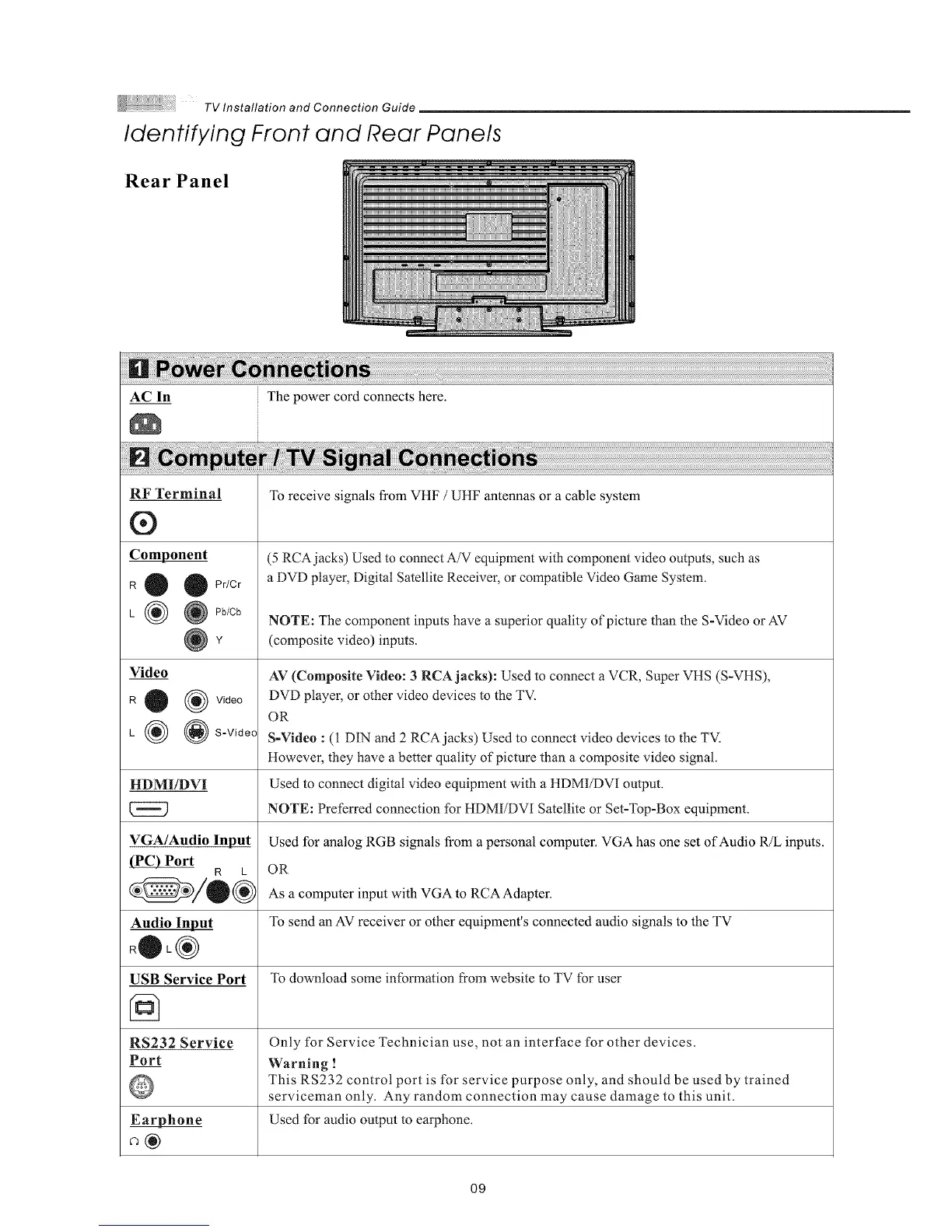

Identifying Front and Rear Panels
Rear Panel
AC In The power cord connects here.
RF Terminal
®
Component
R 0 OPr/Cr
L (_ @ Pb/Cb
Video
R 0 (_ Video
L (_ @ S-Video
HDMI/DVI
VGA/Audio Input
(PC) Port
R L
Audio Input
R®L®
USB Service Port
RS232 Service
Port
Earphone
To receive signals from VHF / UHF antennas or a cable system
(5 RCAjacks) Used to connect A/V equipment with component video outputs, such as
a DVD player, Digital Satellite Receiver, or compatible Video Game System.
NOTE: The component inputs have a superior quality of picture than the S-Video or AV
(composite video) inputs.
AV (Composite Video: 3 RCA jacks): Used to connect a VCR, Super VHS (S-VHS),
DVD player, or other video devices to the TV.
OR
S-Video : (1 DIN and 2 RCA jacks) Used to connect video devices to the TV.
However, they have a better quality of picture than a composite video signal.
Used to connect digital video equipment with a HDMI/DVI output.
NOTE: Preferred connection for HDMI/DVI Satellite or Set-Top-Box equipment.
Used for analog RGB signals from a personal computer. VGA has one set of Audio R/L inputs.
OR
As a computer input with VGA to RCA Adapter.
To send an AV receiver or other equipment's connected audio signals to the TV
To download some information from website to TV for user
Only for Service Technician use, not an interface for other devices.
Warning !
This RS232 control port is for service purpose only, and should be used by trained
serviceman only. Any random connection may cause damage to this unit.
Used for audio output to earphone.
O9
