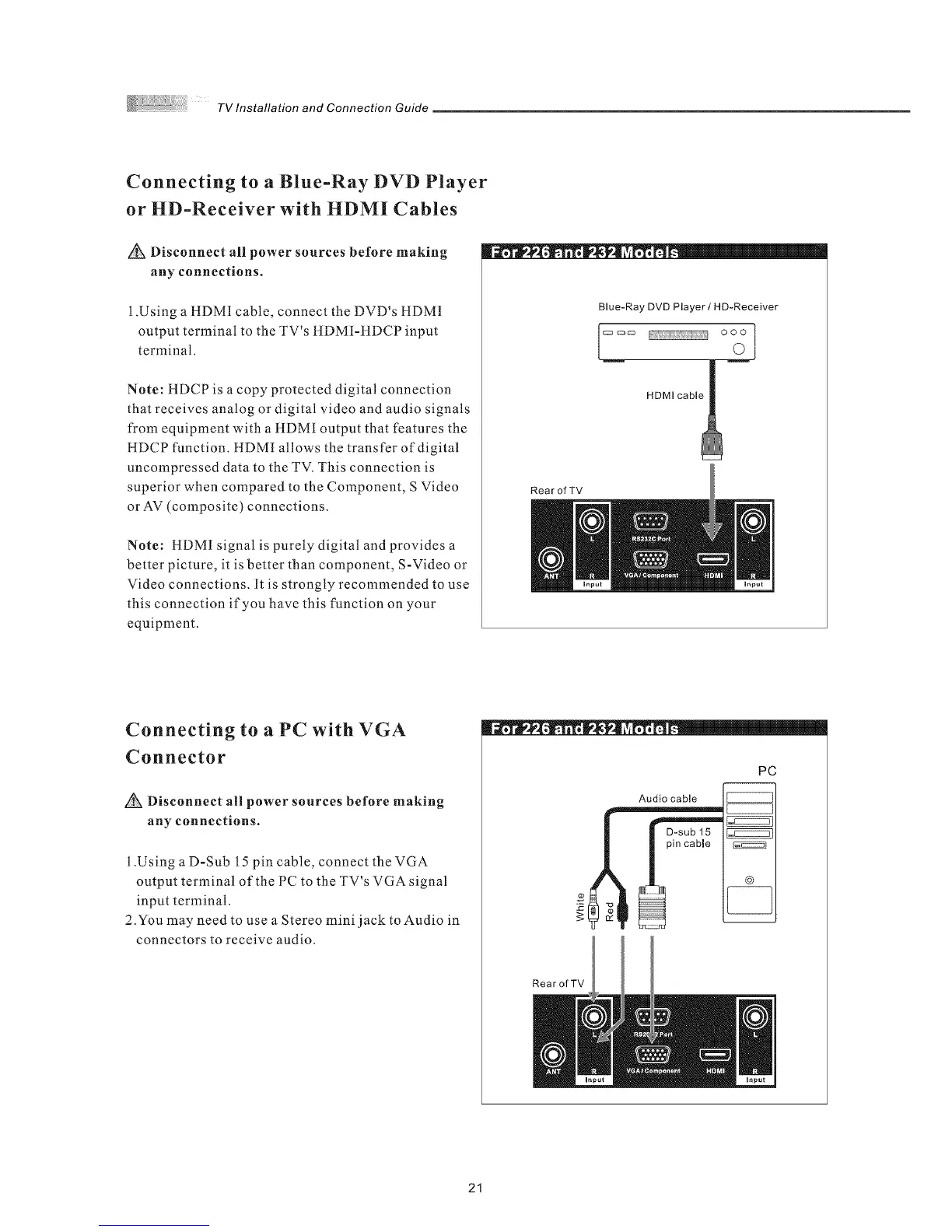

TV Installation and Connection Guide
Connecting to a Blue-Ray DVD Player
or HD-Receiver with HDMI Cables
Disconnect all power sources before making
any connections.
1 .Using a HDMI cable, connect the DVD's HDMI
output terminal to the TV's HDMI-HDCP input
terminal.
Note: HDCP is a copy protected digital connection
that receives analog or digital video and audio signals
from equipment with a !tDMI output that features the
HDCP function. HDMI allows the transfer of digital
uncompressed data to the TV. This connection is
superior when compared to the Component, S Video
or AV (composite) connections.
Note: HDMI signal is purely digital and provides a
better picture, it is better than component, S-Video or
Video connections. It is strongly recommended to use
this connection if you have this function on your
equipment.
Blue-Ray DVD Player / HD-Receiver
!2
HDMI cable !
RearofTV
Connecting to a PC with VGA
Connector
Disconnect all power sources before making
any connections.
1 .Using a D-Sub 15 pin cable, connect the VGA
output terminal of the PC to the TV's VGA signal
input terminal.
2.You may need to use a Stereo mini jack to Audio in
connectors to receive audio.
® , o|* -t_ ll**" !
PC
Audio cable
©
RearofTV
21
