Olivetti d-Copia 3003MF - Detaching and Refitting the Laser Scanner Unit (LSU)

2MH/2MJ/2MK/2ML
1-5-17
(3) Detaching and refitting the laser scanner unit (LSU)
Procedure
1. Remove the scanner unit (See page 1-
5-14).
2. Remove the screw and then remove the
grounding terminal.
3. Remove three connectors from the con-
trol PWB.

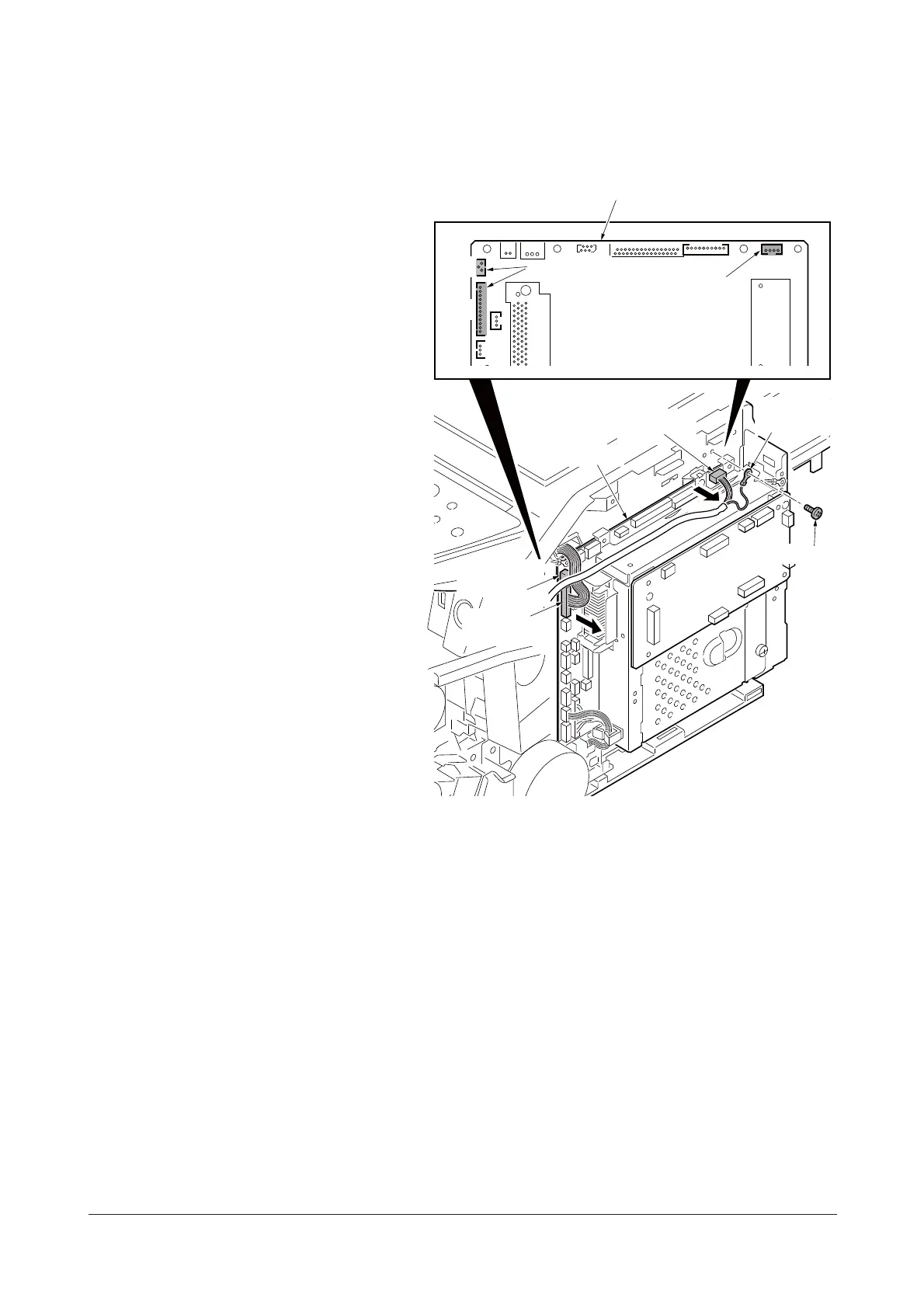

Figure 1-5-21
Control PWB
Connectors
Connector
YC3
YC10
YC32
Screw
Grounding
terminal
Connector
(YC10)
Connector
(YC3)
Control PWB
Connector
(YC32)
