Olivetti d-Copia 3003MF - Detaching and Refitting the DP Rear Cover and DP; Document Processor

2MH/2MJ/2MK/2ML
1-5-51
1-5-11 Document processor

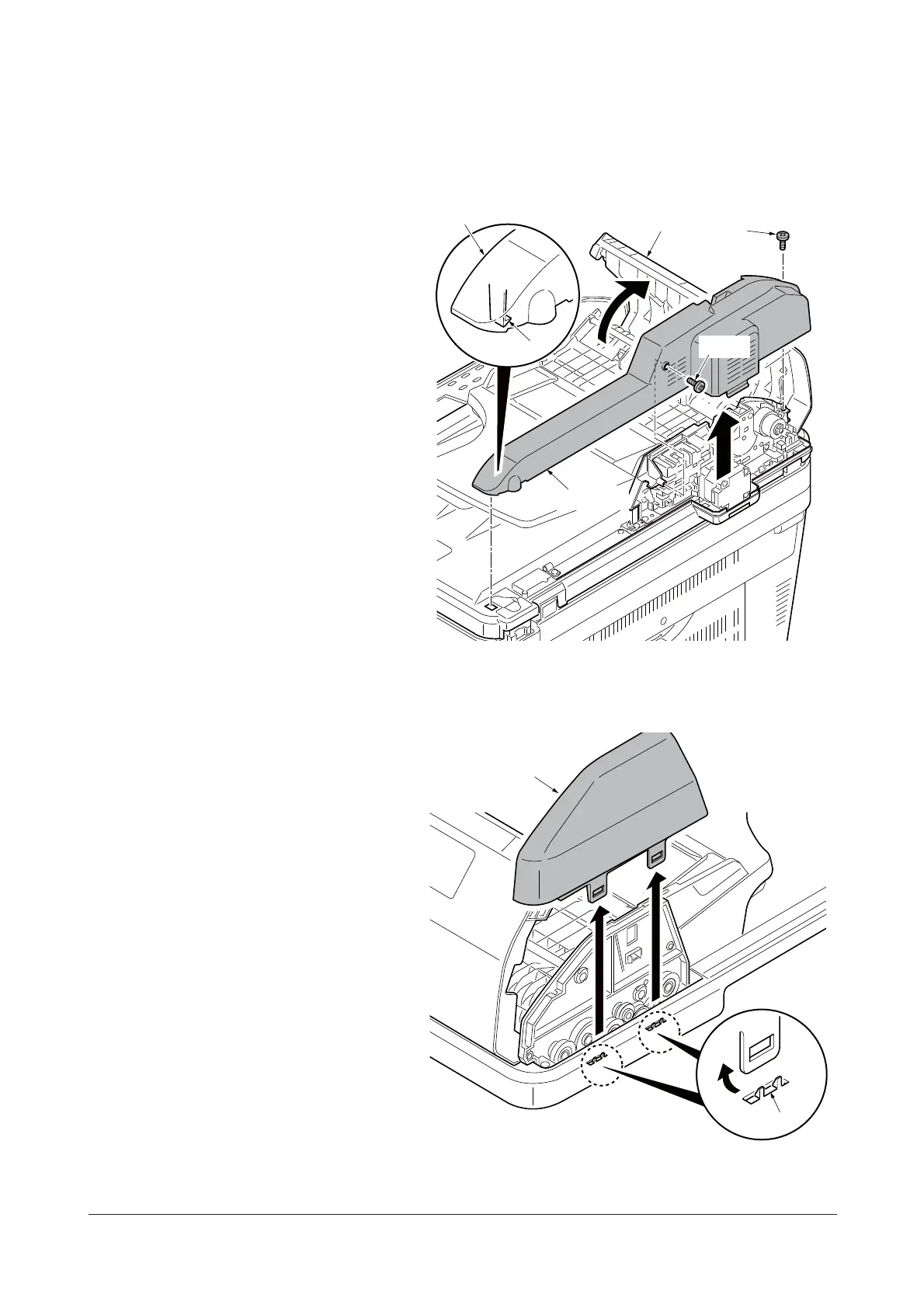

(1) Detaching and refitting the DP rear cover and DP front cover
Procedure
1. Open the DP top cover.
2. Remove two screws.
3. Unhook the hook and then remove the
DP rear cover.
Figure 1-5-76
4. Unhook two hooks and then remove the
DP front cover.
Figure 1-5-77
Screw
DP top cover
Hook
DP rear cover
DP rear cover
Screw
DP front cover
Hook
Y113860-1 Sevice Manual
