2MH/2MJ/2MK/2ML
1-2-1
1-2 Installation
1-2-1 Installation environment
1. Temperature: 10 to 32.5°C/50 to 90.5°F
2. Humidity: 15 to 80%RH
3. Power supply: 220 - 240 V AC, 4.0
A
4. Power source freq
uency: 50 Hz ±0.3%/60 Hz ±0.3%
5. Installation location
Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sun-
light or other strong light when removing paper jams.
Avoid locations subject to high temperature and high humidity or low temperature and low humidity; an
abrupt change in the environmental temperature; and cool or hot, direct air.
Avoid places subject to dust and vibrations.
Choose a surface capable of supporting the weight of the machine.
Place the machine on a level surface (maximum allowance inclination: 1°).
Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such
as mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic sol-
vents.
Select a well-ventilated location.
6. Allow sufficient access for proper operation and maintenance of the machine.

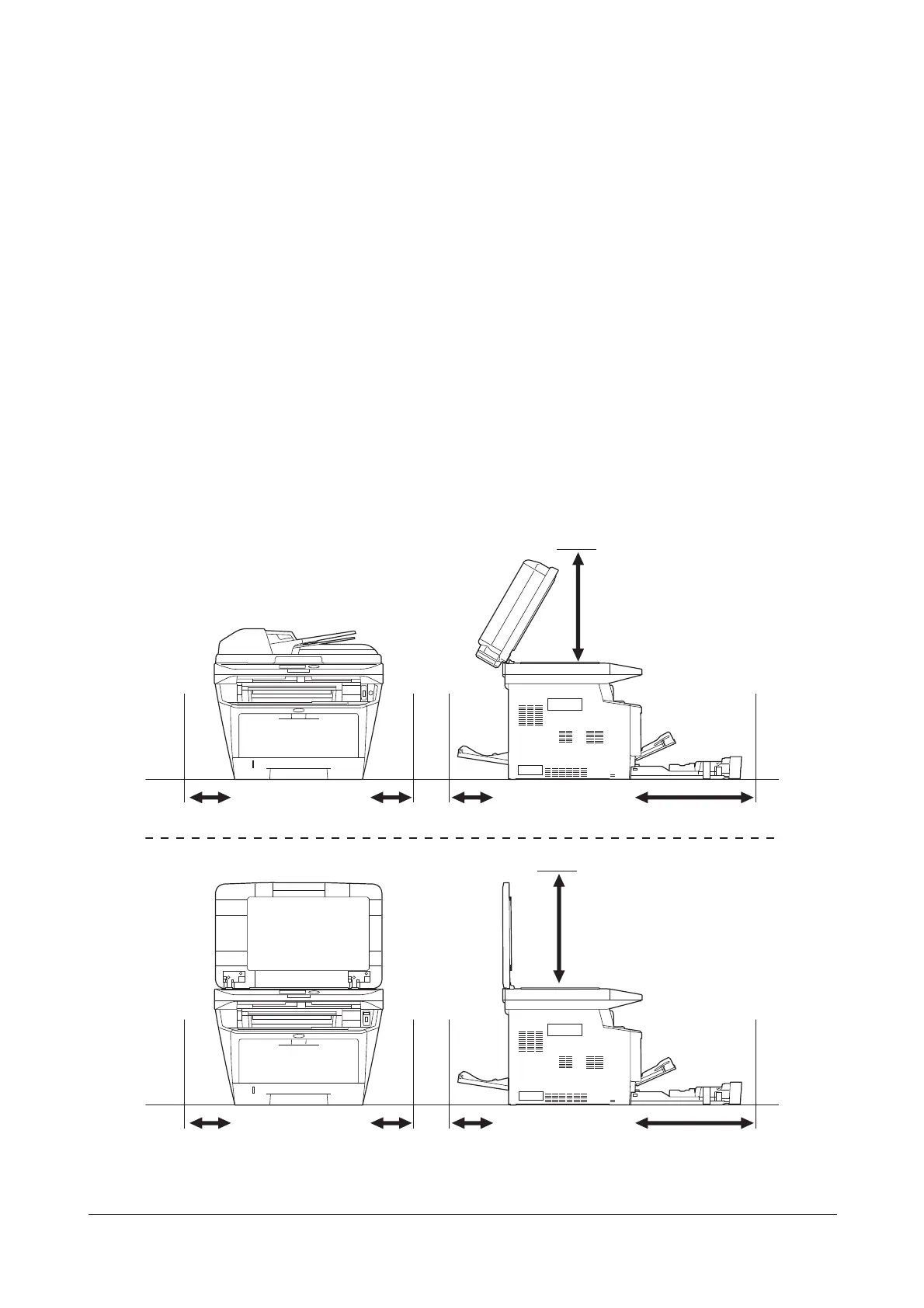

Figure 1-2-1
300mm (11 13/16”) 300mm (11 13/16”) 300mm (11 13/16”) 1000mm (39 3/8”)
300mm (11
13/16”) 300mm (11 13/16”) 300mm (11 13/16”) 1000mm (39 3/8”)
500mm (19
11/16”)
500mm (19
11/16”)
(Model with document processor as standard)
(Model with original cover as standard)
Y113860-1 Sevice Manual
