Olivetti d-Copia 3003MF - Detaching and Refitting the FAX Control PWB

2MH/2MJ/2MK/2ML
1-5-48
(5) Detaching and refitting the FAX control PWB
Procedure
1. Unhook the hook and then remove the
controller box cover.

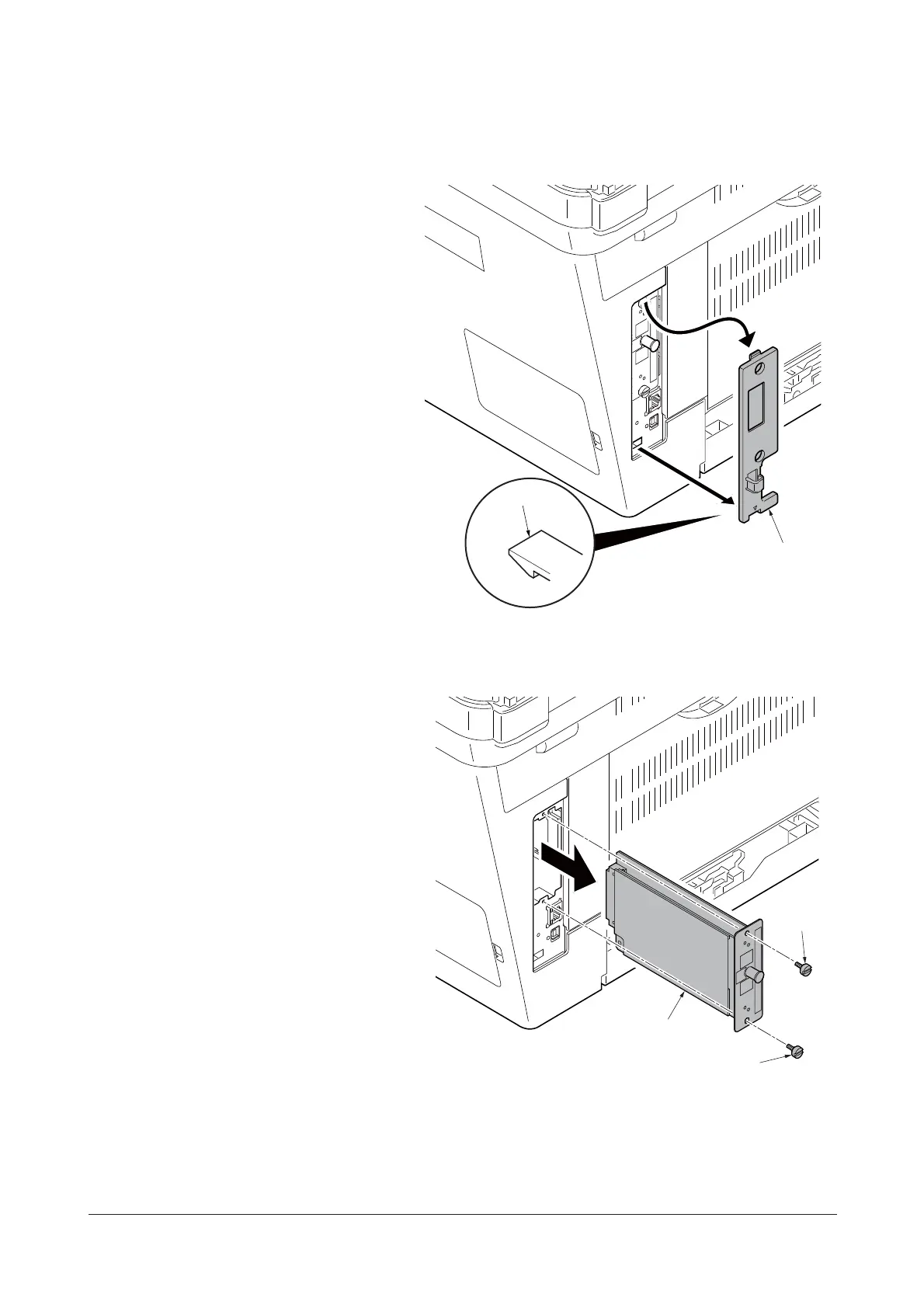

Figure 1-5-72
2. Remove two screws and then remove
the FAX control PWB.
3. Check or replace the FAX control PWB
and refit all the removed parts.
Figure 1-5-73
Controller box cover
Hook
FAX control PWB
Screw
Screw
