Olivetti d-Copia 3003MF - Page 212

2MH/2MJ/2MK/2ML
2-1-17

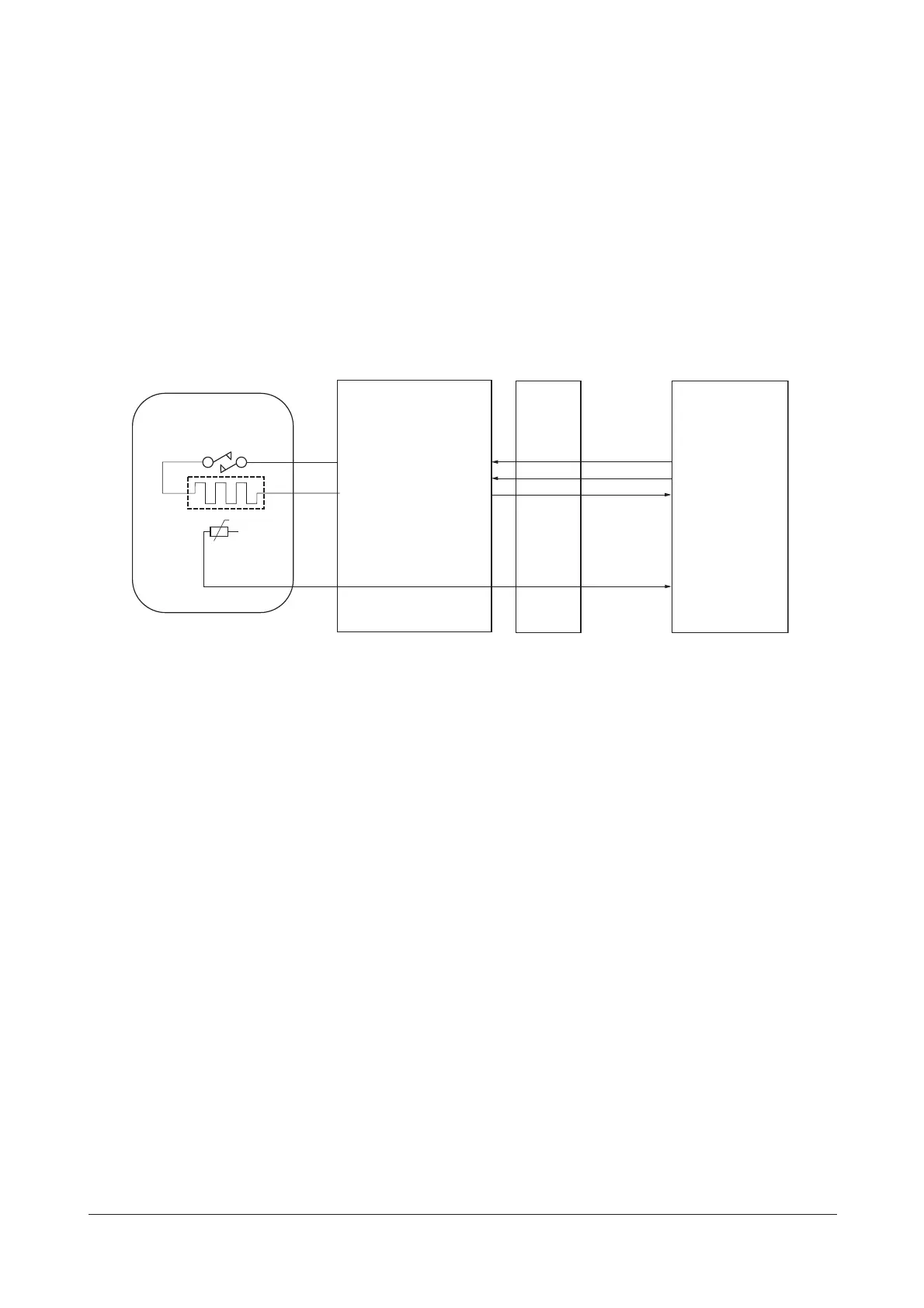

Figure 2-1-22 Fuser unit block diagram
1. Upper fuser frame
2. Lower fuser frame
3. Heat roller
4. Press roller
5. Fuser heater
6. Fuser thermostat
7. Fuser thermistor
8. Separators
9. Fuser bushes
10. Press springs
11. Press spring holders
12. Fuser lever L (R)
13. Exit sensor
14. Actuator (exit sensor)
15. Fuser guide pulley
N
L
THERM
HEATN
SLEEP
ZCROSS
YC102-1
YC102-3
YC103-6
YC103-7
YC103-8
YC23-5
YC23-6
YC23-3
YC23-16
Fuser unit
FTH
FH
FTS
PSPWB CONPWB
HVPWB
Y113860-1 Sevice Manual
