1.

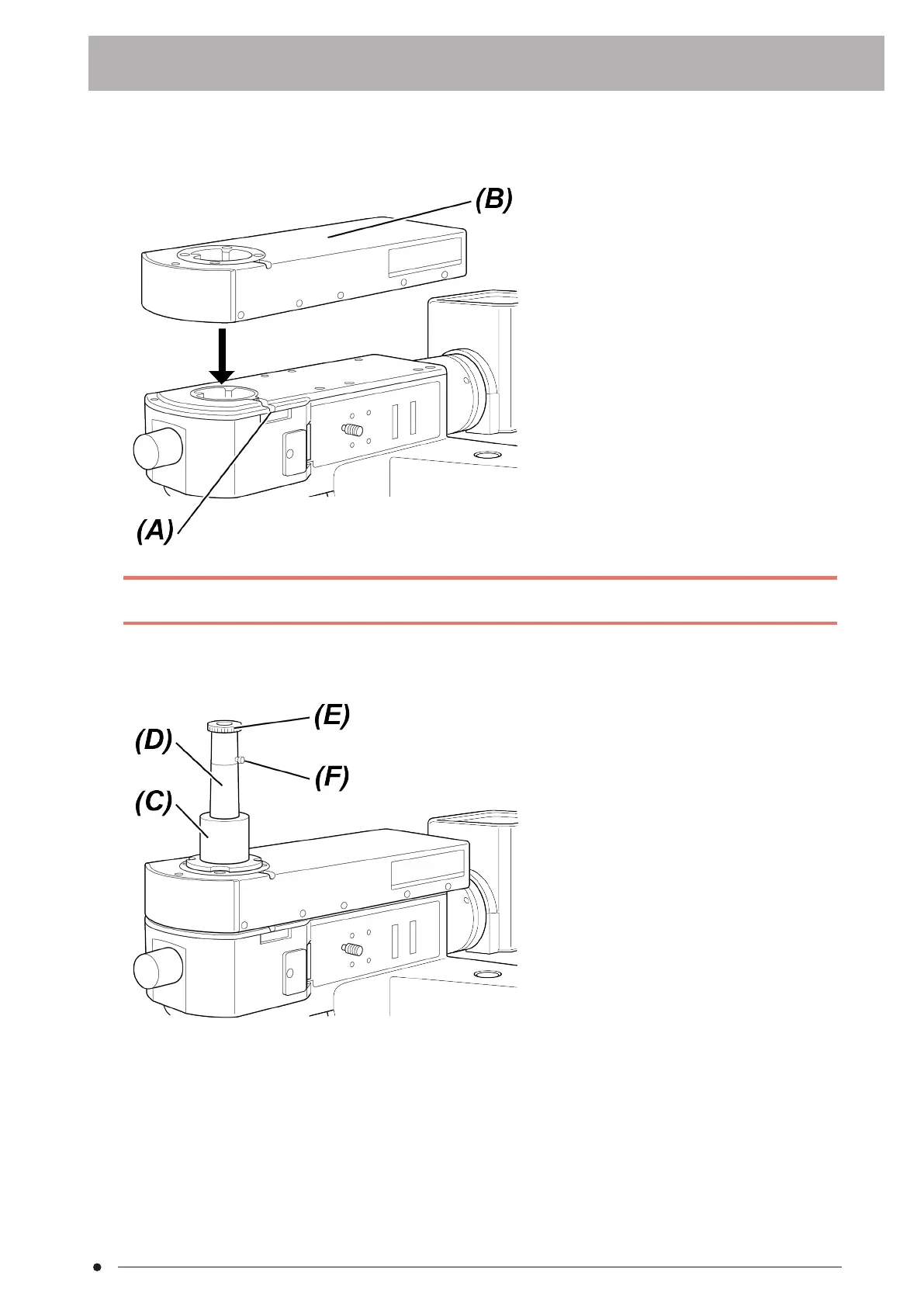

Sufficiently loosen the observation tube clamping screw (A) of the motorized light guide reflected light illuminator
BXC-RLI with the Allen screwdriver provided with BXC-RLI, attach the circular dovetail on the bottom of the Autofocus
Sensing Unit BXC-FSU (B), and tighten the clamping screw (A).
NOTE:
The centering of the Autofocus Sensing Unit BXC-FSU should be adjusted before mounting it on the observation tube.
2.
Attach the standard cylindrical shaft (C) to the observation tube mounting seat of the Autofocus Sensing Unit BXC-
FSU and insert the centering telescope CT (D) in the standard cylindrical shaft.
Rotate the helicoid (E) on the top of the CT to focus on the cross scale.
3.
Engage the objective with the highest magnification of the ones being used in the light path.
4.
Set the observation path of the vertical illuminator to reflected light brightfield (BF).
5.
Loosen the clamping screw (F) of the CT. Slide the CT up and down while looking through it and tighten the clamping
screw (F) when the objective pupil (white circle you see when looking through the CT) comes into focus.
8
3.3 Attaching the Autofocus Sensing Unit to the motorized3. Setup procedures
