Olympus BXC-CBB - Attaching the Autofocus Sensing Unit

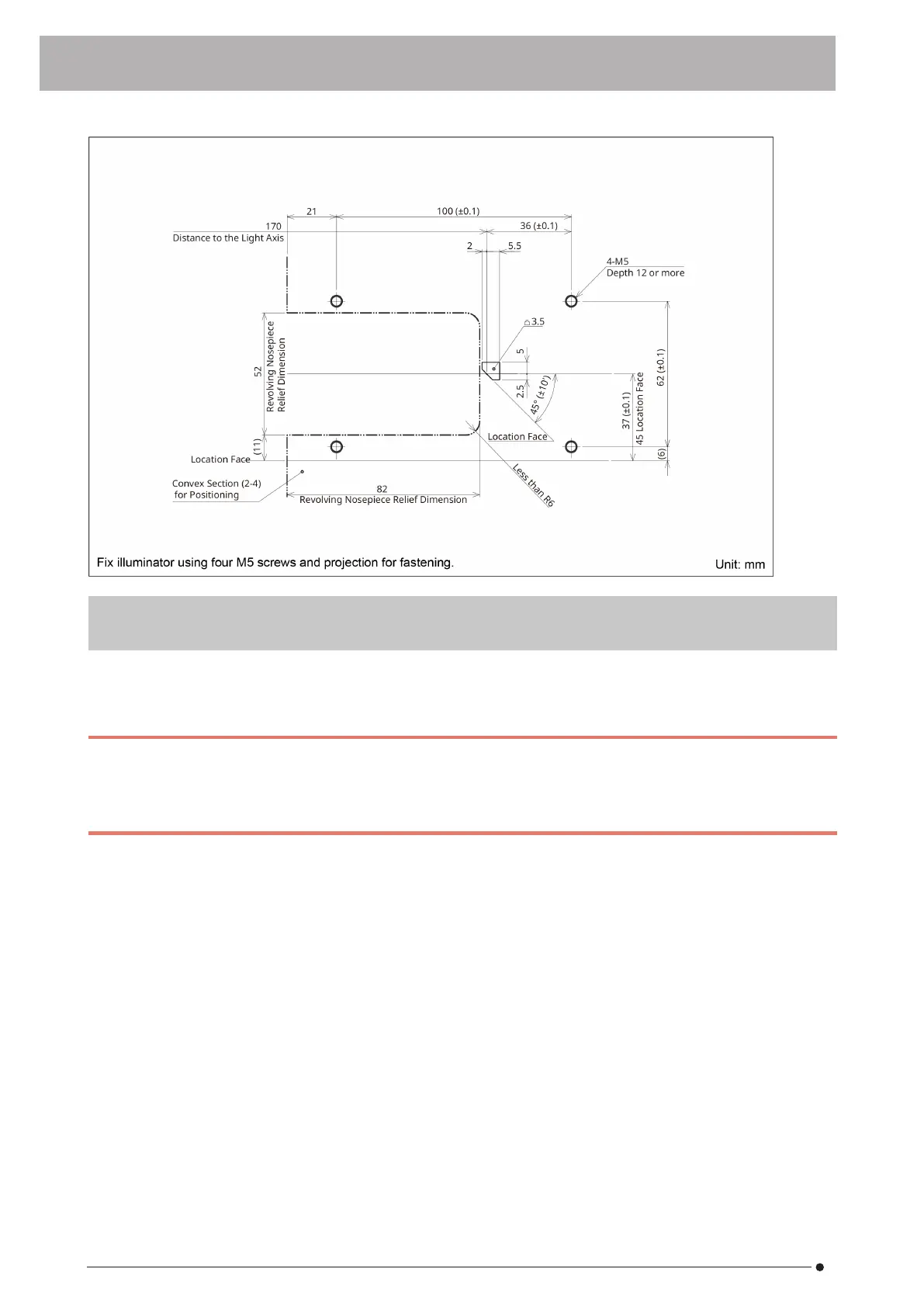

Mounting Dimensions of Illuminator (BXC-RLI/BXC-RLI-CA/BXC-RLI-LGCA)
3.3 Attaching the Autofocus Sensing Unit to the motorized light guide reflected light
illuminator
Attach BXC-FSU to BXC-RLI/BXC-RLI-CA/BXC-RLI-LGCA according to the following steps.
The following steps are described using only BXC-RLI.
Tool used: Allen wrench (3mm)
NOTE:
l
Be sure to adjust centering of the Autofocus Sensing Unit BXC-FSU.
l
To ensure safety, be sure to unplug the AF cable during installation and adjustment of the Autofocus Sensing Unit
BXC-FSU.
