1.

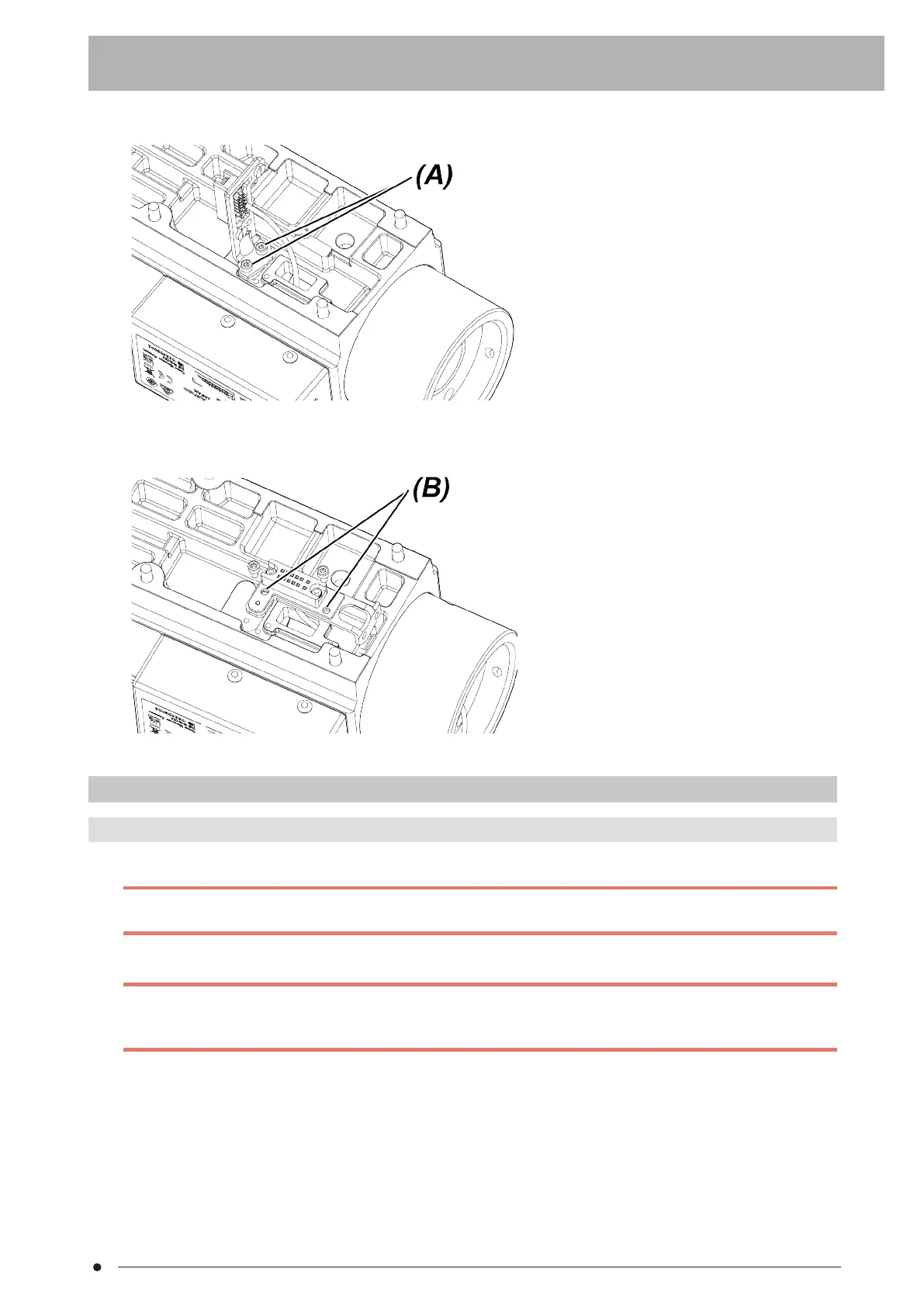

Loosen and remove two clamping screws (A) on the back side of BXC-RLI with your allen wrench (M3).
2.
Store the motorized nosepiece connector as shown in the figure and secure it by tightening two clamping screws (B)
you previously removed.
3.10 Attaching the light source for reflected light illumination
3.10.1 Attaching the LED illumination
1.
Loosen two mounting screws (A) of the reflected light illuminator using an Allen screwdriver.
NOTE:
For safety, turn OFF the powers of the control box and PC while connecting cables.
2.
Insert the reflected LED light source into the light source mounting hole of the reflected light illuminator until it
touches the end.
NOTE:
When attaching the reflected LED light source, attach it so that the cable for the reflected LED light source comes to
the right side when looking from the back of the microscope frame.
3.
Tighten two mounting screws (A) of the reflected light illuminator using an Allen screwdriver.
14
3.10 Attaching the light source for reflected light3. Setup procedures
