For cable connection, see "Connecting cables (page 23)".
3.11.2 User-I/F

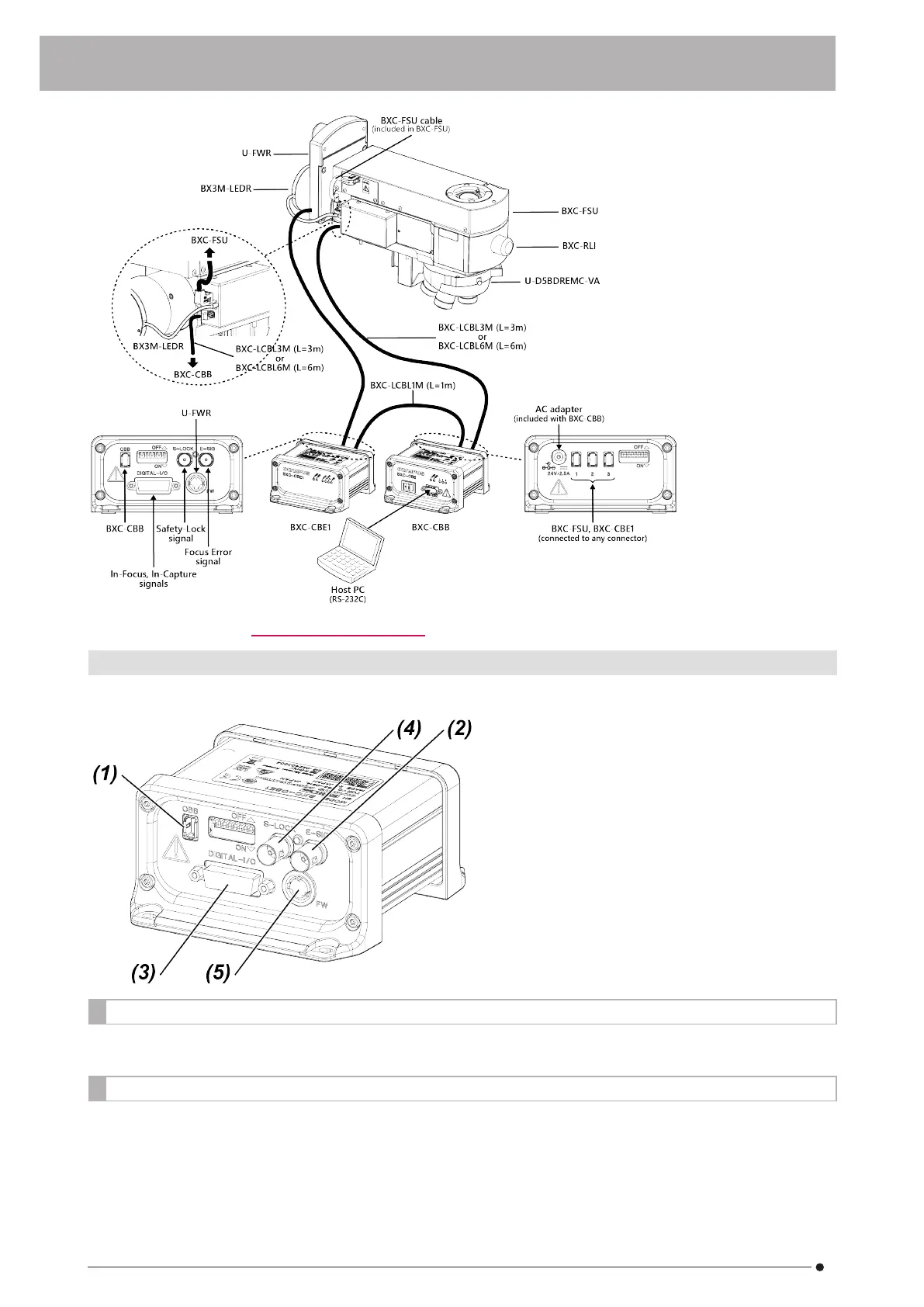

The back panel view of BXC-CBE1
(1)
BXC-CBB
I/F
Label: CBB
Description: Internal I/ F (power supply and communication signals)
(2) Focus Error signal
Label: E-SIG
Description: Focus Error Signal (Analog signal)
Purpose: Used for Z-axis control of user system
Connector type: BNC
19
