Study the meaning of the symbol and always use the product in the safest possible manner.
Symbol Meaning
Indicates a non-specific general hazard. Follow the description given after this symbol or in the instruction manual
Indicates that the seesaw type main switch is ON.
(Seesaw type is the type of switch where ON or OFF is selected by pressing it to ON or OFF side.)
Indicates that the seesaw type main switch is ON.

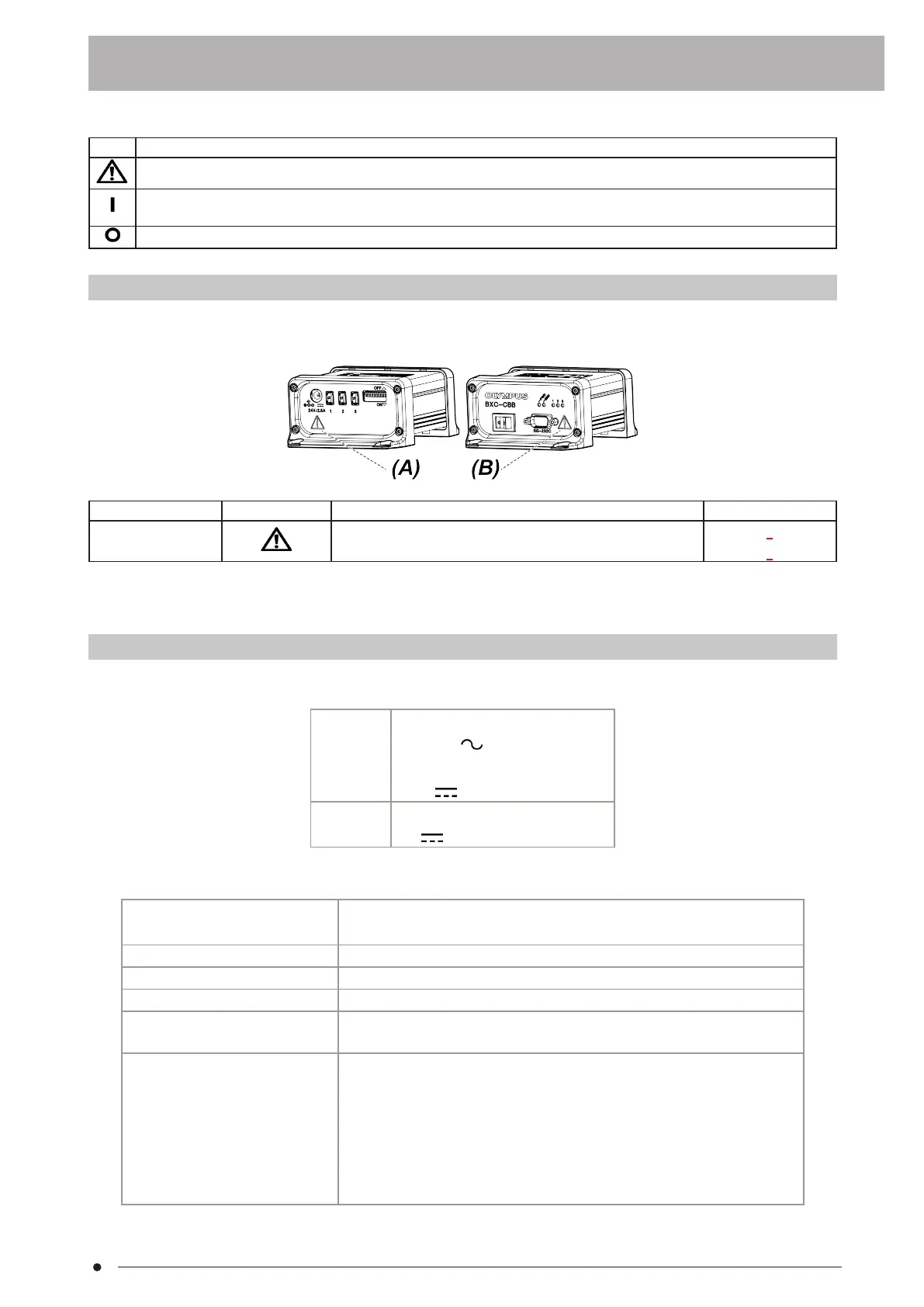

2.7 Caution engraving/label
Safety labels are placed on the portions which particularly require special cautions when using or operating this product.
Be sure to follow these instructions.
Label position Safety label Instructions in the instruction manual Relevant page
(A), (B)
[Caution for electric safety]
[Caution for prevention of electric shock]
3
2
If a caution engraving or label is dirty or peeled off, contact us for the replacement or other inquiry.
2.8 Specifications
Rating
AC adapter Input:
100-240 V 50/60 Hz 1.4 A(Max)
Output:
24.0 V 2.71 A(Max)
Control box Input:
24V 2.5A(Max)
Operating environment
Temperature 5 to 40°C (41 to 104 °F)
Humidity 0 to 85%
Variation of power supply voltage ± 10 %
Pollution degree 2 (in accordance with IEC60664)
Installation category (excess
voltage category)
II (in accordance with IEC60664)
Conditions for safety standards
l
Indoor use
l
Altitude: Max. 2000 meters
l
Temperature: 5 to 40 °C (41 to 104 °F)
l
Relative humidity: 20 to 80% for temperatures up to 31 °C (88 °F)
(without condensation) In case of over 31 °C (88 °F), the relative
humidity is decreased linearly through 70% at 34 °C (93 °F), 60% at 37
°C (99 °F), and to 50% at 40 °C (104 °F).
4
2.7 Caution engraving/label2. Safety precautions
