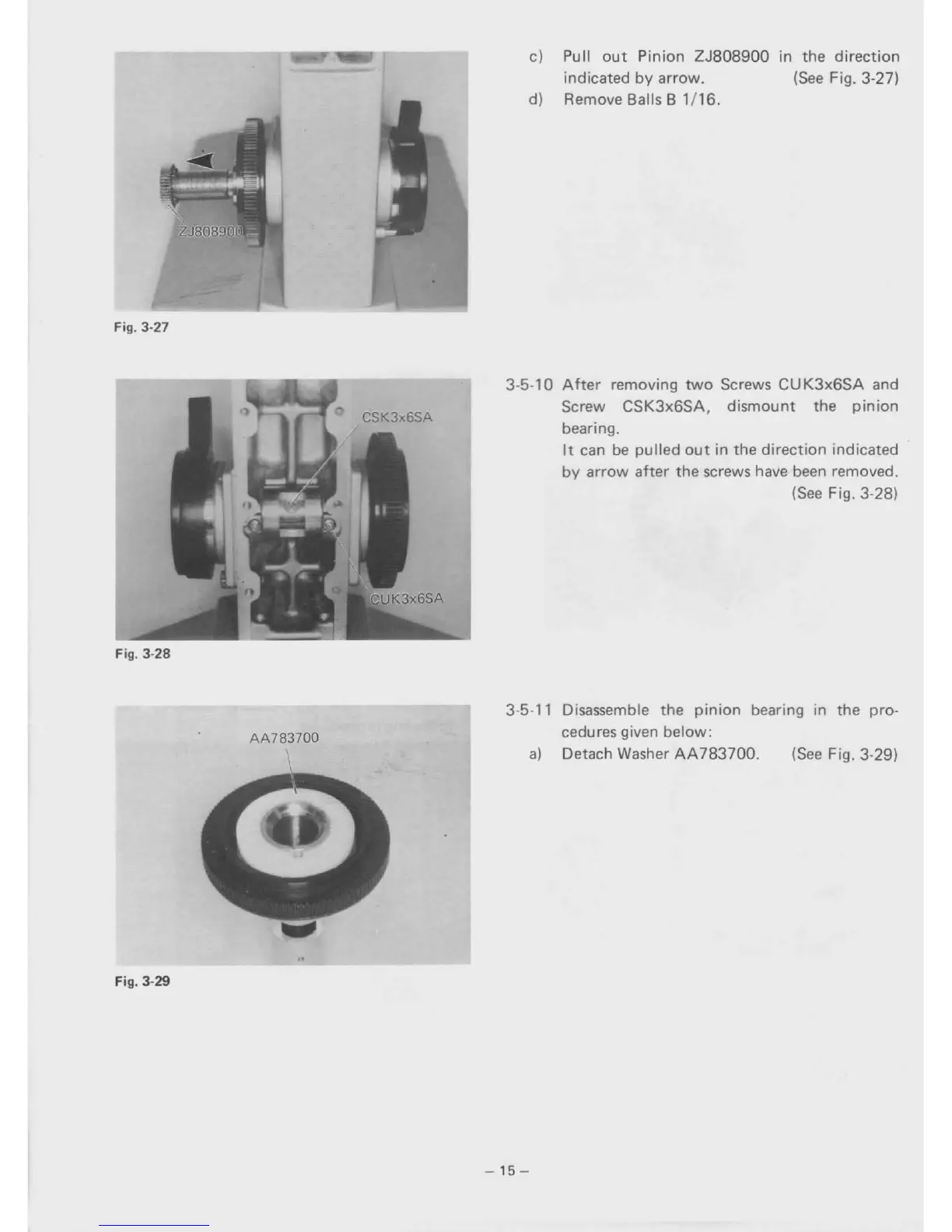

Fig. 3-27
cl
d)
Pullout Pinion ZJ808900
indicated
by arrow.
Remove 8alls 8 1/16.
in the direction
(See Fig. 3-27)
Fig. 3-28
3-5-10 After removing two Screws CUK3x6SA and
Screw CSK3x6SA,
dismount the pinion
bearing.
It can be pulled out in the direction indicated
by arrow after the screws have been removed.
(See Fig. 3-28)
Fig. 3-29
AA783700
\
3-5-11 Disassemble the pinion bearing in the pro-
cedures given below:
a) Detach Washer AA783700. (See Fig. 3-29)
-15-
