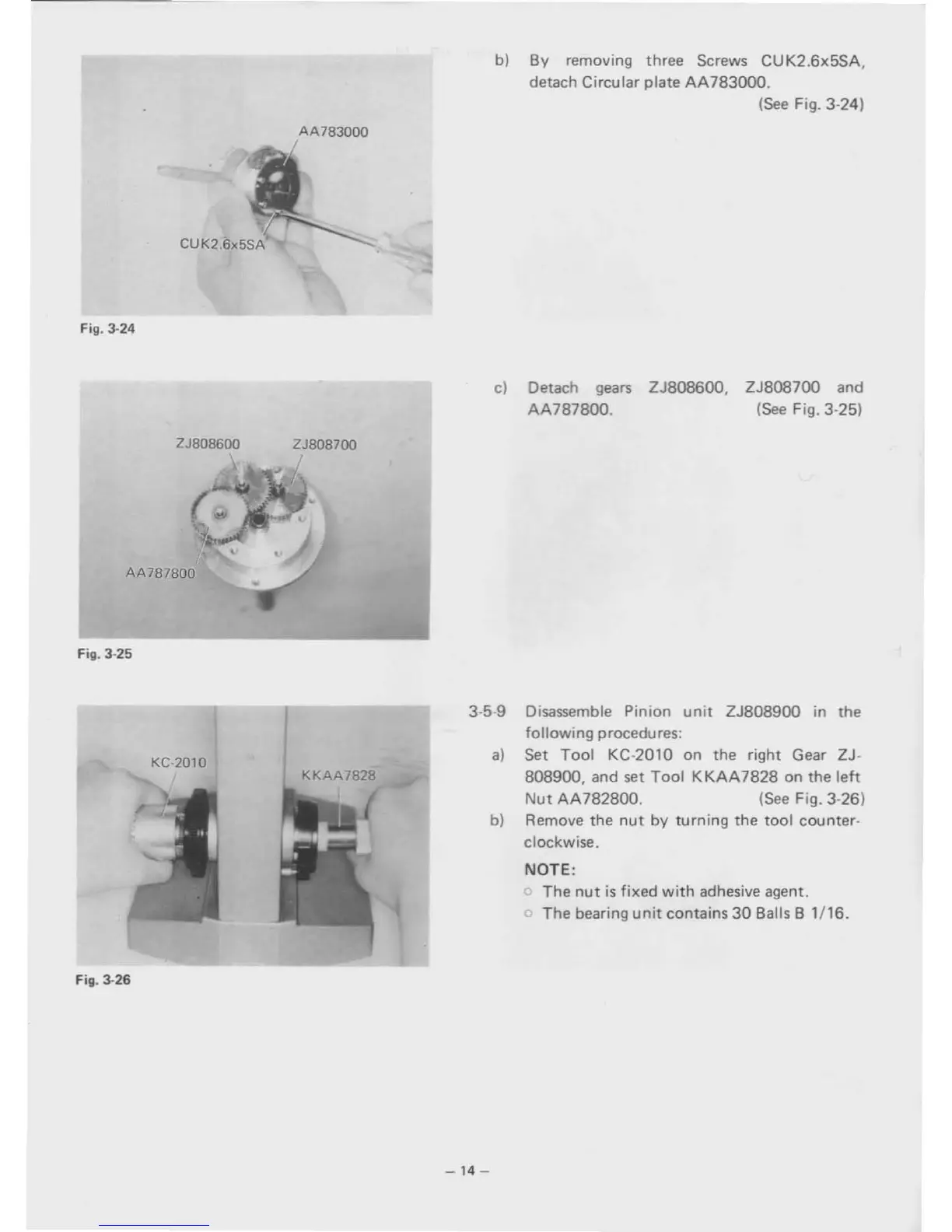

AA783000
Fig. 3-24
b)
By
removing three Screws CUK2.6x5SA,
detach Circular plate
AA783000.
(See
Fig. 3-24)
ZJ808600
AA787800
Fig.
3·25
ZJ808700
c)
Detach
gears
AA787800.
ZJ808600, ZJ808700 and
(See
Fig. 3-25)
KC-2010
Fig.
3·26
3·5-9 Disassemble Pinion
unit
ZJ808900 in the
following procedures:
a)
Set
Tool
KC-2010 on the right Gear ZJ·
808900, and set
Tool
KKAA7828
on the
left
Nut
AA782800.
(See
Fig. 3-26)
b)
Remove the
nut
by
turning the
tool
counter·
clockwise.
NOTE:
The
nut
is
fixed
with
adhesive agent.
The bearing
unit
contains
30
8alls B
1/16.
-14
-
