Olympus CH Series User Manual

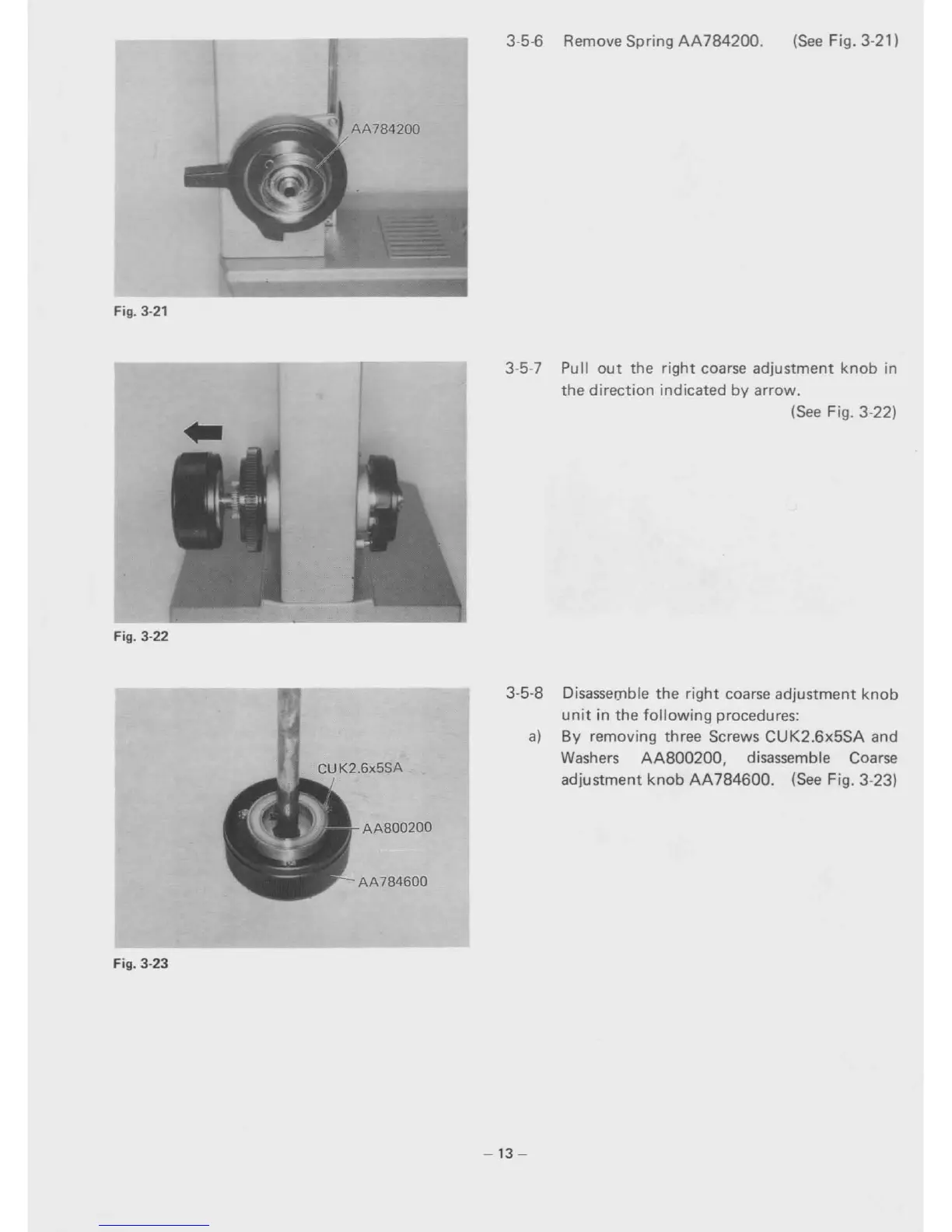

Fig. 3-21
3-5-6 Remove Spring AA784200.
(See Fig. 3-21)
Fig. 3-22
AA800200
AA784600
Fig. 3-23
3-5-7 Pullout the right coarse adjustment knob in
the direction indicated
by arrow.
(See Fig. 3-22)
3-5-8 Disassel]lble the
right coarse adjustment knob
unit in the following procedures:
a) 8y removing three Screws CUK2.6x5SA and
Washers
AA800200, disassemble Coarse
adjustment
knob AA784600. (See Fig. 3-23)
-13 -

Olympus CH Series Specifications

General

Type	Biological Microscope
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Objectives	Plan achromatic objectives (4x, 10x, 40x, 100x)
Eyepiece	10x widefield eyepiece (FN 20)
Condenser	Abbe condenser (NA 1.25)
Magnification Range	40x - 1000x
Head	Binocular or Trinocular
Illumination	Built-in LED illuminator
Power Supply	AC adapter (for halogen or LED illumination)
