Olympus CH Series - Reassembling Procedures for Coarse Adjustment Guide

AA872400
\
AA872700 3PSK2x5SA

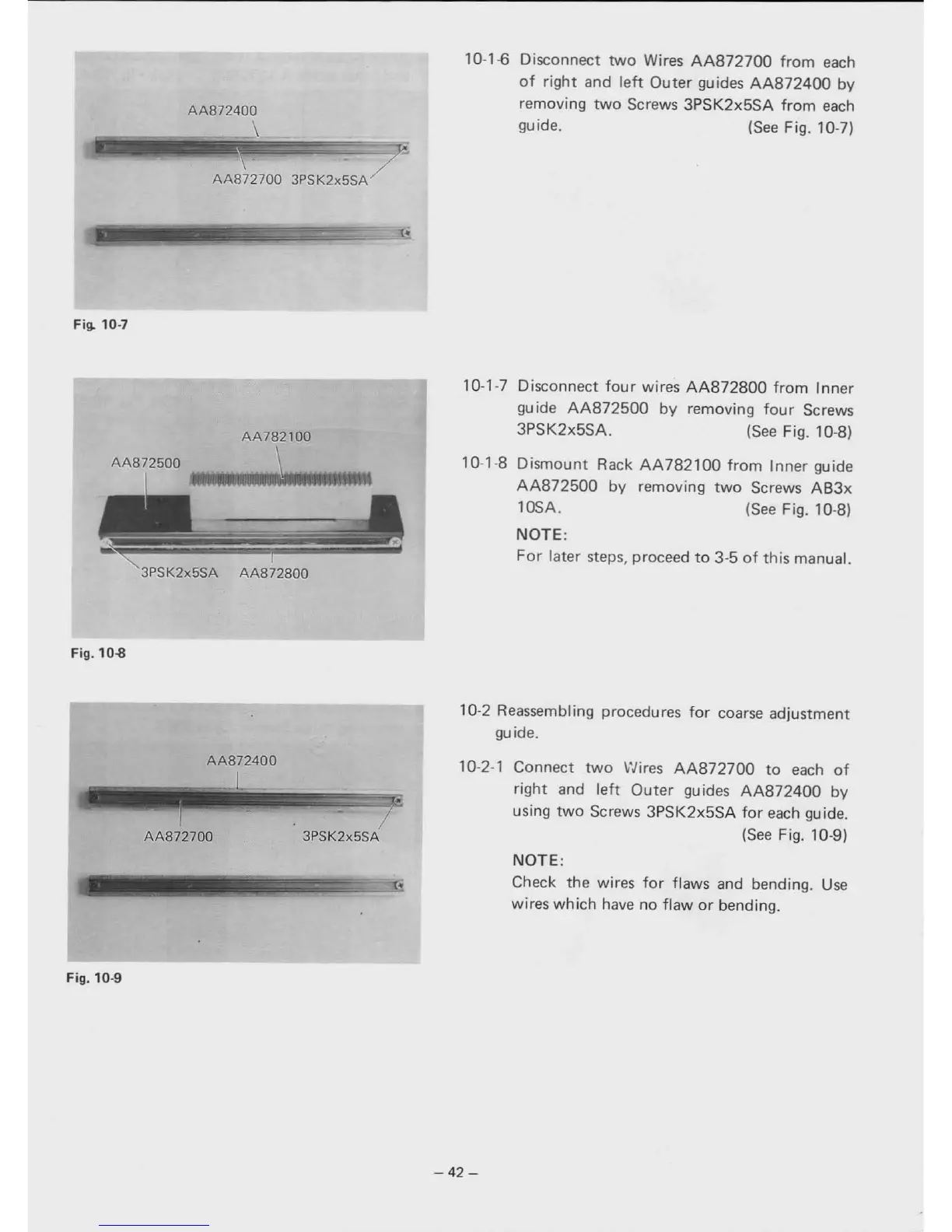

10-1-6 Disconnect two Wires AA872700 from each
of right and left Outer guides AA872400 by
removing two Screws 3PSK2x5SA from each
guide. (See Fig. 10-7)
-- ---- -
. ---~ - -
Fig. 10-7
AA782100
AA872500
..........
3PSK2x5SA AA872800
Fig. 10-8
10-1-7 Disconnect four wires AA872800 from Inner
guide
AA872500 by removing four Screws
3PSK2x5SA.
(See Fig. 10-8)
10-1-8
Dismount Rack AA782100 from Inner guide
AA872500 by removing two Screws AB3x
lOSA. (See Fig. 10-8)
NOTE:
For later steps, proceed to 3-5 of this manual.
10-2
Reassembl ing procedu res for coarse adjustment
guide.
AA872400
L
Fig. 10-9
3PSK2x5SA
•
10-2-1 Connect two Wires AA872700 to each of
right and left Outer guides AA872400 by
using two Screws 3PSK2x5SA for each guide.
(See Fig. 10-9)
NOTE:
Check the wires
for flaws and bending. Use
wires which have no flaw or bending.
-42-
