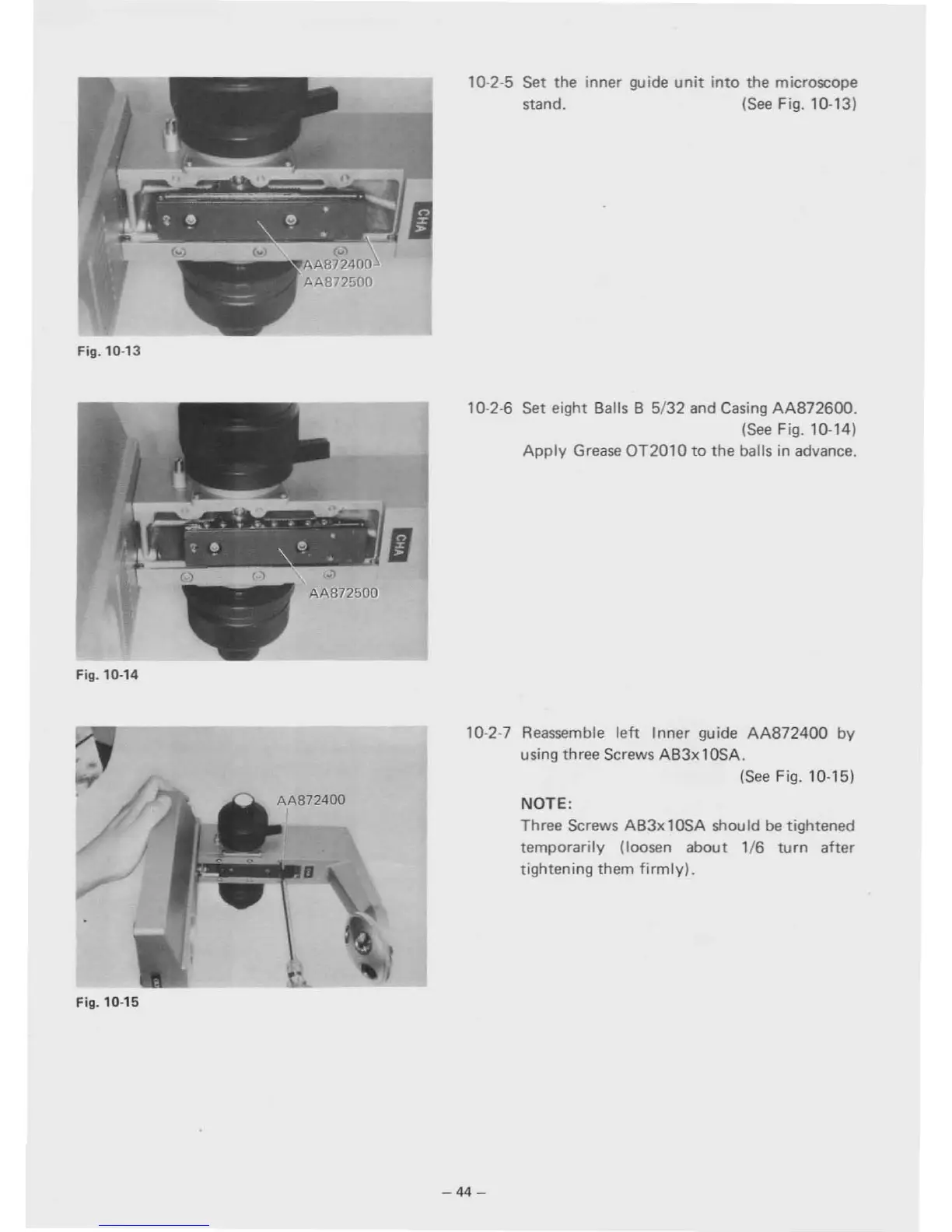

Fig. 10-13
10-2-5 Set the inner guide unit into the microscope
stand.
(See Fig. 10-13)
Fig. 10-14
... ~, , 'A'.· . .. -
•
" • e
.. - .
q )
AA872500
10-2-6 Set eight Balls B 5/32 and Casing AA872600.
(See Fig. 10-14)
Apply Grease OT2010 to the balls in advance.
Fig. 10·15
10·2·7 Reassemble left Inner guide AA872400 by
using three Screws AB3x10SA.
(See Fig. 10-15)
NOTE:
Three Screws AB3x10SA should be tightened
temporarily (loosen about 1/6 turn after
tightening them firmly).
