CUK2.6x8SA
AA952100
®
Fig. 11·3
AA952000
----~:>-
PSK
1.7x4SA -----#
./
""..
""
AA878700
AA878500
~~=~~~
AA952200-
AA878700
--------.,
AA952100-----r
Fig.114
AA952000
----_€'
PSK1.7x4SA
-4
AA878700
AA878500
-S~=Q:~~
AA952200-
AA878700
-------,-.
AA952100
~'"
Fig. 11-5

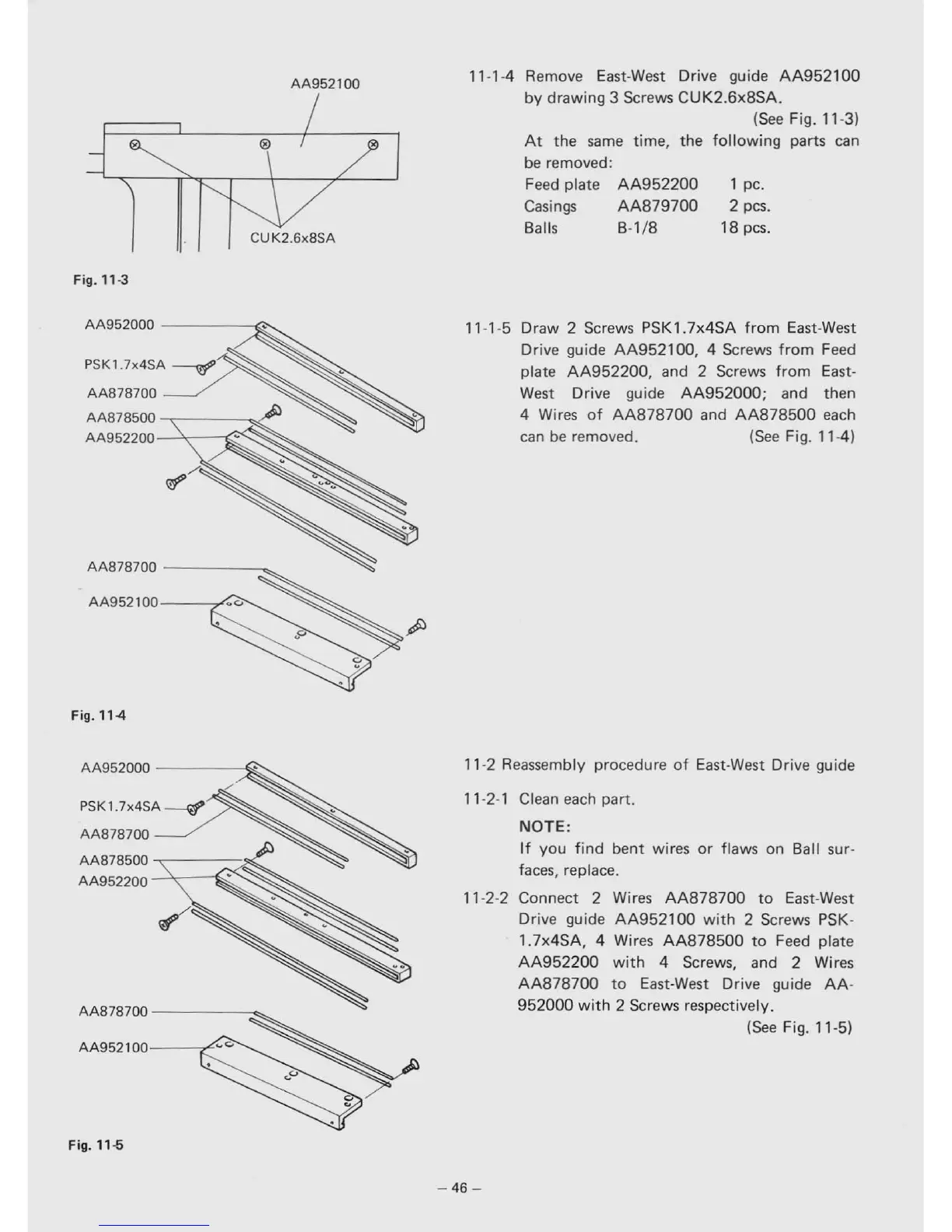

11-1-4 Remove East·West Drive guide AA952100
by drawing 3 Screws CUK2.6x8SA_
(See Fig. 11-3)
At
the
same time,
the
following parts can
be removed:
Feed plate AA952200 1
pc_
Casings AA879700 2 pes.
Balls
B-l/8
18 pcs.
11-1-5 Draw 2 Screws PSK1.7x4SA from East-West
Drive guide AA952100, 4 Screws from Feed
plate AA952200, and 2 Screws from East-
West Drive guide AA952000; and then
4
Wires
of
AA878700 and AA878500 each
can be removed. (See Fig. 11-4)
11-2 Reassembly procedure
of
East-West Drive guide
11-2-1 Clean each part.
NOTE:
If
you find bent wires or flaws on
Ball
sur-
faces, replace.
11-2-2 Connect 2 Wires AA878700 to East-West
Drive guide AA952100 with 2 Screws
PSK-
1.7x4SA, 4
Wires
AA878500
to
Feed plate
AA952200 with 4 Screws, and 2 Wires
AA878700
to
East-West Drive guide
AA-
952000
with 2 Screws respectively.
(See Fig. 11-5)
-46
-
