AA952100
o

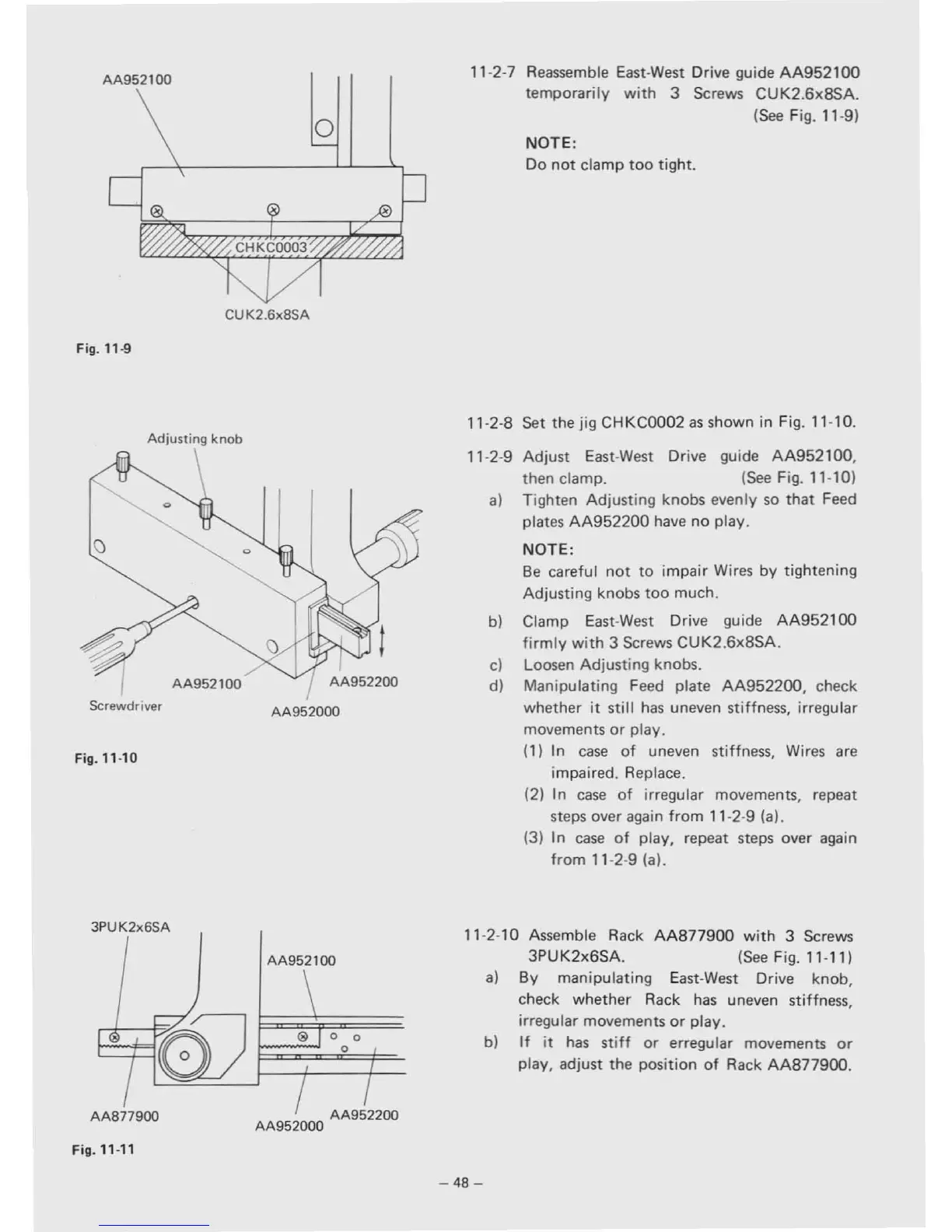

11-2-7 Reassemble East·West Drive guide
AA952100
temporarily
with
3 Screws
CUK2.6xBSA.
(See
Fig. 11·9)
NOTE:
Do
not
clamp
too
tight.
CUK2.6x8SA
Fig. 11·9
b)
c)
d)
Adjusting knob
o
o
AA952100
Screwdriver
Fig.11·10
AA952000
11-2-B Set the jig
CHKC0002
as
shown in Fig. 11-10.
11-2-9
Adjust
East-West Drive guide
AA952100,
then clamp.
(See
Fig. 11-10)
a)
Tighten
Adjusting
knobs evenly
so
that
Feed
plates
AA952200
have no play.
NOTE:
Be
careful
not
to
impair
Wires
by
tightening
Adjusting
knobs
too
much.
Clamp East-West Drive guide
AA952100
firmly
with
3 Screws
CUK2.6xBSA.
Loosen
Adjusting
knobs.
Manipulating Feed plate
AA9522oo,
check
whether
it
still
has
uneven stiffness, irregular
movements
or
play.
(1) In
case
of
uneven stiffness, Wires are
impaired. Replace.
(2) In
case
of
irregular movements, repeat
steps over again
from
11-2-9 (a).
(3) In
case
of
play, repeat steps over again
from
11-2-9 (a).
11-2-10 Assemble Rack
AAB77900
with
3 Screws
3PUK2x6SA.
(See
Fig. 11-11)
a)
By
manipulating
East-West Drive knob,
check
whether
Rack
has
uneven stiffness,
irregular movements
or
play.
b)
If
it
has
stiff
or
erregular movements
or
play, adjust
the
position
of
Rack
AAB779oo.
AA952200
AA952000
"/
eJ
AA95\OO
Gl
I 0 0
0
,
I
/
l
AA877900
3PUK2x6SA
Fig. 11·11
-48
-
