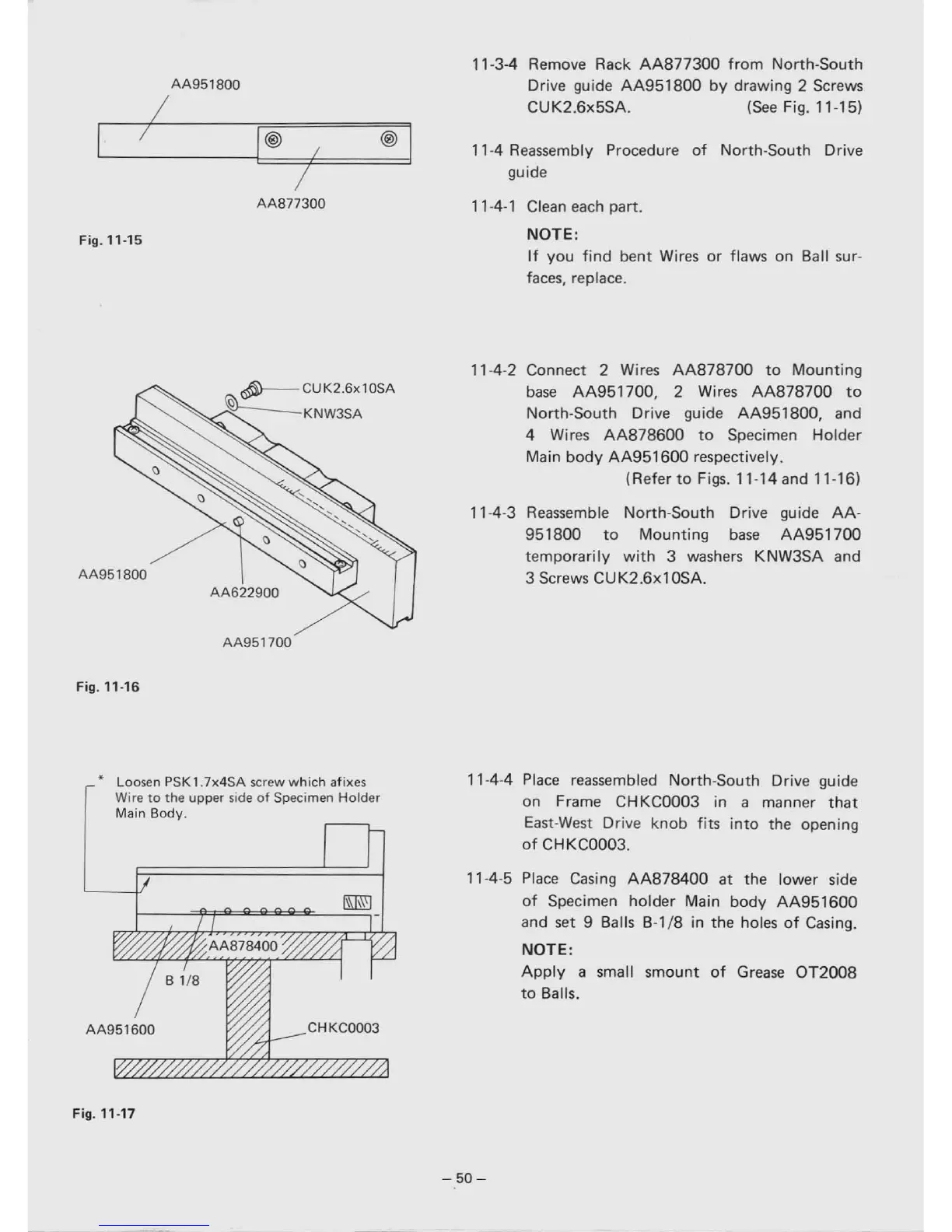

Olympus CH Series - Reassembly Procedure of North-South Drive Guide

AA951800
AA877300
Fig. 11-15
~CUK2.6x10SA
~ -KNW3SA
AA951800
AA622900
AA951700
Fig. 11-16
11-3-4 Remove Rack AA877300 from North-South
Drive guide AA951800 by drawing 2 Screws
CUK2.6x5SA. (See Fig. 11-15)
11-4 Reassembly Procedure of North-South Drive
guide
11-4-1 Clean each part.
NOTE:
If you find bent Wires or flaws on 8all sur-
faces, replace.
11-4-2 Connect 2 Wires AA878700 to Mounting
base AA951700, 2 Wires AA878700 to
North-South Drive guide AA951800, and
4 Wires AA878600 to Specimen Holder
Main body AA951600 respectively.
(Refer to Figs. 11-14and 11-16)
11-4-3 Reassemble North-South Drive guide AA-
951800 to Mounting base AA951700
temporarily with 3 washers KNW3SA and
3 Screws CUK2.6x10SA.
* Loosen PSK1. 7x4SA screw which afixes
Wire to the upper side of Specimen Holder
Main Body.
AA951600
Fig. 11-17
CHKC0003
11-4-4 Place reassembled North-South Drive guide
on Frame CHKC0003 in a manner that
East-West Drive knob fits into the opening
of CHKC0003.
11-4-5 Place Casing AA878400 at the lower side
of Specimen holder Main body AA951600
and set 9 8alls 8-1/8 in the holes of Casing_
NOTE:
Apply a small smount of Grease OT2008
to 8alls.
- 50-
