Olympus CH Series - Page 55

AA951600
CHKC0003
Fig. 11-18
I I
,1---1.,
I I
AA951700

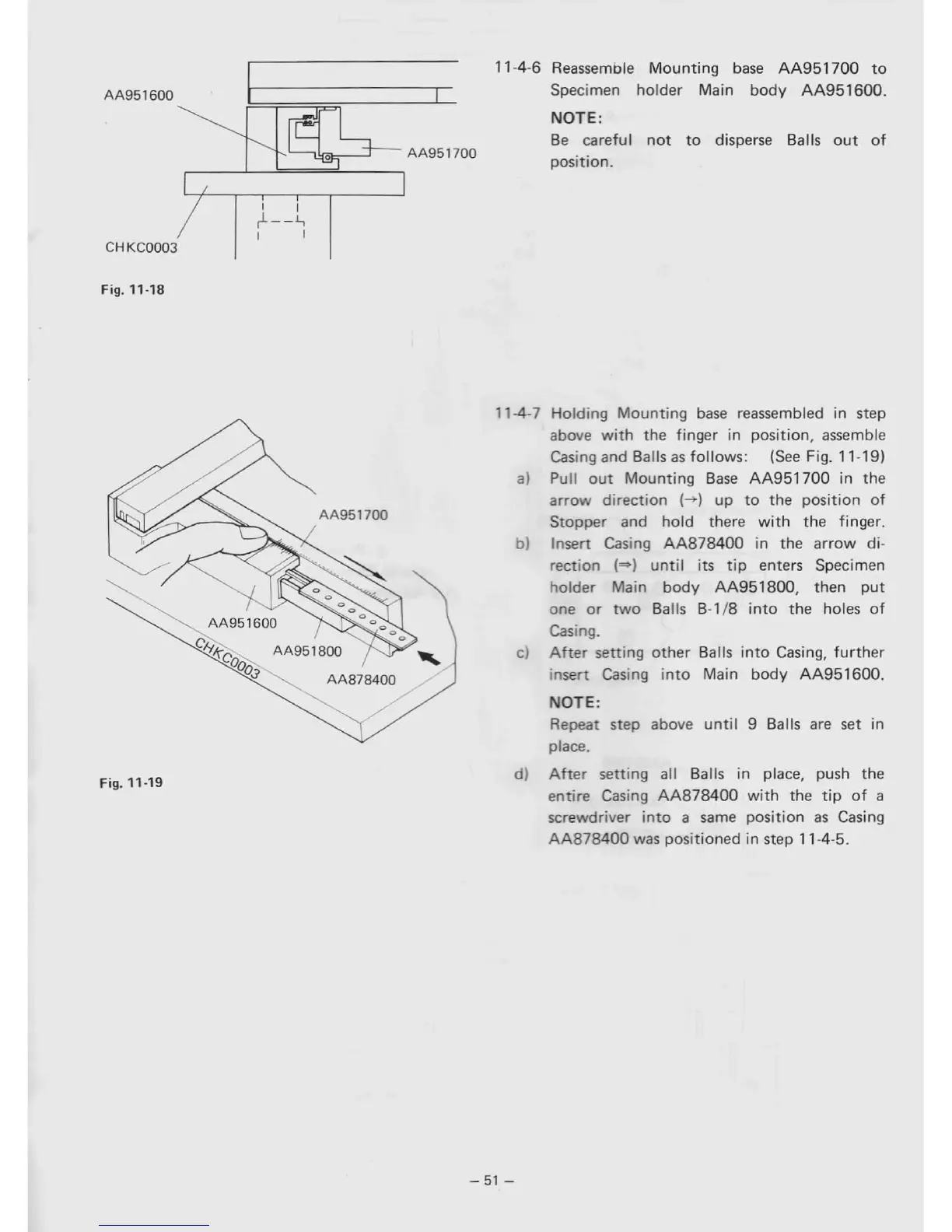

11-4-6 Reassemble Mounting base AA951700 to
Specimen holder Main body AA951600_
NOTE:
Be careful not to disperse Balls out of
position.
Fig. 11-19
AA951600
Cltk:
COO
V,J
AA878400
/
11-4-7 Holding Mounting base reassembled in step
above
with the finger in position, assemble
Casing and Balls
as follows: (See Fig. 11-19)
a) Pull out Mounting Base AA951700 in the
arrow direction (-+) up to the position of
Stopper and hold there with the finger.
b) Insert Casing
AA878400 in the arrow di-
rection
(=) until its tip enters Specimen
holder Main body AA951800, then put
one or two Balls B-l/8 into the holes of
Casing.
c) After setting other Balls into Casing, further
insert Casing into Main body AA951600.
NOTE:
Repeat step above until 9 Balls are set in
place.
d)
After setting all Balls in place, push the
entire Casing AA878400 with the tip of a
screwdriver
into a same position as Casing
AA878400 was positioned in step 11-4-5.
- 51 -
