CHKC0001

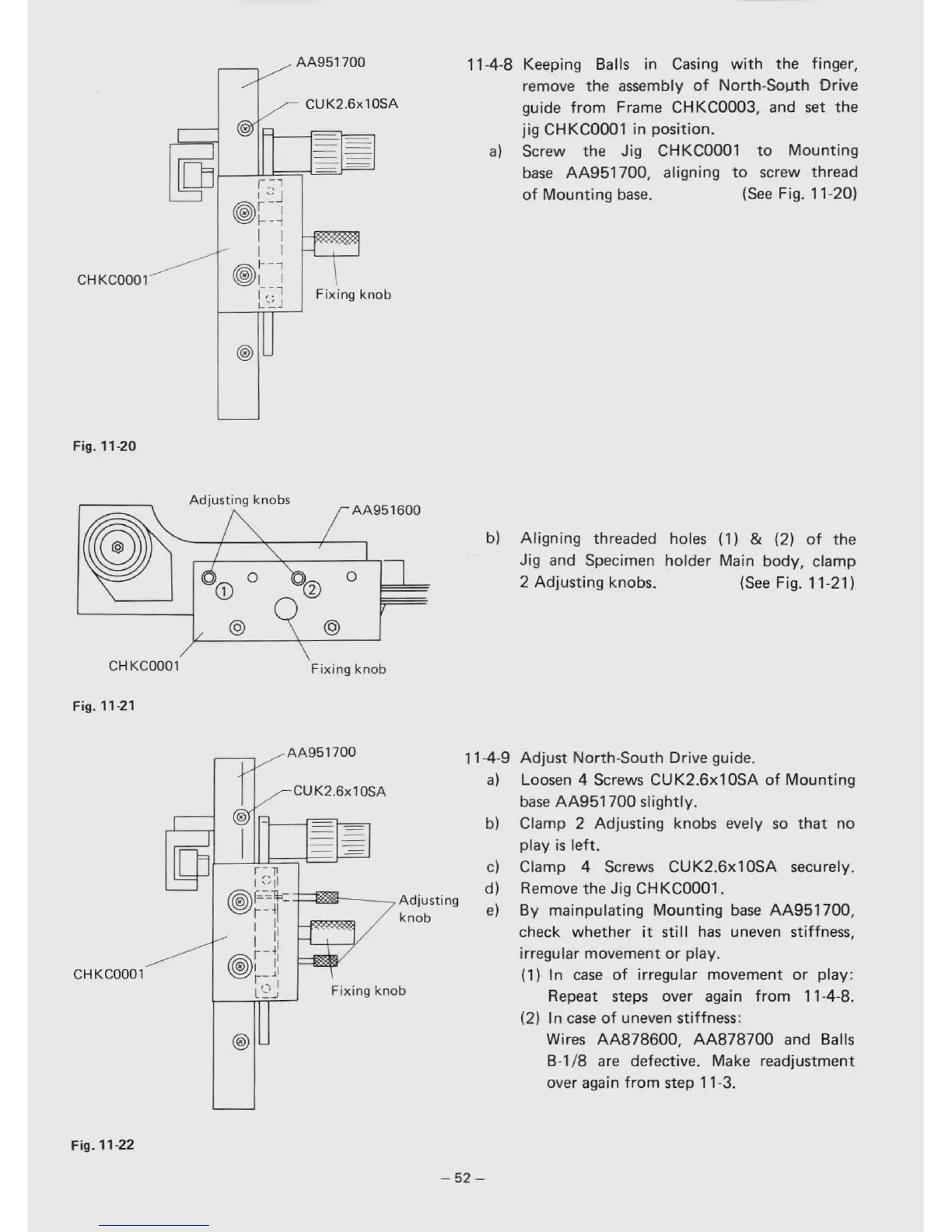

Fig. 11·20
AA951700
CUK2.6xlOSA
11-4-8 Keeping Balls in Casing with the finger,
remove the assembly
of North·So~th Drive
guide from Frame CHKC0003, and set the
jig CHKCOOOl in position.
a) Screw the Jig CHKCOOOl to Mounting
base AA951700, aligning to screw thread
of Mounting base. (See Fig. 11-20)
CHKC0001
Fig. 11·21
Adjusting knobs
AA951600
Fixing knob
b)
Aligning threaded
Jig and Specimen
2 Adjusting knobs.
holes (1)
& (2) of the
holder Main body, clamp
(See Fig. 11·21)
CHKCOOOl
Fig. 11·22
AA951700
CUK2.6xlOSA
'"
--
Fixing knob
11·4·9
a)
b)
c)
d)
e)
-52-
Adjust North·South Drive guide.
Loosen 4 Screws
CUK2.6xlOSA of Mounting
base AA951700 slightly.
Clamp 2 Adjusting knobs evely
so that no
play is left.
Clamp 4 Screws CUK2.6xl0SA securely.
Remove the Jig CHKC0001.
By mainpulating
Mounting base AA951700,
check whether it still has uneven stiffness,
irregular movement
or play.
(1) In
case of irregular movement or play:
Repeat steps over again
from 11-4·8.
(2) In
case of uneven stiffness:
Wires
AA878600, AA878700 and Balls
B-l/8 are defective. Make readjustment
over again
from step 11·3.
