AA951600

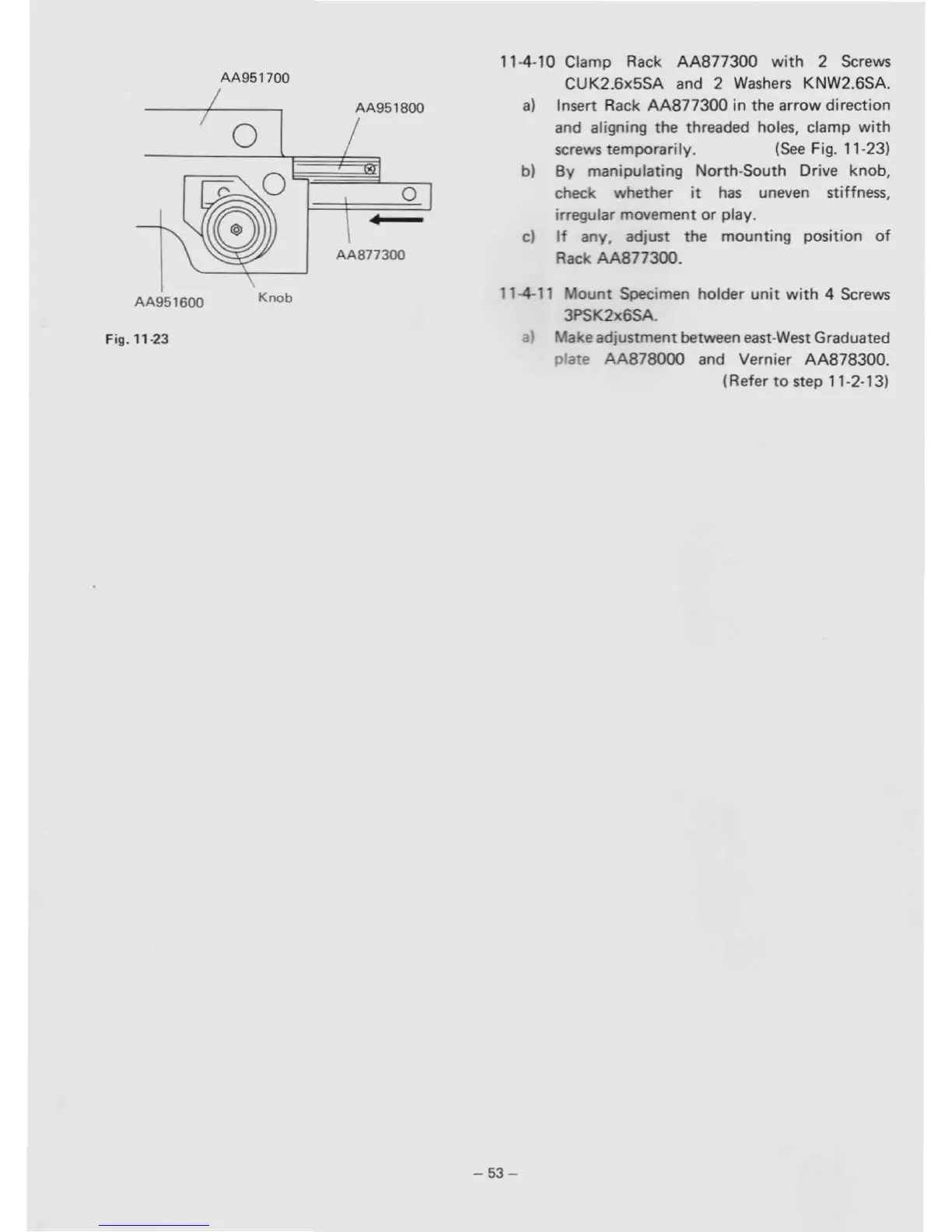

Fig. "·23
AA951700
Knob
AA951800
•
o
•
AA877300
11-4-10 Clamp Rack AA877300 with 2 Screws
CUK2.6x5SA and 2 Washers KNW2.6SA.
a) Insert Rack AA877300 in the arrow direction
and aligning the threaded holes, clamp
with
screws temporarily. (See Fig. 11-23)
b)
8y manipulating North-South Drive knob,
check whether
it has uneven stiffness,
irregular movement
or play.
c) If any, adjust the mounting position of
Rack AA877300_
11-4-11 Mount Specimen holder unit with 4 Screws
3PSK2x6SA.
al Make adjustment between east-West Graduated
plate
AA878000 and Vernier AA878300.
(Refer to step 11-2-13)
- 53-
