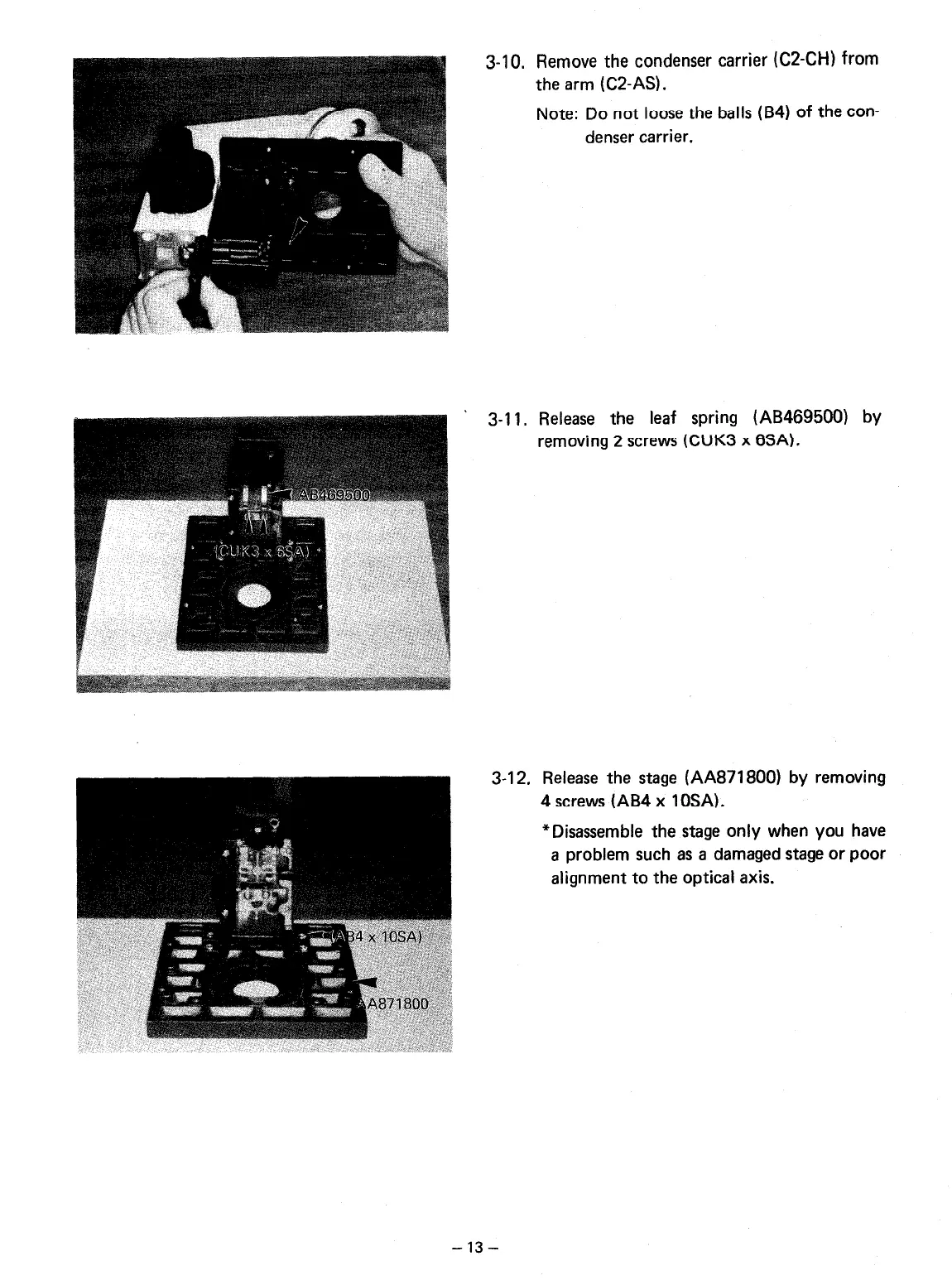

3-11.
3-l 2.
Remove the condenser
the arm (C2-AS).
Note: Do not loose the
denser carrier.
carrier (C2-CH) from
balls (84) of the con-
Release the leaf spring (AB469500)
removing 2 screws (CUK3 x 6SA).
by
Release the stage (AA871800) by removing
4 screws (A84 x 1 OSA).
*Disassemble the stage only when you have
a problem such as a damaged stage or poor
alignment to the optical axis.
