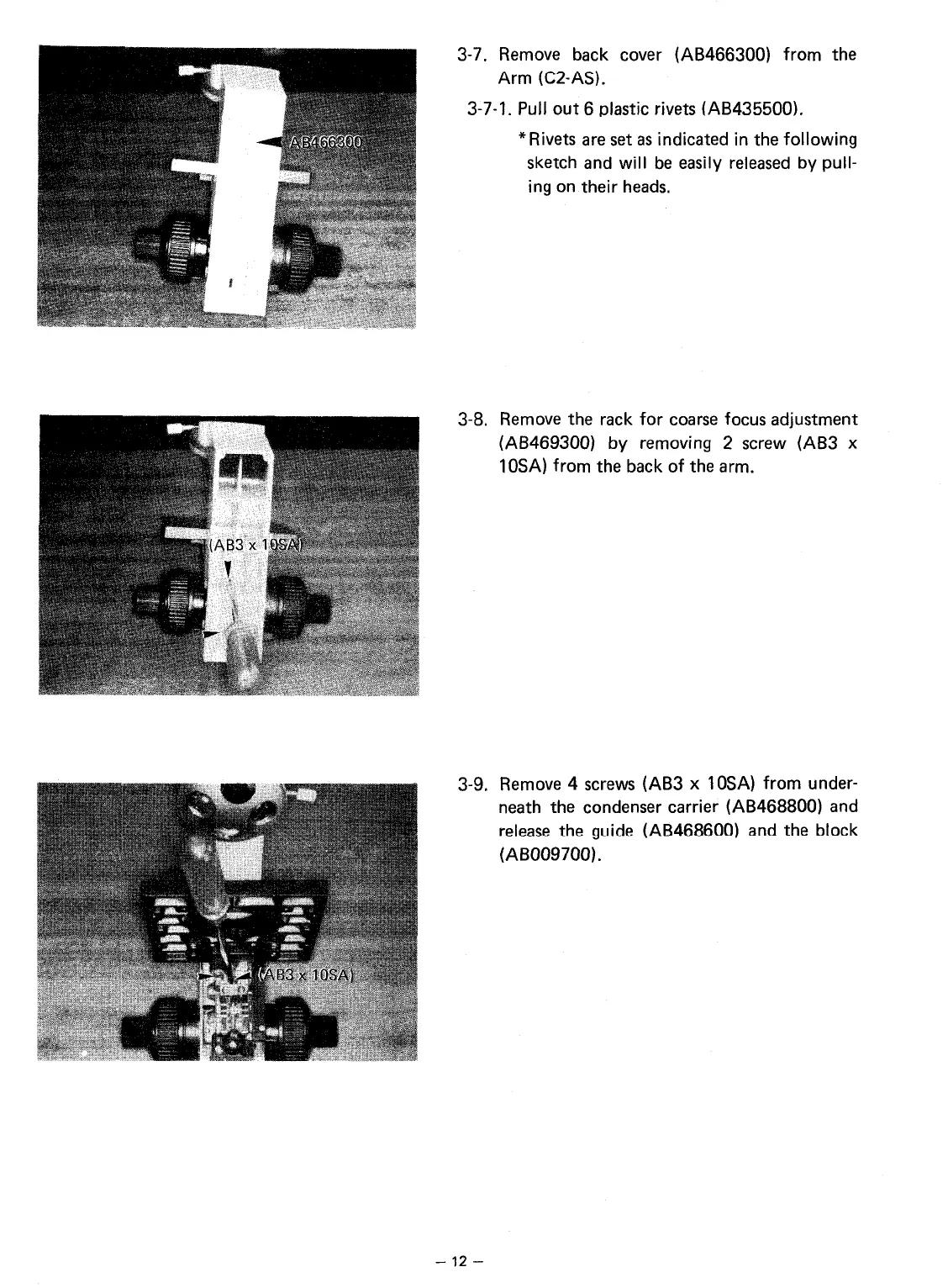

3-7. Remove back cover (A8466300) from the
Arm (C2-AS).
3-7-l. Pull out 6 plastic rivets (A8435500).
*Rivets are set as indicated in the following
sketch and will be easily released by pull-
ing on their heads.
3-8.
3-9.
Remove the rack for coarse focus adjustment
(A8469300) by removing 2 screw (A83 x
IOSA) from the back of the arm.
Remove 4 screws (A83 x 10SA) from under-
neath the condenser carrier (A8468800) and
release the guide (A8468600) and the block
(A8009700).
-
12
-
