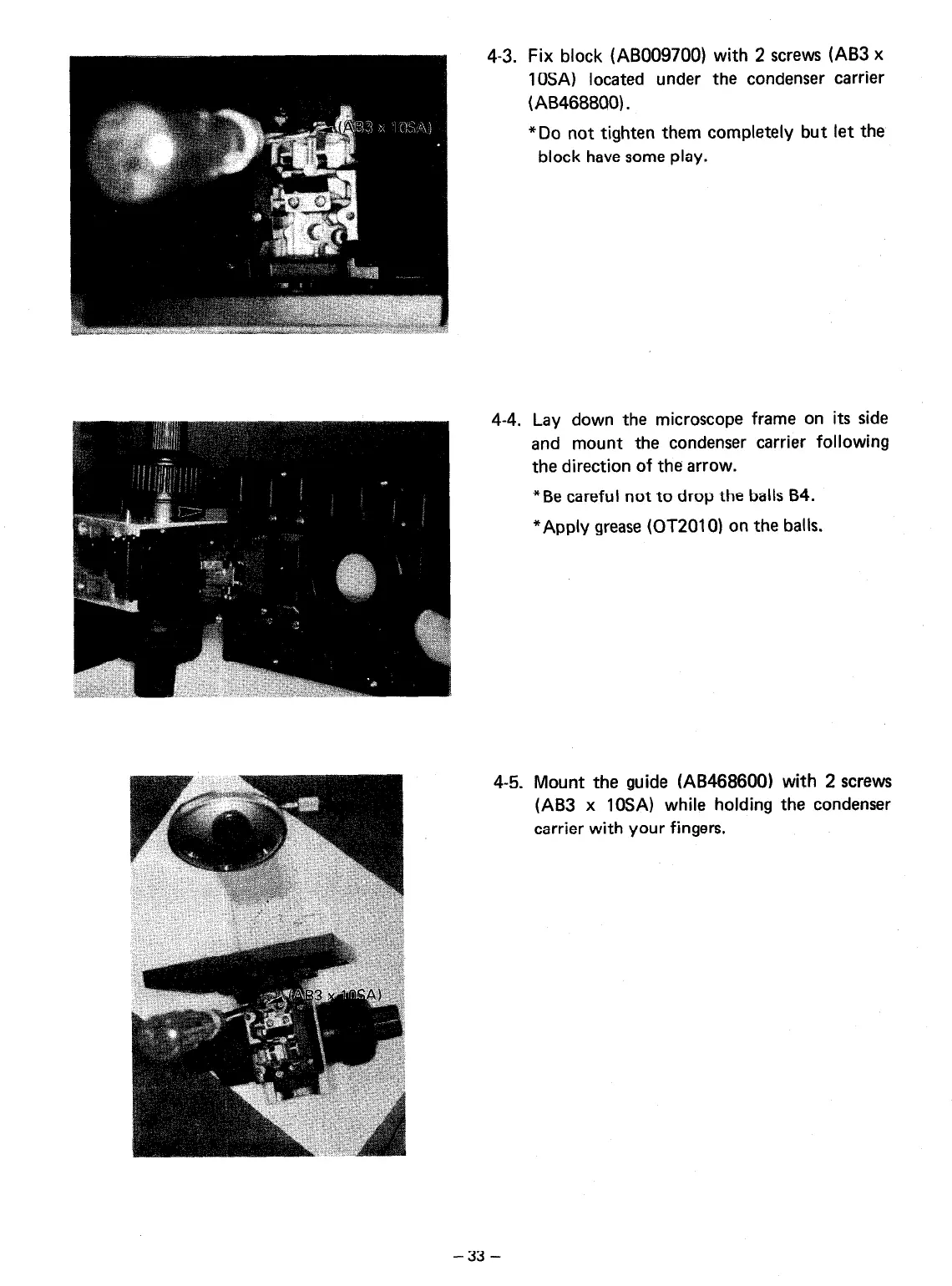

4-3. Fix block (AB009700) with 2 screws (AB3 x
10SA) located under the condenser carrier
(AB468800).
*Do not tighten them completely but let the
block have some play.
4-4.
4-5.
Lay down the microscope frame on its side
and mount the condenser carrier following
the direction of the arrow.
*Be careful not to drop the balls B4.
*Apply grease (OT2010) on the balls.
Mount the guide (AB468600) with 2 screws
(AB3 x 1OSA) while holding the condenser
carrier with your fingers.
