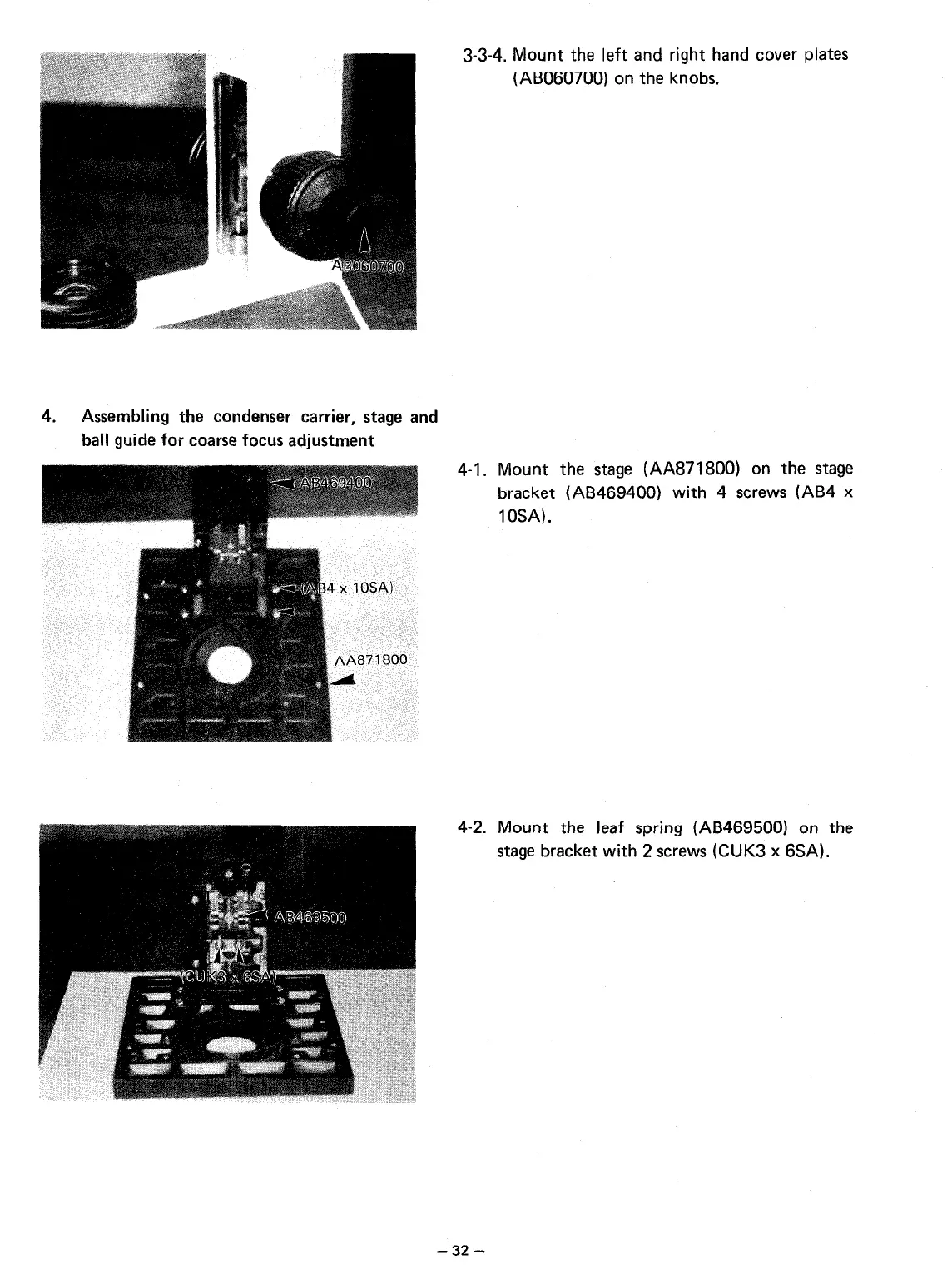

Olympus CH2 Series - Assembling the condenser carrier, stage and focusing unit

3-3-4.
Mount the left and right hand cover plates
(AB060700) on the knobs.
4. Assembling the condenser carrier, stage and
ball guide for coarse focus adjustment
4-1. Mount the stage (AA871 800) on the stage
bracket (AB469400) with 4 screws (AB4 x
1OSA).
4-2.
Mount the leaf spring (AB469500) on the
stage bracket with 2 screws (CUK3 x 6SA).
-32 -
