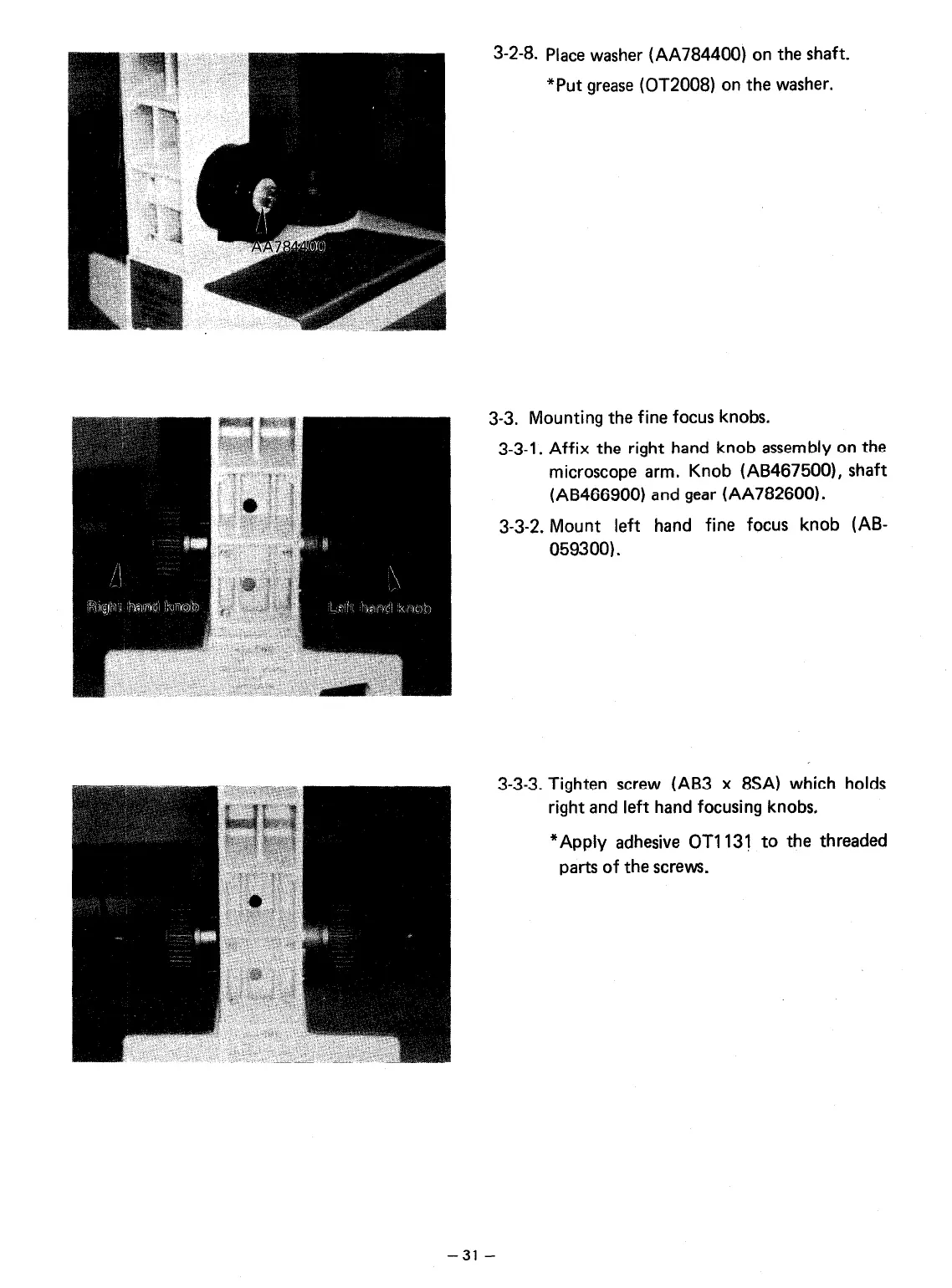

3-2-8.
Place washer (AA784400) on the shaft.
*Put grease (OT2008) on the washer.
3-3. Mounting the fine focus knobs.
3-3-l. Affix the right hand knob assembly on the
microscope arm. Knob (AB467500), shaft
(AB466900) and gear (AA782600).
3-3-2. Mount left hand fine focus knob (AB-
059300).
3-3-3.
Tighten screw (AB3 x 8SA) which
right and left hand focusing knobs.
*Apply adhesive OT113j to the thr
parts of the screws.
holds
.eaded
-31 -

Olympus CH2 Series Specifications

General

Type	Biological Microscope
Illumination	Halogen lamp 6V 20W
Stage	Mechanical stage with slide holder
Focus	Coaxial coarse and fine focusing knobs
Condenser	Abbe condenser (NA 1.25) with iris diaphragm
Magnification	40x to 1000x
Head	Binocular or trinocular
Power Supply	AC 100-240V, 50/60Hz
Objective Lenses	Achromat objectives
Eyepiece	WF10x/18mm
