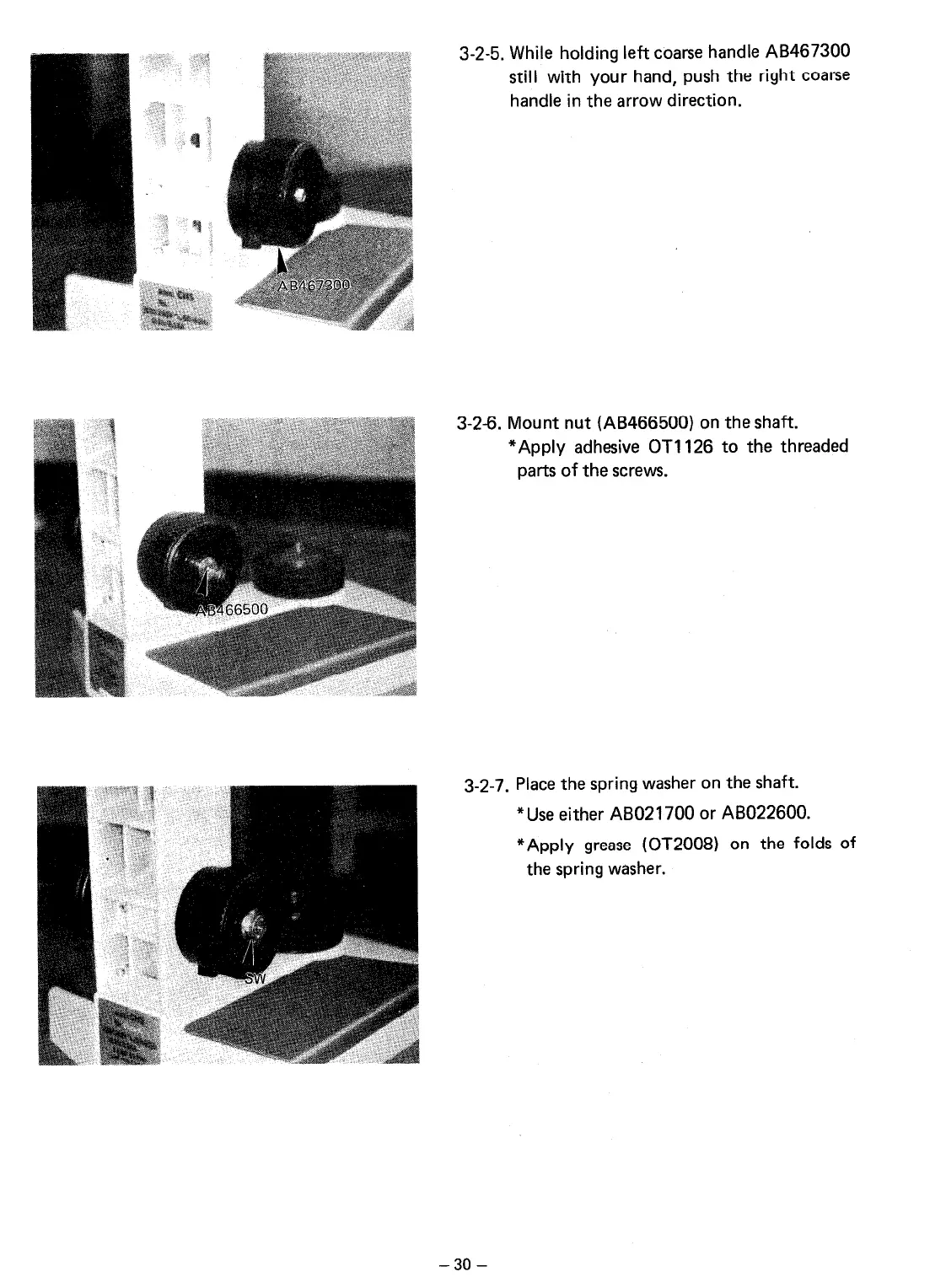

3-2-5. While holding left coarse handle A8467300
still with your hand, push the right coarse
handle in the arrow direction.
3-26.
Mount nut (AB466500) on the shaft.
*Apply adhesive OT’ll26 to the threaded
parts of the screws.
3-2-7.
Place the spring washer on the shaft.
*Use either AB021700 or AB022600.
*Apply grease (OT2008) on the folds of
the spring washer.
-30 -
